Can anyone explain this?

[Kiyoshi]

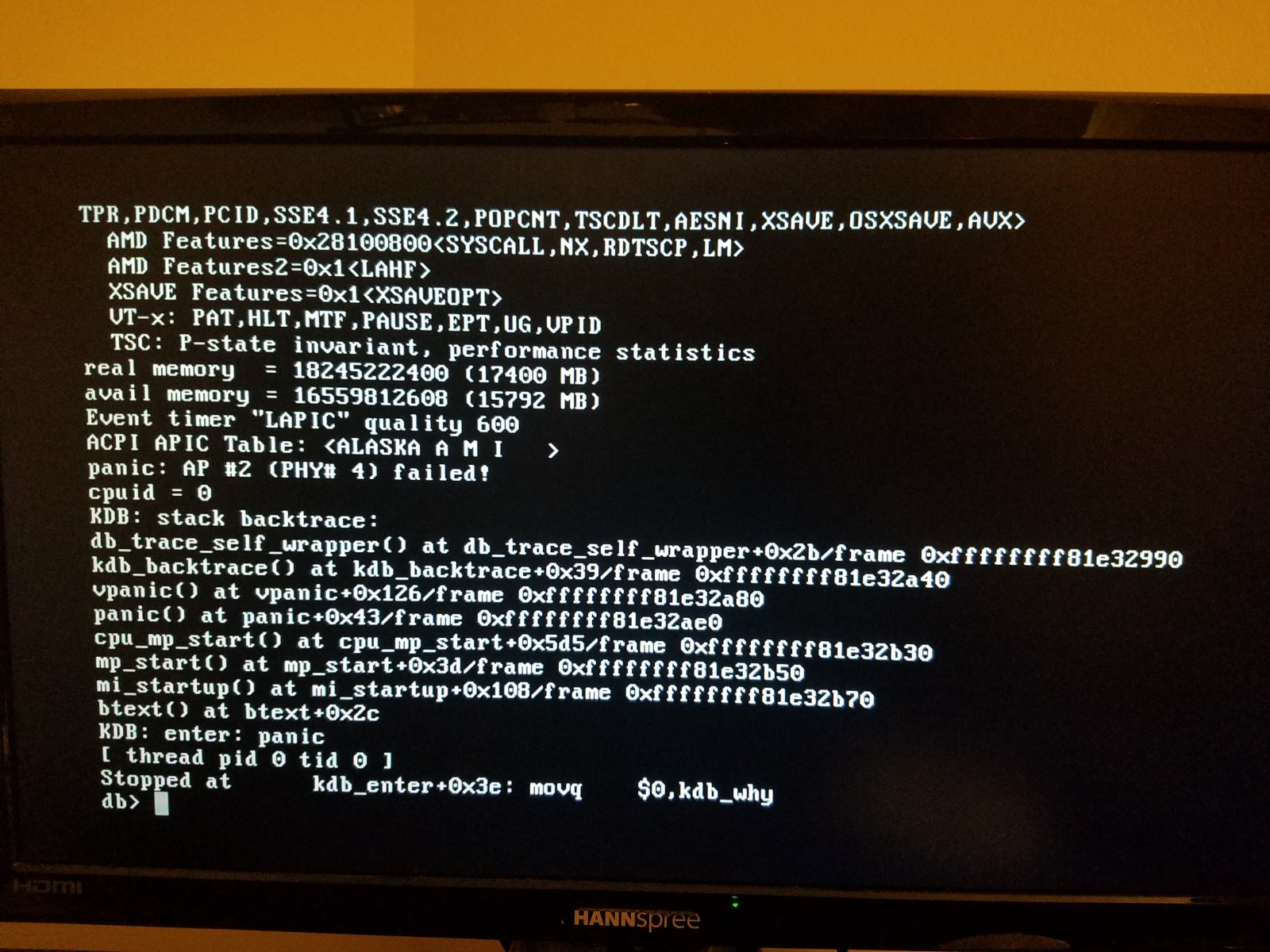

So I recently built a new rig just to be a media server.. I've played with FreeNAS before on my other two systems with no problems. but when I tried to install it on the new system. this happened.. can somebody explain what this means? I'm lost..



[danb35]

Hardware? FreeNAS version? Other information that the forum rules (which you said you read and agreed to when you registered today) require?



[SweetAndLow]

Some kind of hardware failure or unsupported hardware. Fix your hardware.

Sent from my Nexus 5X using Tapatalk



[Kiyoshi]

Hardware? FreeNAS version? Other information that the forum rules (which you said you read and agreed to when you registered today) require?

I'm using the most current version of FreeNAS I have 16 gigs of RAM using I5 2500 k it works and installed on my i7 2600 k no problem

Sent from my SM-G935R4 using Tapatalk



[Kiyoshi]

So I turned off all my cores except one and it worked why is that?

Sent from my SM-G935R4 using Tapatalk



[SweetAndLow]

I'm using the most current version of freenas I have 16 gigs of RAM using I5 2500 k it works and installed on my i7 2600 k no problem

Sent from my SM-G935R4 using Tapatalk

when we ask for hardware specs you we this, i copied this from the forum rules that you read.

• motherboard make and model
• CPU make and model
• RAM quantity
• hard drives, quantity, model numbers, and RAID configuration
• hard disk controllers
• network cards



[Stux]

Is your CPU overclocked?



[wblock]

It kind of looks like you have 17G of RAM. Which implies mismatched memory to me, so I'd remove the littler one and try again.



[Kiyoshi]

Is your CPU overclocked?

Nope

Sent from my SM-G935R4 using Tapatalk



[Kiyoshi]

It kind of looks like you have 17G of RAM. Which implies mismatched memory to me, so I'd remove the littler one and try again.

I have 4 2 gig sticks two different brands I've tried every combination

Sent from my SM-G935R4 using Tapatalk



[Kiyoshi]

It seems that it doesn't like my CPU I can get it to work if I only used one core.. anything more then one Core it doesn't boot..

Sent from my SM-G935R4 using Tapatalk



[wblock]

The SuperMicro docs I've looked at lately are very specific about not mixing different sizes or even models of memory.

(Certainly they were not specific about what I really did need to find out, but they were specific about memory.)



[Douglas Santos]

You have entered the kernel debugger, something bad happened at the kernel level.
