ARC hit ratio all over the place after upgrading memory

Status
Not open for further replies.
Joined
Jul 28, 2017
Messages
33

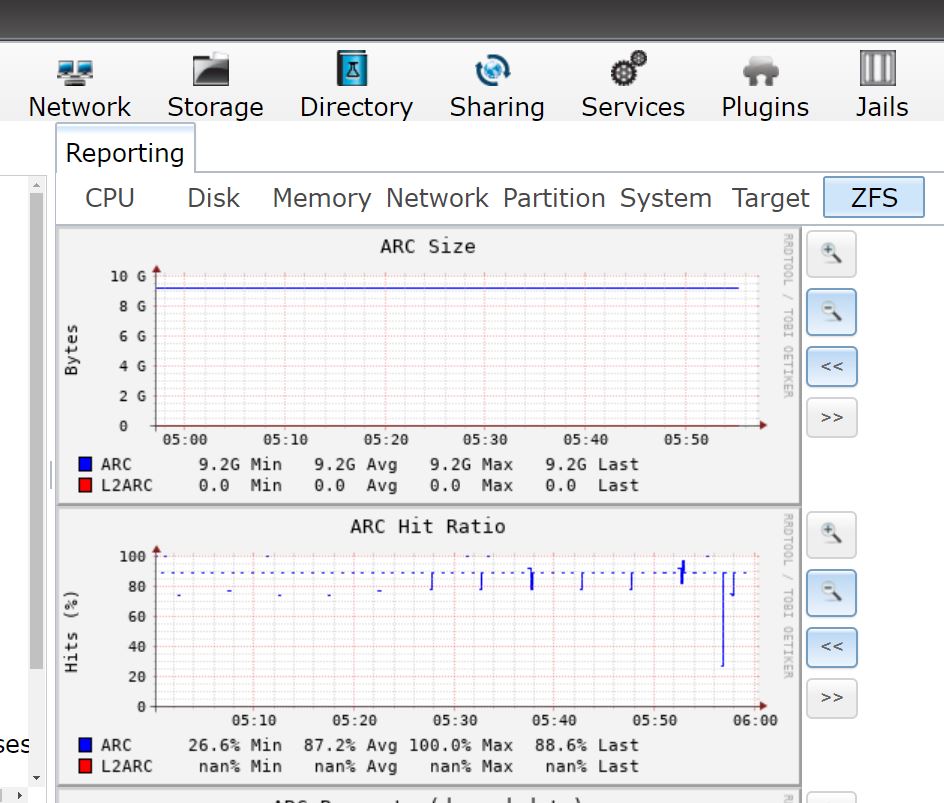

Hi, I've upgraded the memory in my home NAS from 8GB to 2x8GB recently. With the old config my hit ratio was stable around 60-70%. After the upgrade the hit ratio is very erratic and jumps all over the place from 0-100%.
Any ideas or suggestions how to improve the situation?


Attachments

  • arc.png
    712.9 KB · Views: 305

BigDave

FreeNAS Enthusiast
Joined
Oct 6, 2013
Messages
2,479
I'm wondering if the ram you have added has been tested and is fully functional???
take out the stick you added and see if your hit ratio goes back to "normal".


DrKK

FreeNAS Generalissimo
Joined
Oct 15, 2013
Messages
3,630
No, I have some ridiculous thing as well, similar. On my FN11 box, which I use just for backup/replication, the ARC hit ratio shows absurd fandango---worse than his---I'm convinced it's how rrdtool is being used. I also have 16GB on the box in question with the weird results of ARC hit ratio.

I wasn't going to say anything until update 2.

generate


DrKK

FreeNAS Generalissimo
Joined
Oct 15, 2013
Messages
3,630

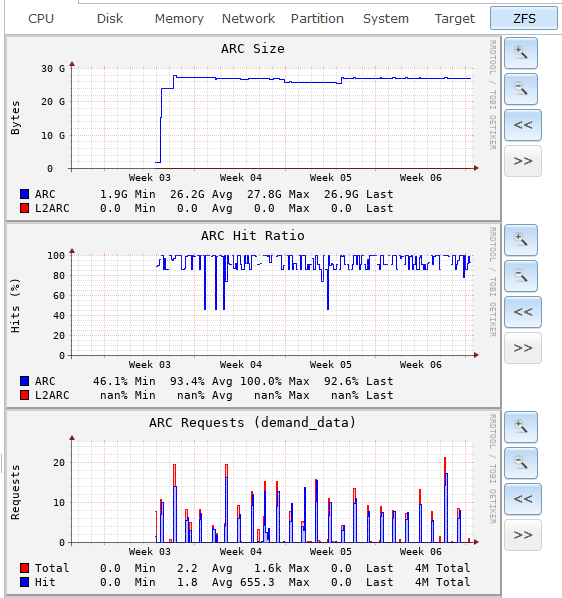

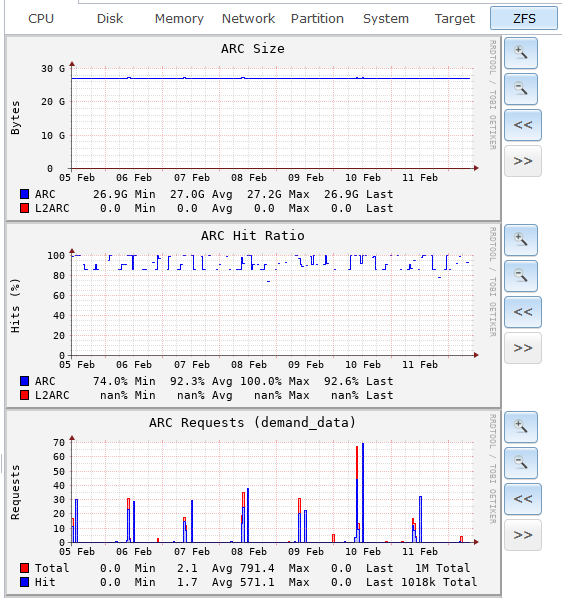

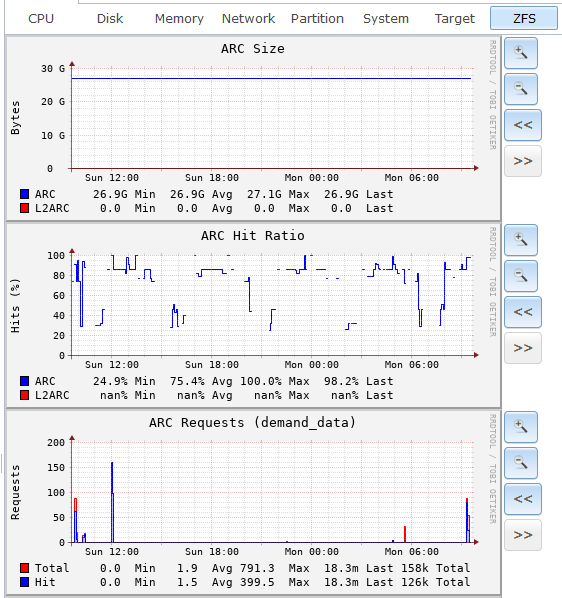

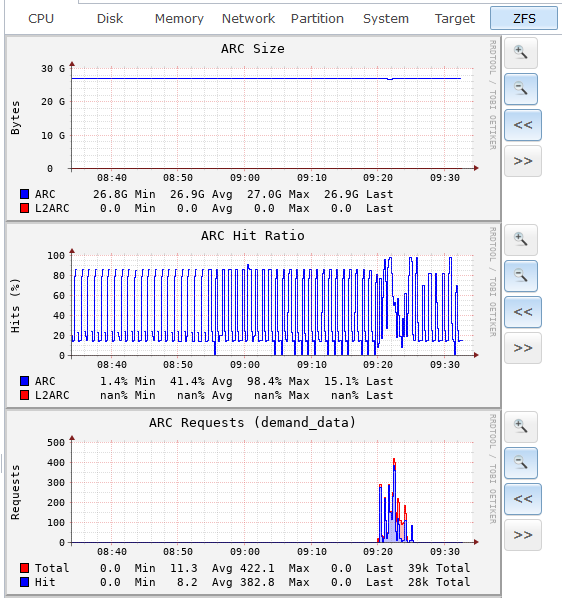

also, fun fact:

I don't need to take screen shots to upload images, I just discovered, to the forum. All you have to do is right-click, view image, then right click, copy image, and then you can past that straight into the textual input box on the forum. I suppose I'm the last to know that.


DrKK

FreeNAS Generalissimo
Joined
Oct 15, 2013
Messages
3,630
Also, OP, if I may ask, if you have 16GB of RAM, why does your ARC seem to stop itself at 6-7GB? Do you have vfs.zfs.arc_max set from before, perhaps?


MrToddsFriends

Documentation Browser
Joined
Jan 12, 2015
Messages
1,338
No, I have some ridiculous thing as well, similar. On my FN11 box, which I use just for backup/replication, the ARC hit ratio shows absurd fandango---worse than his---I'm convinced it's how rrdtool is being used. I also have 16GB on the box in question with the weird results of ARC hit ratio.

I'm possibly seeing the same effects on my machine with 32GB RAM since upgrading to 11.1-RELEASE. It's running now 11.1-U1 for about 24 days. Unfortunately I can't see the image(s) you inserted with the "no screenshot" method.








Last edited:

BigDave

FreeNAS Enthusiast
Joined
Oct 6, 2013
Messages
2,479
No, I have some ridiculous thing as well, similar. On my FN11 box, which I use just for backup/replication, the ARC hit ratio shows absurd fandango---worse than his---I'm convinced it's how rrdtool is being used. I also have 16GB on the box in question with the weird results of ARC hit ratio.

I wasn't going to say anything until update 2.

generate
Code:
Build FreeNAS-11.1-U1
Platform Intel(R) Xeon(R) CPU E3-1230 V2 @ 3.30GHz
Memory 16317MB
System Time Mon, 12 Feb 2018 06:04:16 -0600
Uptime 6:04AM up 8 days, 11:59, 0 users

I knew I should have waited to update... ;)
Between this and the log spam, it's just too much for my OCD :p


MrToddsFriends

Documentation Browser
Joined
Jan 12, 2015
Messages
1,338
Possibly we are seeing the consequences of the fixes made while processing bug #25966, but that's just a guess.

Last edited:

millst

Contributor
Joined
Feb 2, 2015
Messages
141

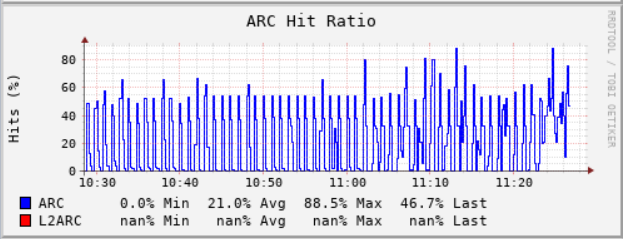

I noticed the same thing on my system sometime after the update to 11.1U1 (straight from 9.10).

-tm


Attachments

  • architratio.png
    75 KB · Views: 257

DrKK

FreeNAS Generalissimo
Joined
Oct 15, 2013
Messages
3,630
I knew I should have waited to update... ;)
I hear you. That's why I have not even remotely considered updating my main 9.10 main NAS box, and only am puttering around with 11 on my backup system. I've learned the hard way. My main NAS has to be operating completely flawlessly, with no log spam, nothing, or I have an OCD meltdown as well.


Jailer

Not strong, but bad
Joined
Sep 12, 2014
Messages
4,977
My main NAS has to be operating completely flawlessly, with no log spam, nothing, or I have an OCD meltdown as well.
It's nice to know I'm not alone.

This is starting to sound like a support group........


DrKK

FreeNAS Generalissimo
Joined
Oct 15, 2013
Messages
3,630
It's nice to know I'm not alone.

This is starting to sound like a support group........
It's been a support group for years.

Joined
Jul 28, 2017
Messages
33
Also, OP, if I may ask, if you have 16GB of RAM, why does your ARC seem to stop itself at 6-7GB? Do you have vfs.zfs.arc_max set from before, perhaps?
That's actually an interesting question, checked the value just now and it shows 15GB so no idea why it's so low in the statistics tab

vfs.zfs.arc_max: 15538454528

Any idea how to fix that? In the statistics looks like it's capped at 7GB which would fit perfectly into the usual cap of "available - 1GB" from before I upgraded.


DrKK

FreeNAS Generalissimo
Joined
Oct 15, 2013
Messages
3,630
Copy some DVD movie you haven't watched since the reboot mp4 to /dev/null, see if that moves the needle.
