AHCI Reset

[foefyre]

Hello im trying to figure out why plex keeps kicking a brand new drive i got from newegg, I bought it to replace a drive that was slowly dying now that its caput it freenas just keeps giving me the error AHCI reset: device not ready after 31000ms. If you needs logs i dont mind i just dont know what to look into to fix it.



[m0nkey_]

Have you run a SMART test on the drive? Please post the output of smartctl -a /dev/adaX using the [ code ] tags. Replace adaX with the device ID.



[foefyre]

this took a minute to load but as you can see its a brand new drive and everything with only 7 hours on log, I just dont know how to keep freenas from dropping the drive after a few min.

Conveyance self-test routine
recommended polling time: ( 2) minutes.
SCT capabilities: (0x1085) SCT Status supported.

SMART Attributes Data Structure revision number: 10
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME FLAG VALUE WORST THRESH TYPE UPDATED WHEN_FAILED RAW_VALUE
1 Raw_Read_Error_Rate 0x000f 100 100 006 Pre-fail Always - 201776
3 Spin_Up_Time 0x0003 094 094 000 Pre-fail Always - 0
4 Start_Stop_Count 0x0032 100 100 020 Old_age Always - 29
5 Reallocated_Sector_Ct 0x0033 093 093 010 Pre-fail Always - 9528
7 Seek_Error_Rate 0x000f 100 253 030 Pre-fail Always - 17179874606
9 Power_On_Hours 0x0032 100 100 000 Old_age Always - 7
10 Spin_Retry_Count 0x0013 100 100 097 Pre-fail Always - 0
12 Power_Cycle_Count 0x0032 100 100 020 Old_age Always - 29
183 Runtime_Bad_Block 0x0032 100 100 000 Old_age Always - 0
184 End-to-End_Error 0x0032 100 100 099 Old_age Always - 0
187 Reported_Uncorrect 0x0032 100 100 000 Old_age Always - 0
188 Command_Timeout 0x0032 097 097 000 Old_age Always - 55835426829
189 High_Fly_Writes 0x003a 100 100 000 Old_age Always - 0
190 Airflow_Temperature_Cel 0x0022 074 060 045 Old_age Always - 26 (Min/Max 25/26)
191 G-Sense_Error_Rate 0x0032 100 100 000 Old_age Always - 0
192 Power-Off_Retract_Count 0x0032 100 100 000 Old_age Always - 29
193 Load_Cycle_Count 0x0032 100 100 000 Old_age Always - 33
194 Temperature_Celsius 0x0022 026 040 000 Old_age Always - 26 (0 25 0 0 0)
197 Current_Pending_Sector 0x0012 098 098 000 Old_age Always - 328
198 Offline_Uncorrectable 0x0010 098 098 000 Old_age Offline - 328
199 UDMA_CRC_Error_Count 0x003e 200 200 000 Old_age Always - 0
240 Head_Flying_Hours 0x0000 100 253 000 Old_age Offline - 5 (113 84 0)
241 Total_LBAs_Written 0x0000 100 253 000 Old_age Offline - 322708
242 Total_LBAs_Read 0x0000 100 253 000 Old_age Offline - 119468

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
No self-tests have been logged. [To run self-tests, use: smartctl -t]

SMART Selective self-test log data structure revision number 1
SPAN MIN_LBA MAX_LBA CURRENT_TEST_STATUS
1 0 0 Not_testing
2 0 0 Not_testing
3 0 0 Not_testing
4 0 0 Not_testing
5 0 0 Not_testing
Selective self-test flags (0x0):
After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.



[foefyre]

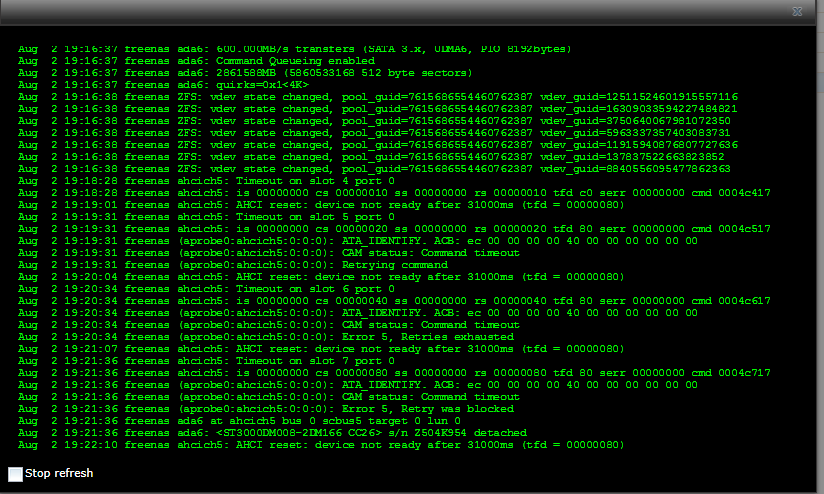

this is whats outputting once i plugged the drive in, the system wont even boot if its in at startup.



[foefyre]

Weird thing, I loaded a backup of 9.10 and its not having ANY issues. Should 11 (stable) be acting up and dropping the drives like it is?
