Updating Replication Task Through API Clears Hostname & SSH Key

[irTwit]

My experience with the API and python is a few hours, there is a good chance I may be at fault.

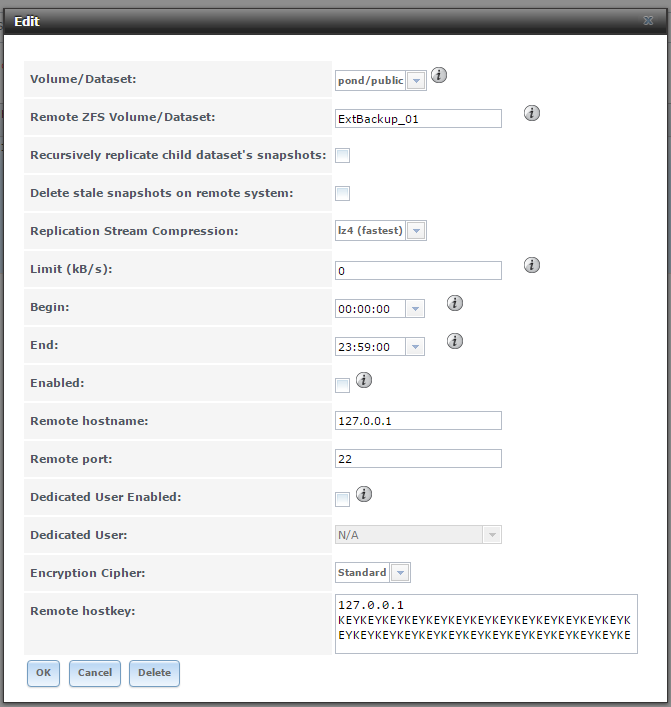

Enabling and disabling a replication task through the web interface doesn't clear the hostname and SSH key but using the API update does.
http://api.freenas.org/resources/storage.html#id9

Build: FreeNAS-9.3-STABLE-201511040813
Hardware: ASRock C226WS | Intel Xeon E3-1275 v3 | KINGSTON 32GB ECC DDR3 RAM | SAS9211-8i | 2x WD Red 2TB, 2x Hitachi Deskstar 5K3000 2TB | Raidz2

I have one dummy replication task configured and can get that with the python script below.

Code:

CODE:
print requests.get(
    'http://nas/api/v1.0/storage/replication/',
    auth=('root', 'password'),
    headers={'Content-Type': 'application/json'}
).text

RESULT:
{
    "id": 1,
    "repl_begin": "00:00:00",
    "repl_compression": "lz4",
    "repl_enabled": false,
    "repl_end": "23:59:00",
    "repl_filesystem": "pond/public",
    "repl_followdelete": false,
    "repl_lastsnapshot": "",
    "repl_limit": 0,
    "repl_remote_cipher": "standard",
    "repl_remote_dedicateduser": null,
    "repl_remote_dedicateduser_enabled": false,
    "repl_remote_hostkey": "127.0.0.1 KEYKEYKEYKEYKEYKEYKEYKEYKEYKEYKEYKEYKEYKEYKEYKEYKEYKEYKEYKEYKEYKEYKEYKEYKEYKEYKE",
    "repl_remote_hostname": "127.0.0.1",
    "repl_remote_port": 22,
    "repl_status": "Failed: cannot open 'ExtBackup_01/public': dataset does not exist\n",
    "repl_userepl": false,
    "repl_zfs": "ExtBackup_01"
}

I then try to update the task through the API as shown in the documentation.

Code:

CODE:
print requests.put('http://nas/api/v1.0/storage/replication/1/',
    auth=('root', 'password'),
    data=json.dumps({"repl_enabled":"true"}),
    headers={'Content-Type': 'application/json'}
).text

RESULT:
{"repl_remote_cipher": ["This field is required."]}

For some reason "repl_remote_cipher" is required. Cipher was already set. Ok, now again with "repl_remote_cipher".

Code:

CODE:
print requests.put('http://nas/api/v1.0/storage/replication/1/',
    auth=('root', 'password'),
    data=json.dumps({"repl_enabled":"true","repl_remote_cipher":"standard"}),
    headers={'Content-Type': 'application/json'}
).text

RESULT:
{
    "id": 1,
    "pk": "1",
    "repl_begin": "00:00:00",
    "repl_compression": "lz4",
    "repl_enabled": true,
    "repl_end": "23:59:00",
    "repl_filesystem": "pond/public",
    "repl_followdelete": false,
    "repl_lastsnapshot": "",
    "repl_limit": 0,
    "repl_remote_cipher": "standard",
    "repl_remote_dedicateduser": null,
    "repl_remote_dedicateduser_enabled": false,
    "repl_remote_hostkey": "",
    "repl_remote_hostname": "",
    "repl_remote_port": 22,
    "repl_status": "Failed: cannot open 'ExtBackup_01/public': dataset does not exist\n",
    "repl_userepl": false,
    "repl_zfs": "ExtBackup_01"
}

Task is now enabled ("repl_enabled": true) as shown in the result above and in the web interface but the hostname and key are gone.

Is this a bug or am I executing this wrong?

Also the API documentation lists repl_remote_cipher as boolean.

• repl_remote_cipher (boolean) – encryption cipher to use (standard, fast, disabled)



[depasseg]

The Cipher issue might be related to this bug: https://bugs.freenas.org/issues/12379



[dlavigne]

And a new bug should be created for the API doc issue. Please create one at bugs.freenas.org and post the issue number here.



[irTwit]

The Cipher issue might be related to this bug: https://bugs.freenas.org/issues/12379

Yeah, I saw that post in the forums. I have experience the same issue.



[irTwit]

Bug Report for Documentation Typo: https://bugs.freenas.org/issues/12435

Bug Report for API Replication Update Removing Hostname & Key: https://bugs.freenas.org/issues/12454
