Storage doesn't add up?

Status
Not open for further replies.

patrick sullivan

Contributor
Joined
Jun 8, 2014
Messages
117

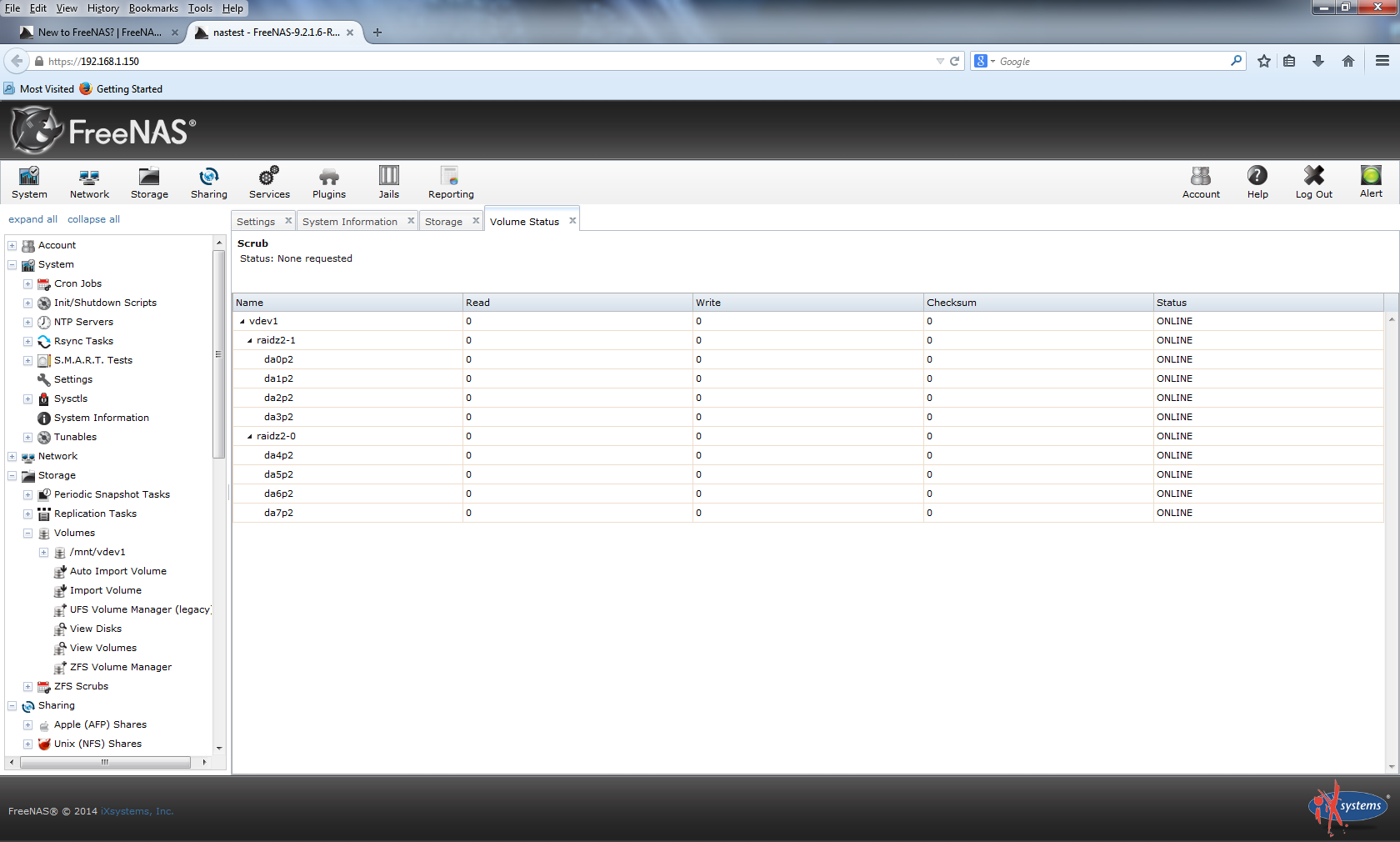

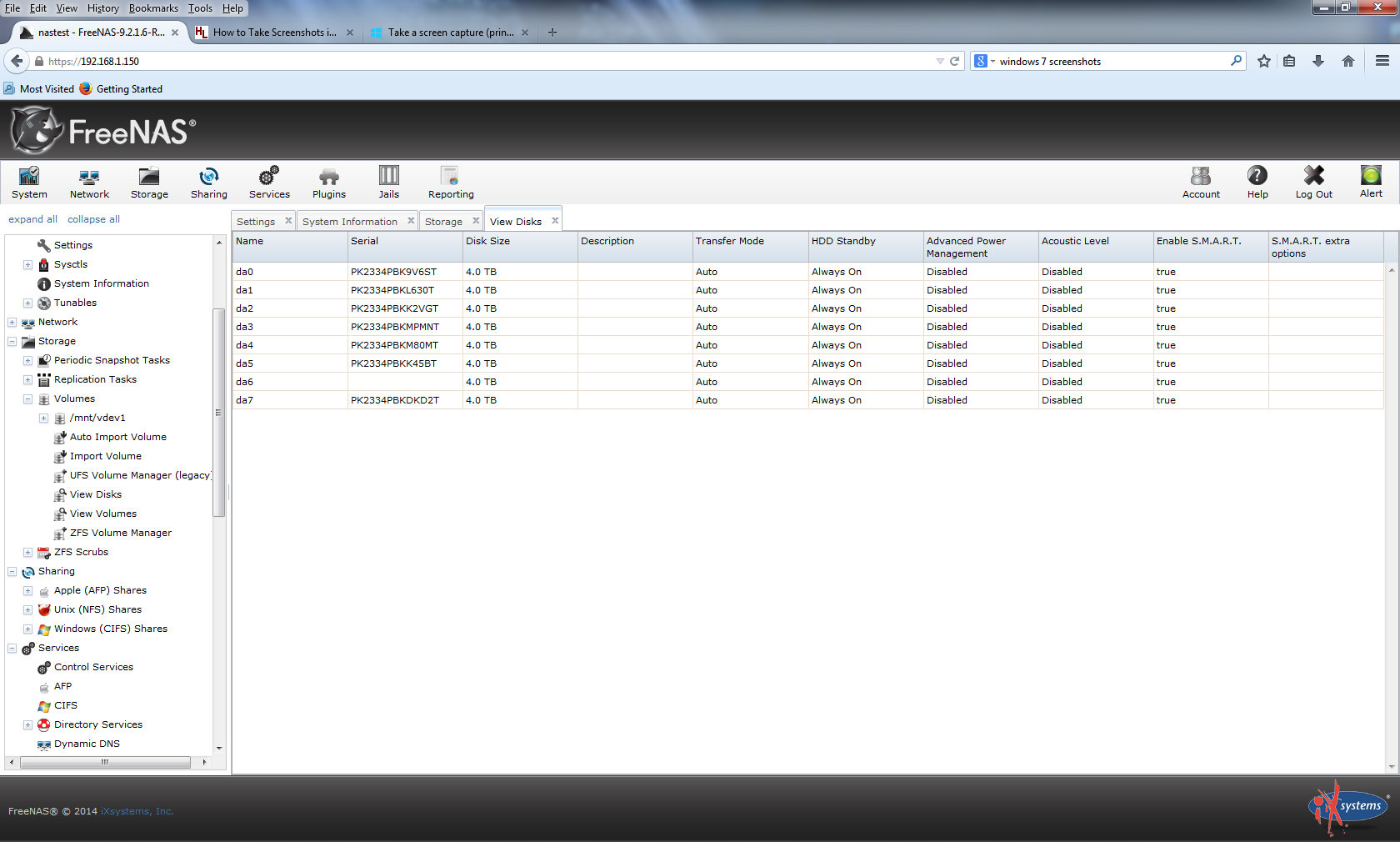

I thought I set up a ZFS RAIDZ with 8 disks. I realize that two are for redundancy, but that should leave 6 that are for storage, correct? How can I tell what was set up in ZFS Volume manager?





Last edited:

cyberjock

Inactive Account
Joined
Mar 25, 2012
Messages
19,525
You've got two vdevs that are RAIDZ2, so you have only 4 disks of data and 4 disks of redundancy. 4.0TB formats to 3.72TB in capacity. Multiply that by 4 and you get 14.88TB. Of course you have a bunch of data there already which has made the available size smaller.

I'd say that if you aren't happy with the size the reason is because you have two vdevs. ;)


patrick sullivan

Contributor
Joined
Jun 8, 2014
Messages
117
Oppps. So, I should backup everything, and start over? I am assuming there is no way to combine my two vdevs into one? I want them all in one volume.

Last edited:

diehard

Contributor
Joined
Mar 21, 2013
Messages
162
Oppps. So, I should backup everything, and start over? I am assuming there is no way to combine my two vdevs into one? I was them all in one volume.
Yes you will have to re-create the pool. If the space for you current is fine, you could make the pool striped mirrors (RAID 10) and get more performance with the same capacity.


patrick sullivan

Contributor
Joined
Jun 8, 2014
Messages
117
Last question. I don't want to loose my jails/plugin settings. I created a backup image, but it was with the 2 vdevs. Am I out of luck, or can I recover these settings once I create a singe volume?


cyberjock

Inactive Account
Joined
Mar 25, 2012
Messages
19,525
What I'd do is grab a spare disk and do a zfs snapshot and replicate to a spare drive (make a single disk pool temporarily). Then replicate the data to the new pool once it's recreated.

If your spare disk is big enough you could even replicate the whole pool to the spare pool just for migration purposes. ;)


patrick sullivan

Contributor
Joined
Jun 8, 2014
Messages
117
Perfect! Thank you.
