FreeNAS 11.2-U7 Mellanox ConnextX-4 Ethernet MCX416A-CCAT interface not showing up

cfxbruce

Neophyte
Joined
Nov 26, 2019
Messages
6
Hi,

I have a two port MCX416-CCAT 100G ethernet install on FreeNAS 11.2-U7 (actually I tried from 11.2-U4 to U7). The interface is not show up as a configurable NIC. I see the below error during boot time that seem like the device is not able to register... anyone have any idea what would be the issue?

mlx5_core0: <mlx5_core> mem 0x39bffe000000-0x39bfffffffff irq 88 at device 0.0 numa-domain 1 on pci21
mlx5_core0: INFO: firmware version: 12.26.1040
mlx5_core0: ERR: enable msix failed
mlx5_core0: ERR: mlx5_register_device failed -6
device_attach: mlx5_core0 attach returned 6


Thanks,
Bruce


radambe

Neophyte
Joined
Nov 23, 2014
Messages
10
Is this a brand new card? Has it been installed in any other machine with any other operating system? Just a guess but perhaps you might try checking that firmware version. I would throw the card in another machine with CentOS 7 or FreeBSD, install the Mellanox OFED driver package for the OS version, and see if it works there.


cfxbruce

Neophyte
Joined
Nov 26, 2019
Messages
6
Hi radambe,

yes, it is a brand new card. I did install it on CentOS 7 and it did works and I also have it on latest firmware (and later I tried every version of firmware listed on Mellanox site).


Chris Moore

Wizened Sage
Joined
May 2, 2015
Messages
10,068
Hi radambe,

yes, it is a brand new card. I did install it on CentOS 7 and it did works and I also have it on latest firmware (and later I tried every version of firmware listed on Mellanox site).
It is entirely possible that the driver is not integrated with the FreeNAS build. They do make a custom version of the OS by picking the packages they install. Probably need to put in a support ticket / report a bug...


cfxbruce

Neophyte
Joined
Nov 26, 2019
Messages
6
It is entirely possible that the driver is not integrated with the FreeNAS build. They do make a custom version of the OS by picking the packages they install. Probably need to put in a support ticket / report a bug...

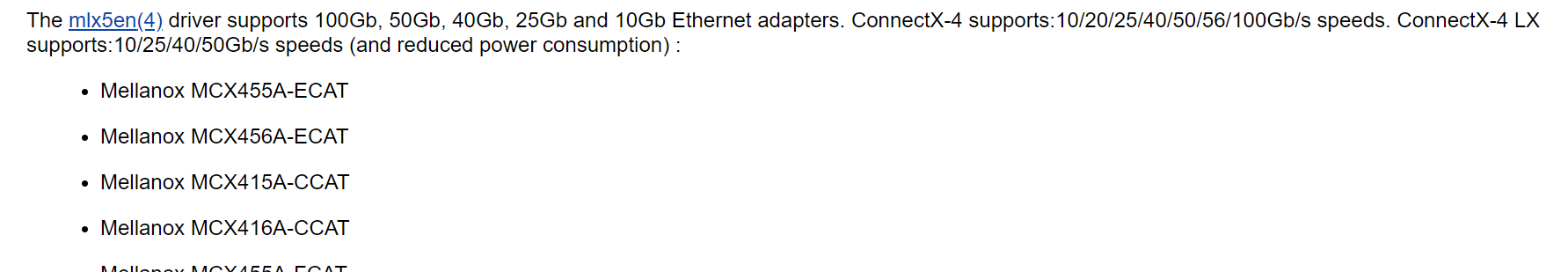

But the model is listed on the hardware supported list, isn't that mean the driver should be already build-in? Sorry, I'm not very familiar with freebsd.

https://www.freebsd.org/releases/11.1R/hardware.html#ethernet



radambe

Neophyte
Joined
Nov 23, 2014
Messages
10
Can you bootup an install of FreeBSD 11.3 on this specific system and report back whether or not you're seeing the same behavior? If it works there, but doesn't work in an equivalently fresh install of FreeNAS, at least you've narrowed it down to FreeNAS being the problem.


cfxbruce

Neophyte
Joined
Nov 26, 2019
Messages
6
Can you bootup an install of FreeBSD 11.3 on this specific system and report back whether or not you're seeing the same behavior? If it works there, but doesn't work in an equivalently fresh install of FreeNAS, at least you've narrowed it down to FreeNAS being the problem.

I did tried the 11.3-beta1 but it is showing the same messages I see in 11.2


Chris Moore

Wizened Sage
Joined
May 2, 2015
Messages
10,068
FreeNAS version numbers are not equal to FreeBSD versions. The FreeNAS development team chooses what they want to include into their OS, it is just based on FreeBSD. If you need this, open a support ticket.

Last edited:

cfxbruce

Neophyte
Joined
Nov 26, 2019
Messages
6
FreeNAS version numbers are not equal to FreeBSD versions. The FreeNAS development team chooses what they want to include into their OS, it is just based on FreeBSD. If you need this, open a support ticket.

I see, thanks for the advice. But I'm not using the paid iXsystems, can you kindly let me know how to submit a support ticket?
