Another FATAL TRAP 12

[Ismael Duarte]

Hi All,

I'm still trying to recover some data from an old pool and already have another problem.

I bought a new HDD and more ram to my FreeNas, but, for no apparente reason I've a FATAL TRAP 12, even with no trafic on FreeNas.

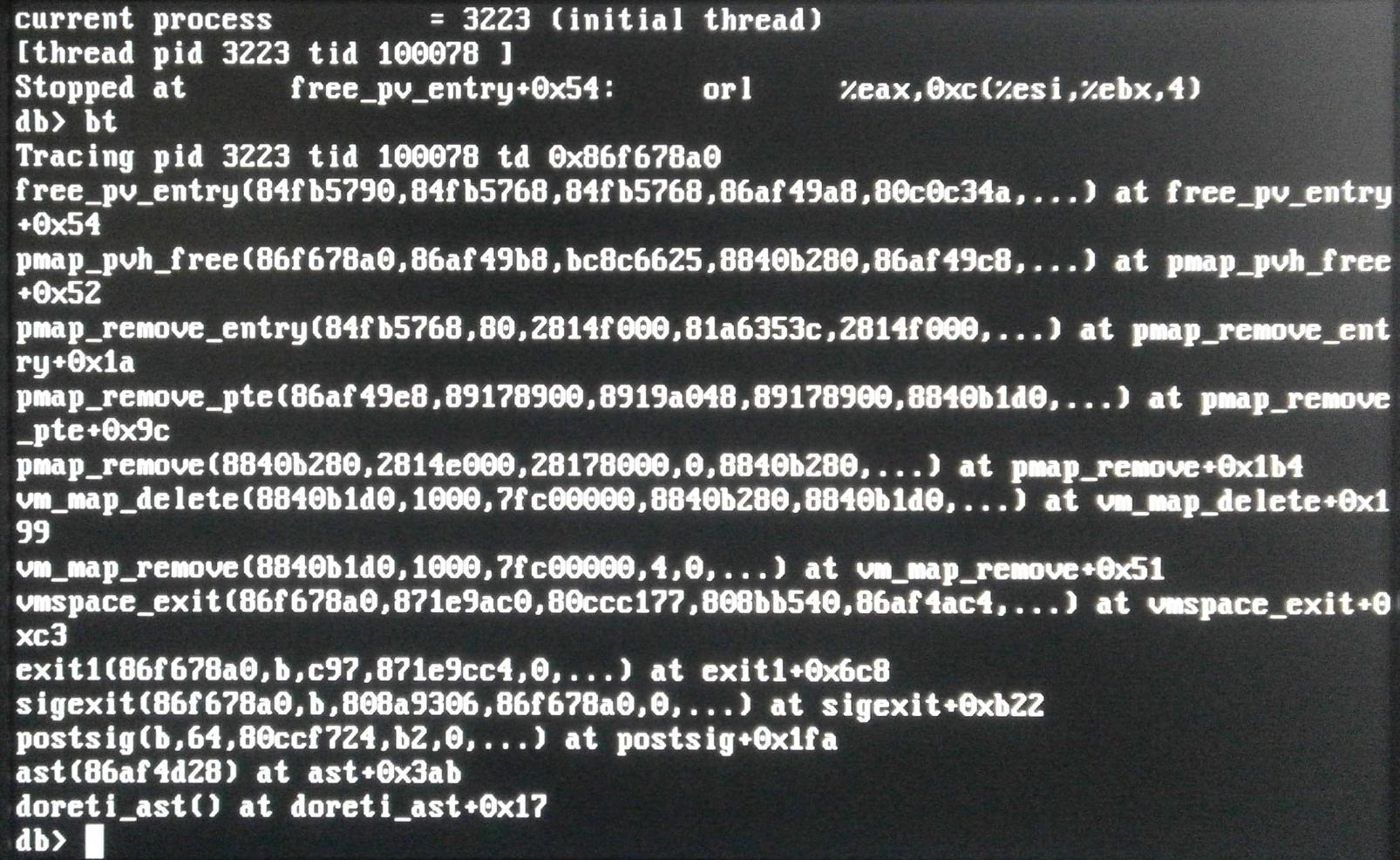

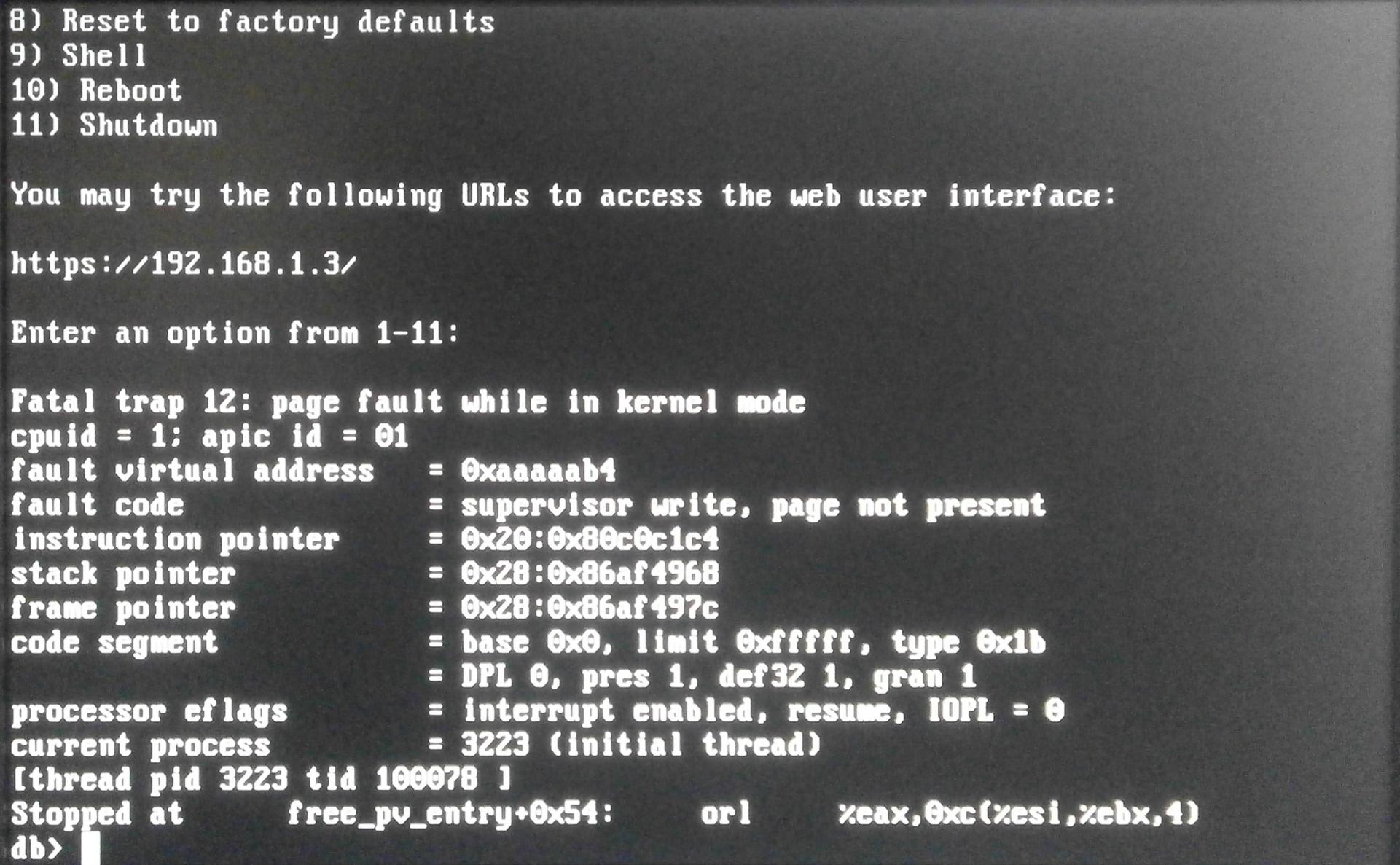

Here some screens of the error


and some info about my system at this moment

Code:

Copyright (c) 1992-2012 The FreeBSD Project.
Copyright (c) 1979, 1980, 1983, 1986, 1988, 1989, 1991, 1992, 1993, 1994
	The Regents of the University of California. All rights reserved.
FreeBSD is a registered trademark of The FreeBSD Foundation.
FreeBSD 8.3-RELEASE-p6 #0 r248141M: Sun Mar 10 23:42:41 PDT 2013
    root@build.ixsystems.com:/home/jpaetzel/8.3.1-RELEASE/os-base/i386/i386/tank/home/jpaetzel/8.3.1-RELEASE/FreeBSD/src/sys/FREENAS.i386 i386
Timecounter "i8254" frequency 1193182 Hz quality 0
CPU: Intel(R) Pentium(R) 4 CPU 3.20GHz (3198.47-MHz 686-class CPU)
  Origin = "GenuineIntel"  Id = 0xf34  Family = f  Model = 3  Stepping = 4
  Features=0xbfebfbff<FPU,VME,DE,PSE,TSC,MSR,PAE,MCE,CX8,APIC,SEP,MTRR,PGE,MCA,CMOV,PAT,PSE36,CLFLUSH,DTS,ACPI,MMX,FXSR,SSE,SSE2,SS,HTT,TM,PBE>
  Features2=0x441d<SSE3,DTES64,MON,DS_CPL,CNXT-ID,xTPR>
  TSC: P-state invariant
real memory  = 3221225472 (3072 MB)
avail memory = 3139133440 (2993 MB)
ACPI APIC Table: <A M I  OEMAPIC >
FreeBSD/SMP: Multiprocessor System Detected: 2 CPUs
FreeBSD/SMP: 1 package(s) x 1 core(s) x 2 HTT threads
 cpu0 (BSP): APIC ID:  0
 cpu1 (AP/HT): APIC ID:  1
WARNING: VIMAGE (virtualized network stack) is a highly experimental feature.
ioapic0 <Version 2.0> irqs 0-23 on motherboard
kbd1 at kbdmux0
hpt27xx: RocketRAID 27xx controller driver v1.0 (Mar 10 2013 23:42:32)
cryptosoft0: <software crypto> on motherboard
aesni0: No AESNI support.
acpi0: <A M I OEMRSDT> on motherboard
acpi0: [ITHREAD]
acpi0: Power Button (fixed)
acpi0: reservation of 0, a0000 (3) failed
acpi0: reservation of 100000, bfef0000 (3) failed
Timecounter "ACPI-fast" frequency 3579545 Hz quality 1000
acpi_timer0: <24-bit timer at 3.579545MHz> port 0x808-0x80b on acpi0
cpu0: <ACPI CPU> on acpi0
cpu1: <ACPI CPU> on acpi0
pcib0: <ACPI Host-PCI bridge> port 0xcf8-0xcff on acpi0
pci0: <ACPI PCI bus> on pcib0
agp0: <Intel 82865 host to AGP bridge> on hostb0
pcib1: <ACPI PCI-PCI bridge> at device 1.0 on pci0
pci1: <ACPI PCI bus> on pcib1
vgapci0: <VGA-compatible display> mem 0xfd000000-0xfdffffff,0xe8000000-0xefffffff irq 16 at device 0.0 on pci1
uhci0: <Intel 82801EB (ICH5) USB controller USB-A> port 0xeec0-0xeedf irq 16 at device 29.0 on pci0
uhci0: [ITHREAD]
usbus0: <Intel 82801EB (ICH5) USB controller USB-A> on uhci0
uhci1: <Intel 82801EB (ICH5) USB controller USB-B> port 0xef00-0xef1f irq 19 at device 29.1 on pci0
uhci1: [ITHREAD]
usbus1: <Intel 82801EB (ICH5) USB controller USB-B> on uhci1
uhci2: <Intel 82801EB (ICH5) USB controller USB-C> port 0xef20-0xef3f irq 18 at device 29.2 on pci0
uhci2: [ITHREAD]
usbus2: <Intel 82801EB (ICH5) USB controller USB-C> on uhci2
uhci3: <Intel 82801EB (ICH5) USB controller USB-D> port 0xef40-0xef5f irq 16 at device 29.3 on pci0
uhci3: [ITHREAD]
usbus3: <Intel 82801EB (ICH5) USB controller USB-D> on uhci3
ehci0: <Intel 82801EB/R (ICH5) USB 2.0 controller> mem 0xfebff800-0xfebffbff irq 23 at device 29.7 on pci0
ehci0: [ITHREAD]
usbus4: EHCI version 1.0
usbus4: <Intel 82801EB/R (ICH5) USB 2.0 controller> on ehci0
pcib2: <ACPI PCI-PCI bridge> at device 30.0 on pci0
pci2: <ACPI PCI bus> on pcib2
atapci0: <Promise PDC20378 SATA150 controller> port 0xdf00-0xdf3f,0xdfa0-0xdfaf,0xdc00-0xdc7f mem 0xfeafe000-0xfeafefff,0xfeac0000-0xfeadffff irq 23 at device 4.0 on pci2
atapci0: [ITHREAD]
atapci0: [ITHREAD]
ata2: <ATA channel> at channel 0 on atapci0
ata2: [ITHREAD]
ata3: <ATA channel> at channel 1 on atapci0
ata3: [ITHREAD]
ata4: <ATA channel> at channel 2 on atapci0
ata4: [ITHREAD]
skc0: <Marvell Gigabit Ethernet> port 0xd800-0xd8ff mem 0xfeaf8000-0xfeafbfff irq 22 at device 5.0 on pci2
skc0: Marvell Yukon Lite Gigabit Ethernet rev. (0x9)
sk0: <Marvell Semiconductor, Inc. Yukon> on skc0
sk0: Ethernet address: 00:13:d4:19:0f:38
miibus0: <MII bus> on sk0
e1000phy0: <Marvell 88E1011 Gigabit PHY> PHY 0 on miibus0
e1000phy0:  none, 10baseT, 10baseT-FDX, 100baseTX, 100baseTX-FDX, 1000baseT, 1000baseT-master, 1000baseT-FDX, 1000baseT-FDX-master, auto
skc0: [ITHREAD]
isab0: <PCI-ISA bridge> at device 31.0 on pci0
isa0: <ISA bus> on isab0
atapci1: <Intel ICH5 UDMA100 controller> port 0xefe0-0xefe7,0xefac-0xefaf,0xefa0-0xefa7,0xefa8-0xefab,0xef90-0xef9f irq 18 at device 31.1 on pci0
atapci1: [ITHREAD]
ata5: <ATA channel> at channel 0 on atapci1
ata5: [ITHREAD]
ata6: <ATA channel> at channel 1 on atapci1
ata6: [ITHREAD]
atapci2: <Intel ICH5 SATA150 controller> port 0xef88-0xef8f,0xef84-0xef87,0xef68-0xef6f,0xef80-0xef83,0xeeb0-0xeebf irq 18 at device 31.2 on pci0
atapci2: [ITHREAD]
ata7: <ATA channel> at channel 0 on atapci2
ata7: [ITHREAD]
ata8: <ATA channel> at channel 1 on atapci2
ata8: [ITHREAD]
pci0: <serial bus, SMBus> at device 31.3 (no driver attached)
acpi_button0: <Power Button> on acpi0
atrtc0: <AT realtime clock> port 0x70-0x71 irq 8 on acpi0
fdc0: <floppy drive controller (FDE)> port 0x3f0-0x3f5,0x3f7 irq 6 drq 2 on acpi0
fdc0: [FILTER]
pmtimer0 on isa0
sc0: <System console> at flags 0x100 on isa0
sc0: VGA <16 virtual consoles, flags=0x300>
vga0: <Generic ISA VGA> at port 0x3c0-0x3df iomem 0xa0000-0xbffff on isa0
ata0: <ATA channel> at port 0x1f0-0x1f7,0x3f6 irq 14 on isa0
ata0: [ITHREAD]
ata1: <ATA channel> at port 0x170-0x177,0x376 irq 15 on isa0
ata1: [ITHREAD]
atkbdc0: <Keyboard controller (i8042)> at port 0x60,0x64 on isa0
atkbd0: <AT Keyboard> irq 1 on atkbdc0
kbd0 at atkbd0
atkbd0: [GIANT-LOCKED]
atkbd0: [ITHREAD]
ppc0: parallel port not found.
p4tcc0: <CPU Frequency Thermal Control> on cpu0
p4tcc1: <CPU Frequency Thermal Control> on cpu1
fuse4bsd: version 0.3.9-pre1, FUSE ABI 7.8
Timecounters tick every 1.000 msec
hpt27xx: no controller detected.
GEOM_RAID5: Module loaded, version 1.1.20110927.40 (rev 00ce00e5abb4)usbus0: 12Mbps Full Speed USB v1.0
usbus1: 12Mbps Full Speed USB v1.0
usbus2: 12Mbps Full Speed USB v1.0
usbus3: 12Mbps Full Speed USB v1.0
usbus4: 480Mbps High Speed USB v2.0
ugen0.1: <Intel> at usbus0
uhub0: <Intel UHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus0
ugen1.1: <Intel> at usbus1
uhub1: <Intel UHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus1
ugen2.1: <Intel> at usbus2
uhub2: <Intel UHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus2
ugen3.1: <Intel> at usbus3
uhub3: <Intel UHCI root HUB, class 9/0, rev 1.00/1.00, addr 1> on usbus3
ugen4.1: <Intel> at usbus4
uhub4: <Intel EHCI root HUB, class 9/0, rev 2.00/1.00, addr 1> on usbus4
uhub0: 2 ports with 2 removable, self powered
uhub1: 2 ports with 2 removable, self powered
uhub2: 2 ports with 2 removable, self powered
uhub3: 2 ports with 2 removable, self powered

uhub4: 8 ports with 8 removable, self powered
ugen4.2: <JetFlash> at usbus4
umass0: <JetFlash Mass Storage Device, class 0/0, rev 2.00/11.00, addr 2> on usbus4
ada0 at ata7 bus 0 scbus5 target 0 lun 0
ada0: <WDC WD20EARX-00PASB0 51.0AB51> ATA-8 SATA 3.x device
ada0: 150.000MB/s transfers (SATA 1.x, UDMA5, PIO 8192bytes)
ada0: 1907729MB (3907029168 512 byte sectors: 16H 63S/T 16383C)
da0 at umass-sim0 bus 0 scbus9 target 0 lun 0
da0: <JetFlash Transcend 2GB 1100> Removable Direct Access SCSI-0 device
da0: 40.000MB/s transfers
da0: 1920MB (3932160 512 byte sectors: 255H 63S/T 244C)
SMP: AP CPU #1 Launched!
GEOM: da0s1: geometry does not match label (16h,63s != 255h,63s).
Trying to mount root from ufs:/dev/ufs/FreeNASs1a
ZFS filesystem version 5
ZFS storage pool version 28
GEOM_ELI: Device ada0p1.eli created.
GEOM_ELI: Encryption: AES-XTS 256
GEOM_ELI:     Crypto: software

Code:

NAME    SIZE  ALLOC   FREE    CAP  DEDUP  HEALTH  ALTROOT
DISCO  1.82T   441G  1.39T    23%  1.00x  ONLINE  /mnt

Code:

  pool: DISCO
 state: ONLINE
  scan: none requested
config:

	NAME                                          STATE     READ WRITE CKSUM
	DISCO                                         ONLINE       0     0     0
	  gptid/476b0f87-9bbc-11e2-903a-0013d4190f38  ONLINE       0     0     0

errors: No known data errors

Code:

                                      Name  Status  Components
gptid/476b0f87-9bbc-11e2-903a-0013d4190f38     N/A  ada0p2
                             ufs/FreeNASs3     N/A  da0s3
                             ufs/FreeNASs4     N/A  da0s4
                            ufs/FreeNASs1a     N/A  da0s1a
[root@duarte] ~# camcontrol devlist -v

scbus0 on ata2 bus 0:
<>                                 at scbus0 target -1 lun -1 ()
scbus1 on ata3 bus 0:
<>                                 at scbus1 target -1 lun -1 ()
scbus2 on ata4 bus 0:
<>                                 at scbus2 target -1 lun -1 ()
scbus3 on ata5 bus 0:
<>                                 at scbus3 target -1 lun -1 ()
scbus4 on ata6 bus 0:
<>                                 at scbus4 target -1 lun -1 ()
scbus5 on ata7 bus 0:
<WDC WD20EARX-00PASB0 51.0AB51>    at scbus5 target 0 lun 0 (pass0,ada0)
<>                                 at scbus5 target -1 lun -1 ()
scbus6 on ata8 bus 0:
<>                                 at scbus6 target -1 lun -1 ()
scbus7 on ata0 bus 0:
<>                                 at scbus7 target -1 lun -1 ()
scbus8 on ata1 bus 0:
<>                                 at scbus8 target -1 lun -1 ()
scbus9 on umass-sim0 bus 0:
<JetFlash Transcend 2GB 1100>      at scbus9 target 0 lun 0 (pass1,da0)
scbus-1 on xpt0 bus 0:
<>                                 at scbus-1 target -1 lun -1 (xpt0)

Already done:
- Changed SATA cables
- Tested RAM for a few hours (100%)
- HDD is new

Any clue?



[Ismael Duarte]

It's possible the Web GUI be the cause of this?
I've notice, and at this moment, I've high trafic on the server and I've no problems. When I leave the webpage open, I get a FATAL TRAP 12.
Does this make any sense?



[paleoN]

Code:

da0 at umass-sim0 bus 0 scbus9 target 0 lun 0
da0: <JetFlash Transcend 2GB 1100> Removable Direct Access SCSI-0 device
da0: 40.000MB/s transfers
da0: 1920MB (3932160 512 byte sectors: 255H 63S/T 244C)

Try with a 4GB or larger USB and see if anything is different.



[William Grzybowski]

Is this a bare metal machine?

How much RAM have you got?



[Ismael Duarte]

At this momment, 4GB.
But the problem is only with webgui. Just keep crashing. I think is better now, since I've changed prefetech

Is this a bare metal machine?

How much RAM have you got?



[DJABE]

Hi All,

I'm still trying to recover some data from an old pool and already have another problem.

I bought a new HDD and more ram to my FreeNas, but, for no apparente reason I've a FATAL TRAP 12, even with no trafic on FreeNas.

atapci0: <Promise PDC20378 SATA150 controller> port 0xdf00-0xdf3f,0xdfa0-0xdfaf,0xdc00-0xdc7f mem 0xfeafe000-0xfeafefff,0xfeac0000-0xfeadffff irq 23 at device 4.0 on pci2

Already done:
- Changed SATA cables
- Tested RAM for a few hours (100%)
- HDD is new

Any clue?

Hello,
Can you confirm that the Promise PDC20378 SATA150 controller is working fine on FreeBSD?
I believe you're getting such errors because the Kernel (BSD and also Linux i.e. everything not M$ Windows) is unable to 'talk' with these series of controllers properly since the vendor does not have a proper driver for anything non-Windows, or anything not some old old version of Red Hat Linux, or perhaps SLES linux. BSD, GNU/Linux etc. is not supported and hence kernel developers are unable to write a good drivers for these series of controllers.
I have a similar issue with VIA VT6421(A) PCI SATA/IDE RAID controller, in Linux recognized as RAID bus controller: VIA Technologies, Inc. VT6421 IDE RAID Controller (rev 50).
It just hangs the whole OS with many DMA errors while transferring data.

So I'm afraid the same issue exists with Promise 378/376 series controllers.

Can you confirm that the controller is working OK @FreeBSD with some other SATA drive perhaps? I doubt..
