TrueNAS AppsTrueNAS Apps: Tutorials
Application maintenance is independent from TrueNAS version release cycles.
App versions, features, options, and installation behavior at time of access might vary from documented tutorials and UI reference.

Cloudflare Tunnel

This guide shows how to create a Cloudflare tunnel and configure the Nextcloud and Cloudflared applications in TrueNAS. The goal is to allow secure access from anywhere.

Exposing applications to the internet can create security risks. Always follow best practices to secure your applications.

See additional security considerations below.

Review the Nextcloud documentation to get a better understanding of the security implications before proceeding.

Setting Up Cloudflare

Cloudflare Tunnel is a system that proxies traffic between the user and the application over the Cloudflare network. It uses a Cloudflared client that is installed on the TrueNAS system.

This allows a secure and encrypted connection without the need to expose ports or the private IP of the TrueNAS system to the internet.

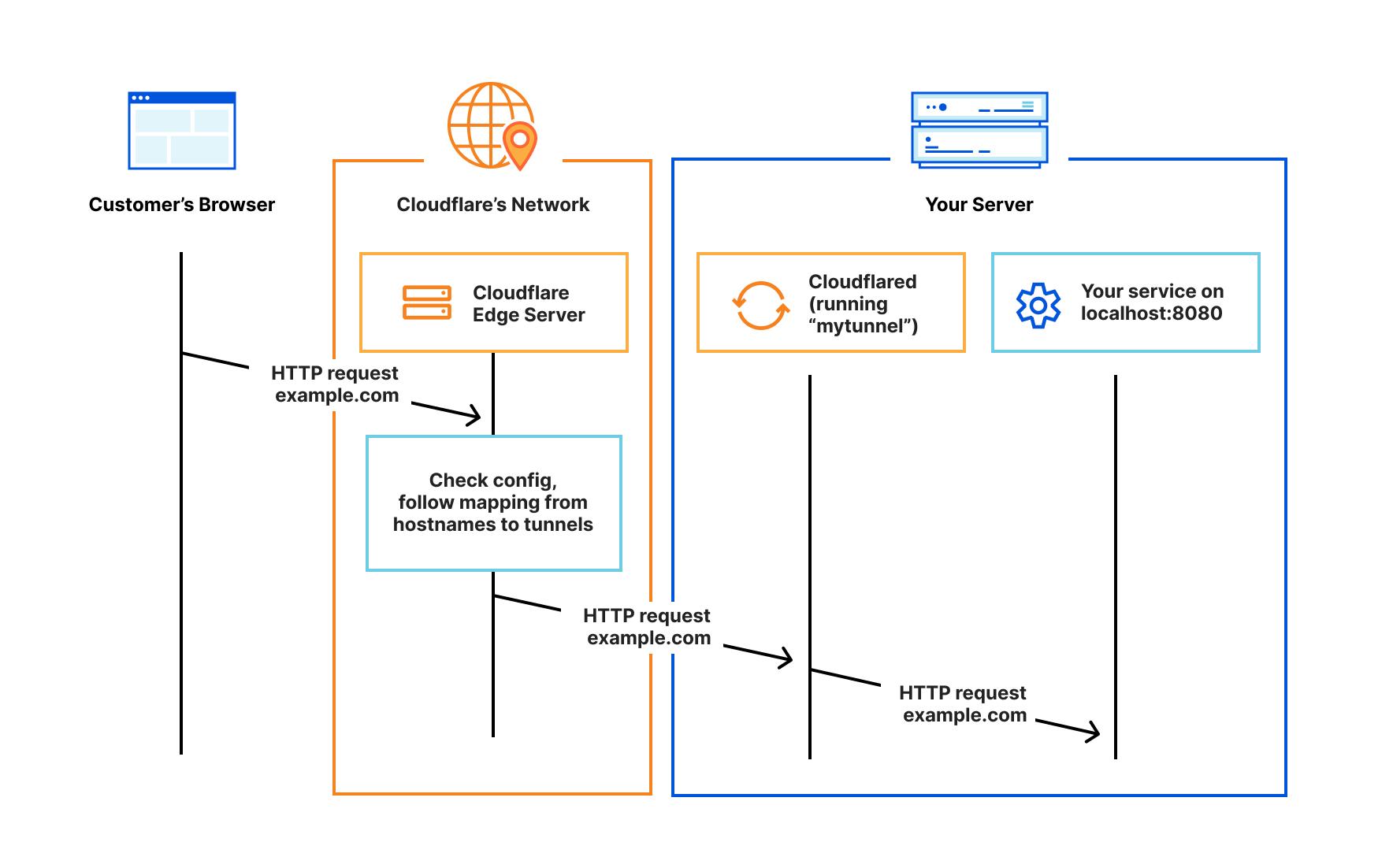

Cloudflare Tunnel Overview
Figure 1: Cloudflare Tunnel Overview

Illustration via Cloudflare (CC BY)

Register or log in to a Cloudflare account. A free account is sufficient.

Follow Cloudflare documentation to register a domain and set up DNS.

Creating a Cloudflare Tunnel

This video from Lawrence Systems provides a detailed overview of setting up Cloudflare tunnels for applications. It assumes that the applications run as a docker container, but the same approach can be used to secure apps running on TrueNAS in Kubernetes.

In the Cloudflare One dashboard:

Go to Networks and select Tunnels.

Click Create Tunnel, choose type Cloudflared, and click Next.

Choose a Tunnel Name and click Save tunnel.

Copy the tunnel token from the Install and run a connector screen. This is needed to configure the Cloudflared app in TrueNAS.

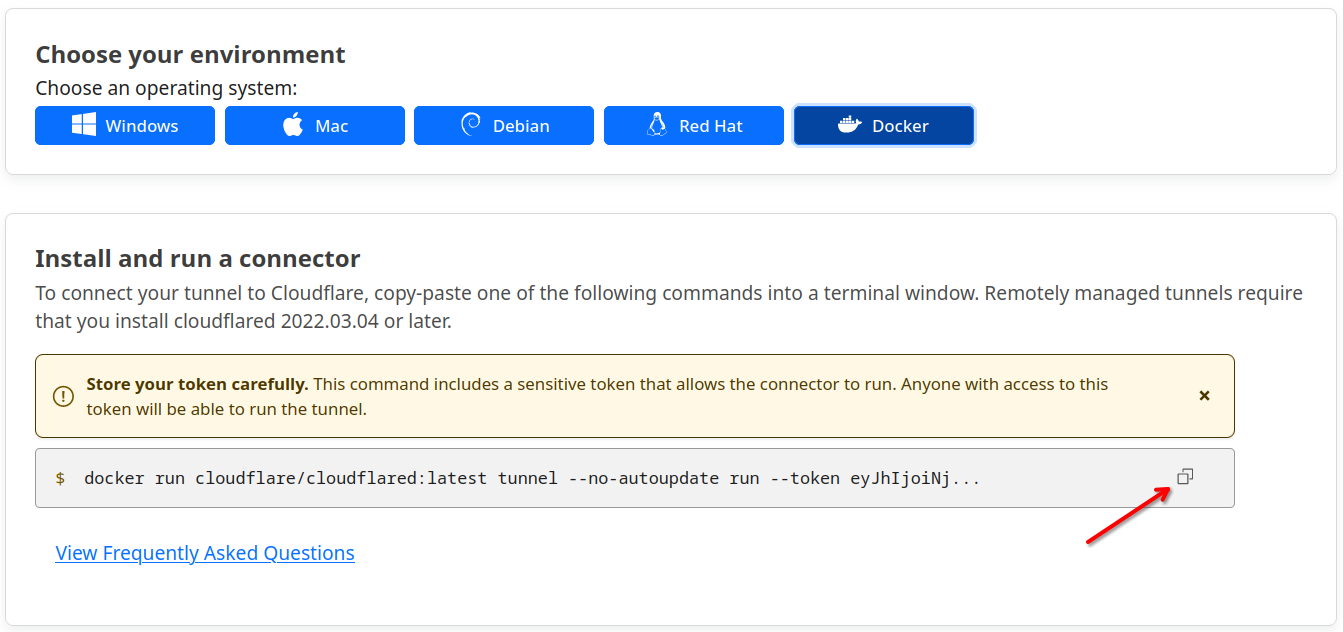

Cloudflare Create Token
Figure 2: Cloudflare Create Token

The operating system selection does not matter as the same token is used for all options. For example, the command for a docker container is:

docker run cloudflare/cloudflared:latest tunnel --no-autoupdate run --token
eyJhIjoiNjVlZGZlM2IxMmY0ZjEwNjYzMDg4ZTVmNjc4ZDk2ZTAiLCJ0IjoiNWYxMjMyMWEtZjE
2YS00MWQwLWFhN2ItNjJiZmYxNmI4OGIwIiwicyI6IlpqQmpaRE13WXpBdFkyRmpPUzAwWVRCbU
xUZ3hZVGd0TlRWbE9UQmpaakEyTlRFMCJ9

Copy the string after --token, then click Next.

Add a public hostname for accessing Nextcloud, for example nextcloud.example.com.

Set service Type to HTTPS. Enter the local TrueNAS IP with the Nextcloud container port, for example, 192.168.1.1:9001.

Cloudflare Tunnel Hostname
Figure 3: Cloudflare Tunnel Hostname

Go to Additional application Settings, select TLS from the dropdown menu, and enable No TLS Verify.

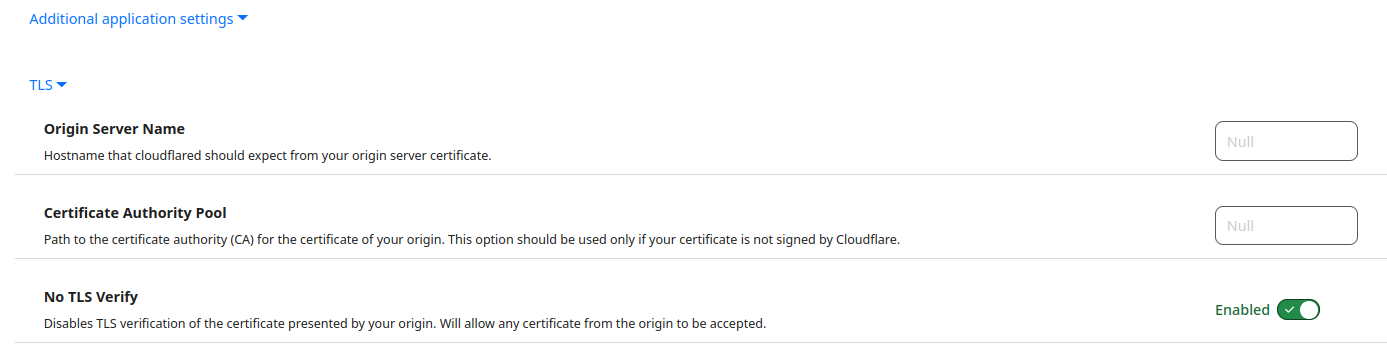

Cloudflare Tunnel TLS Setting
Figure 4: Cloudflare Tunnel TLS Setting

Click Save tunnel.

The new tunnel displays on the Tunnels screen.

Installing Cloudflared

After creating the Cloudflare tunnel, go to Apps in the TrueNAS UI and click Discover Apps. Search or browse to select the Cloudflared app from the community train and click Install.

Accept the default Application Name and Version.

Copy the Cloudflare tunnel token from the Cloudflare dashboard

Paste the token from Cloudflare, that you copied earlier, in the Tunnel Token field.

All other settings can be left as default.

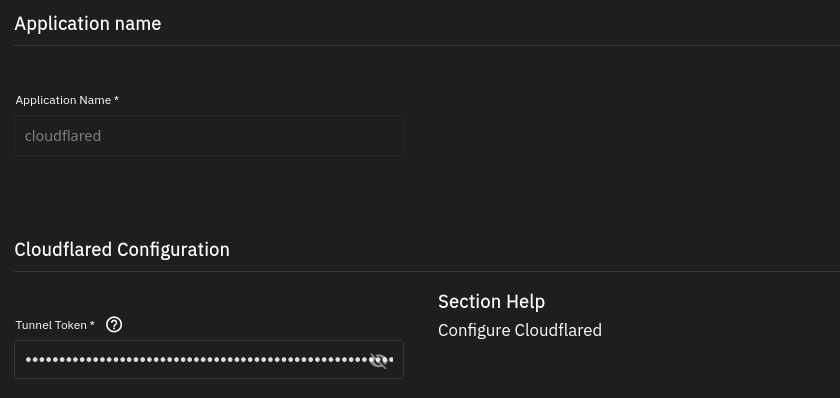

Install Cloudflared
Figure 5: Install Cloudflared

Click Save and deploy the application.

Nextcloud Configuration

Install the Nextcloud stable application.

The first application deployment could take a while, and starts and stops multiple times. This is normal behavior.

The Nextcloud documentation provides information on running Nextcloud behind a reverse proxy. Depending on the reverse proxy and its configuration, these settings might vary. For example, if you do not use a subdomain, but a path like example.com/nextcloud.

If you want to access your application via subdomain (shown in this guide) two environment variables must be set in the Nextcloud application: overwrite.cli.url and overwritehost. Additionally, you need to clear the Host field under Nextcloud Configuration, otherwise you cannot set the OVERWRITEHOST variable.

Enter the two environment variables in Name as OVERWRITECLIURL and OVERWRITEHOST.

Enter the address for the Cloudflare tunnel, configured above in Value, for example nextcloud.example.com.

Testing the Cloudflare Tunnel

With the Cloudflare connector and Nextcloud installed and configured, in your Cloudflare dashboard, go to Networks and select Tunnels.

The status of the tunnel should be HEALTHY.

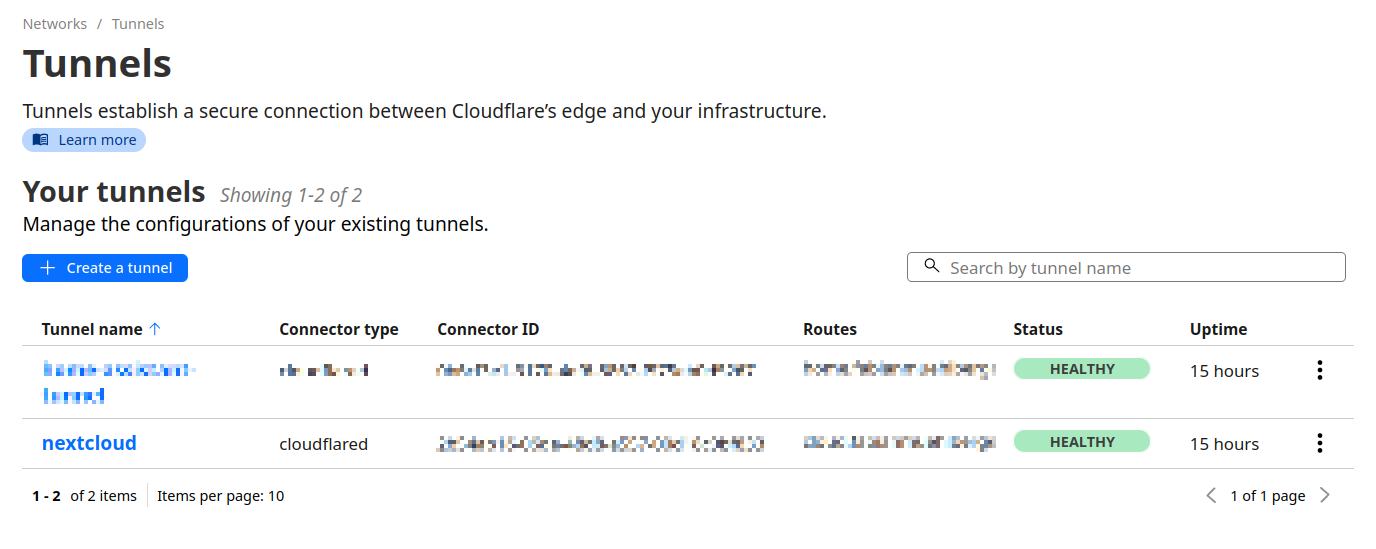

Cloudflare Tunnel Healthy
Figure 6: Cloudflare Tunnel Healthy

Nextcloud should now be reachable via the Cloudflare Tunnel address, nextcloud.example.com in this example, using an HTTPS connection.

Additional Security Considerations

Use strong user passwords and configure two-factor authentication for additional security.

Cloudflare offers access policies to restrict access to the application to specific users, emails, or authentication methods.

Go to Access, click Add an Application, and select Self-Hosted.

Add your Nextcloud application and the domain configured in the Cloudflare tunnel.

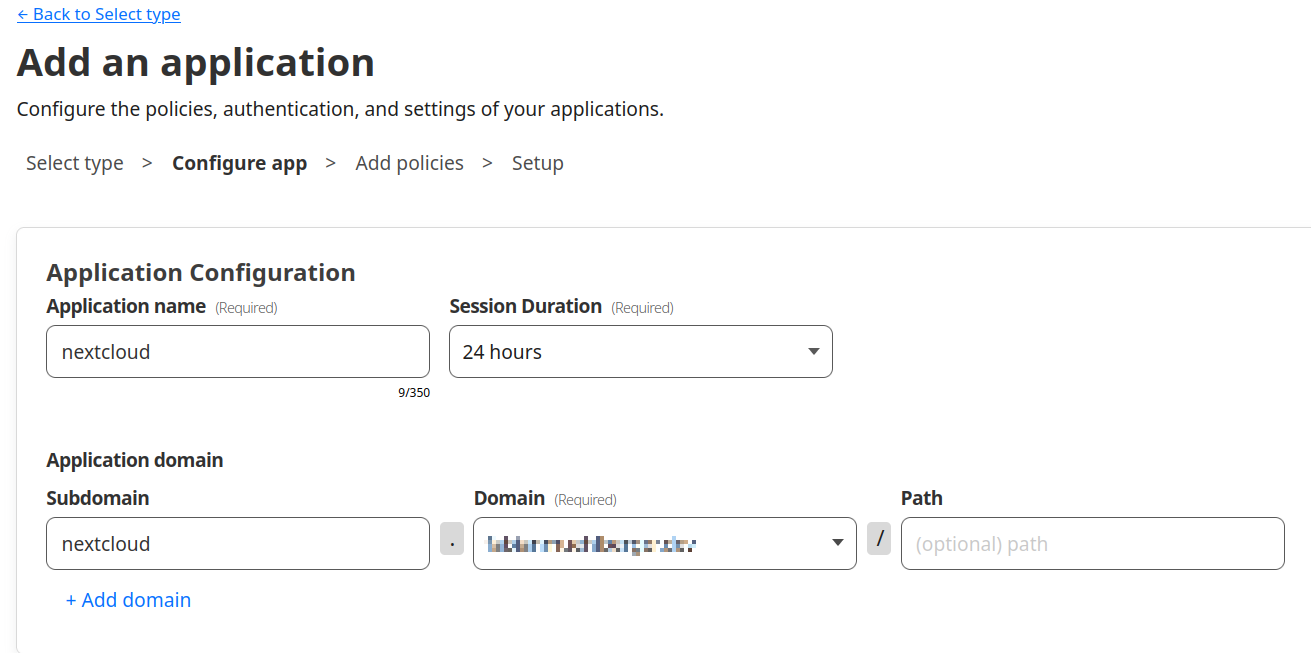

Cloudflare Add Application
Figure 7: Cloudflare Add Application

Click Next.

Create a new policy by entering a Policy Name. You can assign groups to this policy or add additional rules.

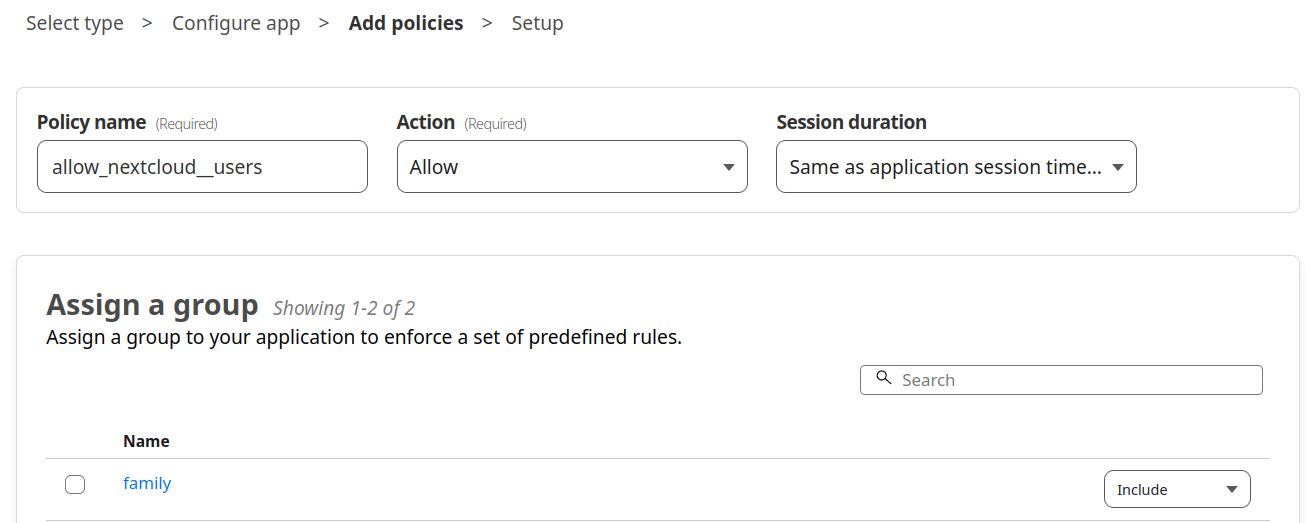

Cloudflare Add Policy
Figure 8: Cloudflare Add Policy

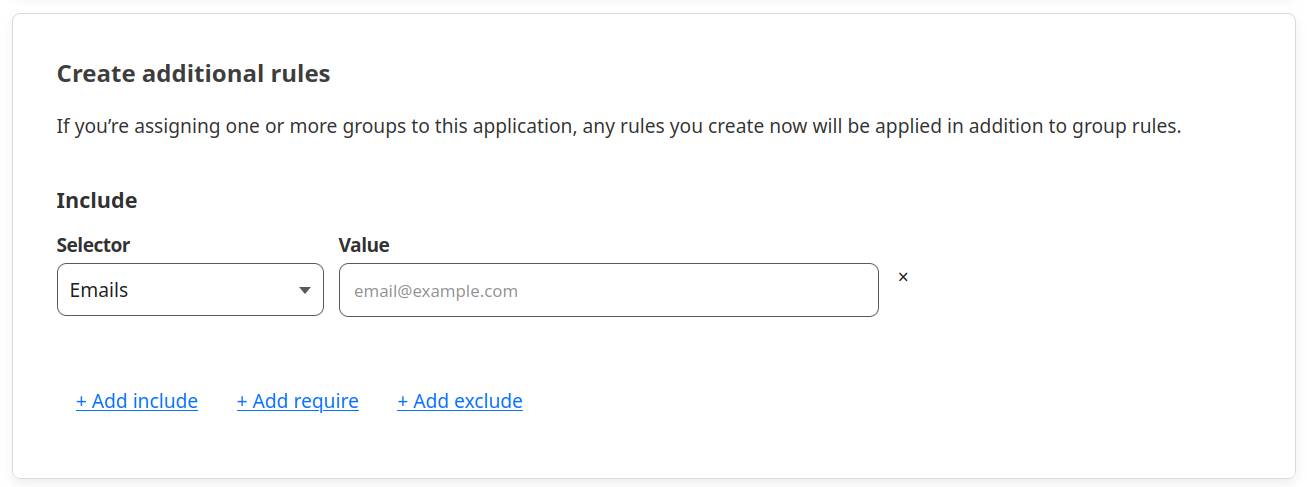

Cloudflare Additional Rules
Figure 9: Cloudflare Additional Rules

Click Next and Save.

There are additional options for policy configuration, but these are beyond the scope of this tutorial.
