Virtual Machines and Containers in TrueNAS 25.04
TrueNAS 25.04 introduces support for Containers (Linux system containers), enabling lightweight isolation similar to jails in TrueNAS CORE.
TrueNAS 25.04.2 reintroduces “classic virtualization” with the Virtual Machines feature.
Virtual machines created in 25.04.0 or 25.04.1 using the Instances feature continue to function and appear in the Containers screen. New VMs and those migrated from 24.10.2.2 to 25.04.2 use the Virtual Machines screen.
Virtual machines automatically migrate from TrueNAS 24.10 to 25.04.2. No manual migration of virtual machines is required.
We are actively updating Tutorials and UI Reference articles to reflect these changes. Please use the Docs Hub Feedback button (located to the right of any article) to report documentation issues or request improvements to the Containers or Virtual Machines documentation.

Containers (Linux system containers) are an experimental feature intended for community testing only. Functionality could change significantly between releases, and containers might not upgrade reliably. Use this feature for testing purposes only—do not rely on it for production workloads. Long-term stability is planned for future TrueNAS Community Edition releases.
Make all configuration changes using the TrueNAS UI. Operations using the command line are not supported and might not persist on upgrade.
For assistance or to discuss this feature with other TrueNAS users, visit our community forums.
To report bugs, submit an issue on TrueNAS Jira.

The Virtual Machines screen allows users to add, edit, or manage virtual machines (VMs) and VM devices. The No Virtual Machines screen displays if there are no VMs configured on the system or if you delete all VMs on the system.

Add Virtual Machines and Add at the top right of the screen opens the Create Virtual Machine wizard.

The screen displays a list of VMs configured on the TrueNAS SCALE system. The State toggle displays and changes the state of the VM. Autostart, when selected, automatically starts the VM if the system reboots, otherwise you must manually start the VM.

Click on a VM to expand it and open the details screen with details on that VM and options for a VM. Click Start to start the VM and show additional options.

Create Virtual Machine Wizard Screens

The Create Virtual Machine configuration wizard displays all settings to set up a new virtual machine.

Use Next and Back to advance to the next or return to the previous screen to change a setting. Use Save to close the wizard screens and add the new VM to the Virtual Machines screen.

Operating System Screen

The Operating System settings specify the VM operating system type, the time setting the VM system clock uses, the boot method, and display type.

Operating System Settings

Setting	Description
Guest Operating System	Required. Select the VM operating system type from the dropdown list. Options are Windows which adds the Enable Hyper-V Enlightenments option. Linux, and FreeBSD.
Enable Hyper-V Enlightenments	Only displays when Guest Operating System is set to Windows. This emulates a Hyper-V-compatible hypervisor for the Windows guest operating system and makes some Hyper-V-specific features available.
Name	Required. Enter an alphanumeric name for the virtual machine.
Description	(Optional) Enter a description of your choosing. For example, the type of OS for the VM or the VM use.
System Clock	Select the method to set the VM system clock from the dropdown list. Options are Local which uses the TrueNAS SCALE system clock setting, or UTC to use the Coordinated Universal Time clock. The default is Local.
Boot Method	Select the boot method option from the dropdown list. Options are UEFI for newer operating systems or Legacy BIOS for older operating systems that only support BIOS booting.
Enable Secure Boot	Select to verify boot components using digital signatures. This prevents unauthorized code from running during startup and is required for Windows 11 and some Linux distributions.
Enable Trusted Platform Module (TPM)	Select to provide a virtual TPM 2.0 device for the VM. Enables hardware-based security functions including secure key storage and cryptographic operations. Required for Windows 11.
Shutdown Timeout	Enter the time in seconds the system waits for the VM to cleanly shut down. During system shutdown, the system initiates power-off for the VM after the shutdown timeout entered expires.
Start on Boot	Select to start the VM when the system boots. Selected by default.
Enable Display	Enables a display (Virtual Network Computing) remote connection. Requires UEFI booting. Selected by default.
Bind	Displays when Enable Display is selected. Select an IP address to use for remote VNC sessions. Note that this setting only applies if you are using a VNC client other than the TrueNAS WebUI.
Password	Displays when Enable Display is selected. Enter a password for the VNC display to use to securely access the VM.

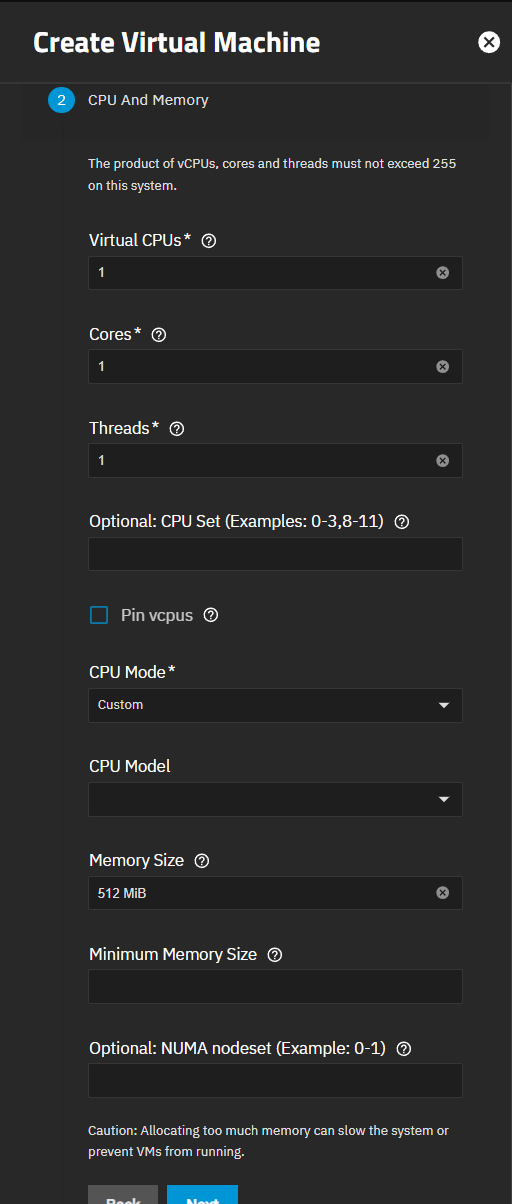

CPU and Memory Screen

The CPU and Memory settings specify the CPU mode, model, and memory size. They also let you specify the number of virtual CPUs to allocate to the virtual machine, the number of cores per virtual CPU socket, and the number of threads per core.

CPU and Memory Settings

Setting Description

CPU Configuration (Required for VMs) Enter the number of virtual CPU (vCPU) cores to allocate to the instance. Set to an integer to expose that number of full vCPU cores to the instance.

Set to a range or comma-separated list to pin vCPUs to specific physical cores. For better cache locality and performance, select cores that share the same cache hierarchy or NUMA node. For example, to assign cores 0,1,2,5,9,10,11, you can write: 1-2,5,9-11.

For Linux containers, you can set CPU limits or leave this field blank to allow access to all host CPUs.

Memory Size (Required for VMs) Allocate RAM for the instance. This field accepts human-readable input (Ex. 50 GiB, 500M, 2 TB). If units are not specified, the value defaults to mebibytes (MiB). The minimum value is 32 MiB.

For Linux containers, you can set memory limits or leave this field blank to allow access to all host memory.

Setting	Description
CPU Configuration	(Required for VMs) Enter the number of virtual CPU (vCPU) cores to allocate to the instance. Set to an integer to expose that number of full vCPU cores to the instance. Set to a range or comma-separated list to pin vCPUs to specific physical cores. For better cache locality and performance, select cores that share the same cache hierarchy or NUMA node. For example, to assign cores 0,1,2,5,9,10,11, you can write: `1-2,5,9-11`. For Linux containers, you can set CPU limits or leave this field blank to allow access to all host CPUs.
Memory Size	(Required for VMs) Allocate RAM for the instance. This field accepts human-readable input (Ex. 50 GiB, 500M, 2 TB). If units are not specified, the value defaults to mebibytes (MiB). The minimum value is 32 MiB. For Linux containers, you can set memory limits or leave this field blank to allow access to all host memory.

Disks Screen

The Disks settings allow specifying how virtual disks are added. Options are to create a new zvol on an existing dataset for a disk image or use an existing zvol or file for the VM. You also specify the disk type, zvol location, and size.

Disks Settings

Setting	Description
Create new disk image	Select to create a new zvol on an existing dataset to use as a virtual hard drive for the VM.
Use existing disk image	Select to use an existing zvol or file for the VM. Displays the Select Disk Type and Select Existing Zvol dropdown list fields.
Select Disk Type	Displays after selecting Use existing disk image. Select the desired disk type. Options are AHCI or VirtIO. Select AHCI for Windows VMs. VirtIO requires a guest OS that supports VirtIO paravirtualized network drivers.
Select Existing Zvol	(Required) Displays after selecting Use existing disk image. Select an existing zvol from the dropdown list.
Zvol Location	(Required) Displays after selecting Create new disk image. Select a dataset for the new zvol from the dropdown list of datasets on the system.
Size	(Required) Displays after selecting Create new disk image. Allocate space for the new zvol. (Examples: 500 KiB, 500M, 2 TB). Units smaller than MiB are not allowed.

Network Interface Screen

The Network Interface settings specify the network adapter type, MAC address, and physical network interface card associated with the VM.

Network Interface Settings

Setting	Description
Adapter Type	Select the adapter type from the dropdown list. Options are: Intel e82545 (e1000) emulates the same Intel Ethernet card and provides compatibility with most operating systems. VirtIO provides better performance when the operating system installed in the VM supports VirtIO para-virtualized network drivers.
Mac Address	Enter the desired address into the field to override the randomized MAC address.
Attach NIC	Select the physical interface to associate with the VM from the dropdown list.
Trust Guest Filters	Select to enable and allow the virtual server to change its MAC address. As a consequence, the virtual server can join multicast groups. The ability to join multicast groups is a prerequisite for the IPv6 Neighbor Discovery Protocol (NDP). Setting Trust Guest Filters to yes has security risks because it allows the virtual server to change its MAC address and so receive all frames delivered to this address. Disabled by default.

Installation Media Screen

The Installation Media settings specify the operating system installation media image on a dataset or upload one from the local machine.

Installation Media Settings

Setting	Description
Choose Installation Media Image	Enter the path or browse to the operating system installer image file. To collapse the browse tree click on the to the left of /mnt.
Upload New Image File	Select to open the Upload Image File dialog.

Setting	Description
ISO save location	Enter the path or browse to the location where you want to install the image file.
Choose File	Click to save the path populated in the ISO save location field.
Upload	Click to upload the file selected in the ISO save location field.

GPU Screen

The GPU settings specify the graphic processing unit (GPU) for the VM. It also provides the option to hide the VM from the Microsoft Reserved Partition (MSR) on Windows systems.

Confirm Options Screen

The Confirm Options screen displays a summary of settings for the VM. It shows the number of CPUs, cores, threads, memory, name of the VM, and the disk size.

Click Save to add the VM to the Virtual Machines screen. Click Back to return to the previous screens to make changes.

Virtual Machine Details Screen

Expand any VM on the Virtual Machines screen to show the details and options for a VM. Details include the basic information on the number of virtual CPUs, cores, and threads, the amount of memory, boot loader and system clock types, the display port number, and the shutdown timeout in seconds.

Starting the VM shows additional options for the VM.

VM Options

Operation	Icon	Description
Start		Starts a VM. The toggle turns blue when the VM switches to running. Toggles to Stop. Clicking Start shows the Restart,Power Off, Display, and Serial Shell buttons.
Restart	replay	Restarts the VM.
Power Off	power_settings_new	Powers off and halts the VM, similar to turning off a computer power switch.
Stop		Stops a running VM. Virtual machines do not always respond to STOP or the command might time out if the VM does not have an OS. Use Power Off instead.
Edit	mode_edit	Opens the Edit Virtual Machine that displays editable VM settings. You cannot edit a VM while it is running. Stop the VM and then you can edit the properties and settings.
Delete		Deletes a VM. Opens a delete dialog that allows you to remove the VM from your system. You cannot delete a virtual machine that is running. You must first stop the VM and then you can delete it.
Devices		Opens the Virtual Machine Devices screen for the selected VM. Shows a list of configured devices for the VM. By default, all VMs show the Disks, NIC, and Display devices.
Clone		Makes an exact copy or clone of the VM. Opens the Clone dialog that allows you to clone the selected VM. Enter a name for the cloned VM. Naming the clone VM is optional. The cloned VM displays on the Virtual Machines list with the extension _clone0. If you clone the same VM again the extension for the second clone is clone1.
Display		Opens the SPICE login screen in a browser window and allows you to connect to the remote desktop.
Serial Shell		Opens the TrueNAS VM Serial Shell screen.
Download Logs	content_paste	Downloads a .log file to the system.

Delete Virtual Machine Dialog

Delete removes the VM configuration from your system.

Delete Settings

Setting	Description
Delete Virtual Machine Data	Select to remove the data associated with this virtual machine. Deleting a VM results in data loss if the data is not backed up. Leave unselected to keep the VM data intact.
Force Delete	Select to ignore the virtual machine status during the delete operation. Leave unselected to prevent deleting the VM when it is still active or has an undefined state.
*Enter vmname* below to confirm**	Enter the name of the VM to confirm you want to delete the selected VM.

Clone Virtual Machine Window

The Clone dialog allows you to create an exact duplicate of the VM using the name entered.

Naming the clone VM is optional. The cloned VM displays on the Virtual Machines list with the extension _clone0. If you clone the same VM again the extension for the second clone is clone1.

VM Serial Shell Screen

Click Serial Shell to open the VM Serial Shell screen where you can enter commands for the selected virtual machine.

Click Virtual Machines in the header to return to the Virtual Machine screen.

Edit Virtual Machine Screen

The Edit VM screen settings are a subset of those found on the Create Virtual Machine screens. It only includes the general settings found on the wizard Operating System screen, CPU and Memory, and GPUs screen settings. To edit disks, network, or display settings, click Devices on the expanded view of the VM to open the Devices screen.

Edit General Settings

The Edit screen General Settings specify the basic settings for the VM. Unlike the Create Virtual Machine wizard, you cannot change the Enable or Start on Boot status or change the display type or bind address for a saved VM from this screen.

General Settings

Setting	Description
Name	Required. Enter an alphanumeric name for the virtual machine.
Description	Enter a description (optional).
System Clock	Select the VM system time from the dropdown list. Options are Local or UTC. The default is Local.
Boot Method	Select the boot method option from the dropdown list. Select UEFI for newer operating systems or Legacy BIOS for older operating systems that only support BIOS booting.
Shutdown Timeout	Enter the time in seconds the system waits for the VM to cleanly shut down. During system shutdown, the system initiates power-off for the VM after the shutdown timeout entered expires.
Start on Boot	Select to start this VM when the system boots.
Enable Hyper-V Enlightenments	Shows for VMs set for Windows OS. KVM implements Hyper-V Enlightenments for Windows guests. These features make Windows think they are running on top of a Hyper-V-compatible hypervisor and use Hyper-V-specific features. In some cases enabling these enlightenments might improve the usability and performance on the guest.

To edit display type or bind address after VM creation (click to expand)

Go to Virtualization > Virtual Machines and locate the VM you want to modify. Click anywhere on the VM entry on the Virtual Machines widget to expand it. Click Devices to open the devices screen associated with the VM. From this screen, click the more_vert icon at the right of the display device and select Edit to open the Edit Display Device screen. Use the Bind dropdown to select a new IP address.

Edit CPU and Memory Settings

The CPU and Memory settings on the Edit VM screen are the same as those in the Create Virtual Machine wizard.

CPU and Memory Settings

Setting Description

Setting	Description
CPU Configuration	(Required for VMs) Enter the number of virtual CPU (vCPU) cores to allocate to the instance. Set to an integer to expose that number of full vCPU cores to the instance. Set to a range or comma-separated list to pin vCPUs to specific physical cores. For better cache locality and performance, select cores that share the same cache hierarchy or NUMA node. For example, to assign cores 0,1,2,5,9,10,11, you can write: `1-2,5,9-11`. For Linux containers, you can set CPU limits or leave this field blank to allow access to all host CPUs.
Memory Size	(Required for VMs) Allocate RAM for the instance. This field accepts human-readable input (Ex. 50 GiB, 500M, 2 TB). If units are not specified, the value defaults to mebibytes (MiB). The minimum value is 32 MiB. For Linux containers, you can set memory limits or leave this field blank to allow access to all host memory.

Edit GPU Settings

The GPU settings on the Edit screen are the same as those in the Create Virtual Machine wizard.

Devices Screens

The Devices screen displays a list of VM devices configured on your system. By default, every VM displays three devices: Disks, NIC, and Display.

Add opens the Add Device screen. Settings change based on the various device types.

Device Actions

Each device listed on the Devices screen has the same three options, accessed by clicking the more_vert at the right of the device row:

Edit opens the Edit type Device screen where type is the device type selected. Settings vary based on the type of device selected in Device Type. See Add Device screen. Device Type only displays on the Add Device screens.
Delete opens a dialog. Delete Device confirms you want to delete the device.
Details opens an information dialog that lists the port, type, bind IP, and other details about the device. Click Close to close the dialog.

Devices Add Screens

The Add Device screen displays different settings based on the Device Type selected.

Add CD-ROM Device Type Settings

Select CD-ROM in Device Type to see the CD-ROM settings.

Setting	Description
Type	Select the device type from the dropdown list. CD-ROM is the default setting.
CD-ROM Path	Use the to the left of /mnt to browse to the location of the CD-ROM file on the system.
Device Order	Enter the number (such as 1003) that represents where in the boot order this device should be. The higher the number, the later in the boot-up process the device falls.

Add NIC Device Type Settings

Select NIC in Device Type to see the VM network interface card settings.

Setting	Description
Type	Select the device type from the dropdown list.
Adapter Type	Required. Select the emulator type from the dropdown list. Emulating an Intel e82545 (e1000) Ethernet card provides compatibility with most operating systems. Change to VirtIO to provide better performance on systems with VirtIO paravirtualized network driver support.
MAC Address	Displays the default auto-generated random MAC address the VM receives. Enter a custom address to override the default.
Generate	Click to add a new randomized address in MAC Address.
NIC To attach	Select a physical interface from the dropdown list to associate with the VM.
Trust Guest Filters	Default setting is not enabled. Set this attribute to allow the virtual server to change its MAC address. As a consequence, the virtual server can join multicast groups. The ability to join multicast groups is a prerequisite for the IPv6 Neighbor Discovery Protocol (NDP). Setting Trust Guest Filters to “yes” has security risks because it allows the virtual server to change its MAC address and receive all frames delivered to this address.
Device Order	Enter the number (such as 1003) that represents where in the boot order this device should be. The higher the number, the later in the boot-up process the device falls.

Add Disk Device Type Settings

Select Disk in Device Type in the Add device screen to see the disk settings including disk location, drive type, and disk sector size.

Setting	Description
Type	Select the device type from the dropdown list.
Zvol	Select the zvol path from the dropdown list.
Mode	Select the drive type from the dropdown list. Options are AHCI or VirtIO.
Disk sector size	Select the disk sector size from the dropdown list or leave set as Default. Options are Default, 512 or 4096.
Device Order	Enter the number (such as 1003) that represents where in the boot order this device should be. The higher the number, the later in the boot-up process the device falls.

Add Display Device Type Settings

Remote clients can connect to VM display sessions using a SPICE client, or by installing a 3rd party remote desktop server inside your VM. SPICE clients are available from the SPICE Protocol site.

Select Display in Device Type in the Add device screen to see the display device settings.

Setting	Description
Type	Select the device type from the dropdown list. Display is the default setting.
Port	Enter the port number. You can assign 0, leave it empty for TrueNAS to assign a port when the VM is started, or set it to a fixed preferred port number.
Resolution	Select a screen resolution to use for VM display sessions.
Bind	Select an IP address to use for display sessions or use the default 0.0.0.0.
Password	Enter a password of no more than eight characters in length to automatically pass to the remote display session.
Web Interface	Select to enable connecting to the SPICE web interface.
Device Order	Enter the number (such as 1003) that represents where in the boot order this device should be. The higher the number, the later in the boot-up process the device falls. If you want the CD-ROM to be the first device checked assign it a lower number.

Add Raw File Device Type Settings

Select Raw File in Device Type in the Add device screen to see the raw file settings that include location, size of the file, disk sector size, and type.

Setting	Description
Type	Select the device type from the dropdown list.
Raw File	Enter or use the to the left of /mnt to browse to the location of the file on the system.
Disk sector size	Select the disk sector size from the dropdown list or leave set as Default. Options are Default, 512 or 4096.
Mode	Select the drive type from the dropdown list. Options are AHCI or VirtIO.
Raw filesize	Enter the size of the file in GiB.
Device Order	Enter the number (such as 1003) that represents where in the boot order this device should be. The higher the number, the later in the boot-up process the device falls.

Add PCI Passthrough Device Type Settings

Select PCI Passthrough Device in Device Type in the Add device screen to see the PCI passthrough device settings.

Depending upon the type of device installed in your system, you might see a warning: PCI device does not have a reset mechanism defined. You might experience inconsistent or degraded behavior when starting or stopping the VM. Determine if you want to proceed with this action in such an instance.

Setting	Description
Type	Select the device type from the dropdown list.
PCI Passthrough Device	Enter or select the device from the dropdown list of options. Enter as (bus#/slot#/fcn#).
Device Order	Enter the number (such as 1003) that represents where in the boot order this device should be. The higher the number, the later in the boot-up process the device falls.

Add USB Passthrough Device Type Settings

Select USB Passthrough Device in Device Type in the Add device screen to see the USB passthrough device settings.

Setting	Description
Type	Select the device type from the dropdown list.
Controller Type	Required. Choose from piix3-uhci, piix4-uhci, ehci, ich9-ehci1, vt82c686b-uhci, pci-ohci, nec-xhci, qemu-xhci.
Device	Enter or select the device from the dropdown list of options. If Specify custom is chosen, enter the required Vendor ID and Product ID.
Device Order	Enter the number (such as 1003) that represents where in the boot order this device should be. The higher the number, the later in the boot-up process the device falls.

Use Cases

Industry

Support

Resources
