NFS Shares Screens
8 minute read.

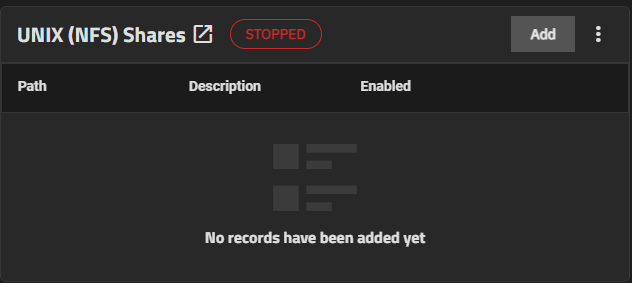

If you have not added NFS shares to the system, the NFS widget shows text stating general information about the Unix (NFS) shares until a share is added.
Add at the top right of the widget opens the Add NFS screen where you configure NFS shares.
After adding an NFS share, it is listed in the table on the widget.
The Unix (NFS) Share header shows the status of the NFS service as either STOPPED (red) or RUNNING (green). Before adding the first share, the STOPPED status displays in the default color. The header is a link that opens the NFS screen.
The dropdown list shows three options available to NFS shares and the NFS service in general:
- Turn Off/ON Service toggles to Turn Off Service when the NFS service is enabled, and to Turn On Service when the NFS service is disabled.
- Config Service opens the NFS configuration screen.
- NFS Sessions that opens the NFS Sessions screen.
The widget shows a table listing nfs shares created in TrueNAS. Each NFS share row on the Unix (NFS) Shares widget shows the path to the shared dataset, a description if one is entered when the share is added, an Enabled toggle that allows you to enable or disable the share. The dropdown list for each share shows two options:
- Edit opens the Edit NFS screen.
- Delete opens the Delete dialog.
After adding the first NFS share, the system opens an enable service dialog.
Enable Service turns the NFS service on and changes the toolbar status to Running.
The Enable toggle for each share shows the current status of the share. Disabling the share does not delete the configuration from the system.

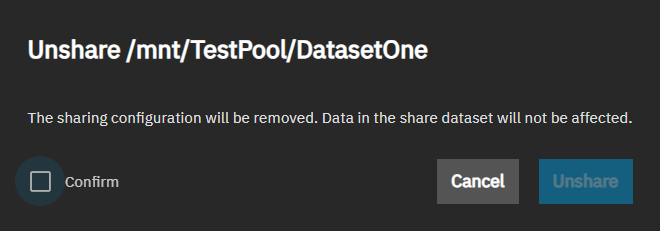

The delete icon displays a delete confirmation dialog that removes the share from the system.
Select Confirm to activate the Delete button.
The NFS screen shows an expanded presentation of the table on the Unix (NFS) Shares widget.
Shares in the breadcrumb at the top of the screen returns you to the main Shares dashboard.
NFS Sessions opens the NFS Session screen.
Add opens the Add NFS configuration screen.
The NFS table lists all NFS shares added to the system. The table header shows the status of the NFS service as stopped or running. The table columns show the path to the dataset for the share, the share description if added during share creation, networks, and hosts. The Enabled toggle allows you to enable/disable the share. When enabled, the share path is available when the NFS service is active. If disabled, the share is disabled but not deleted from the system.
Columns shows a set of options to customize the list view. Options include Unselect All, Path, Description, Enabled and Reset to Defaults.
The dropdown list at the right of each table row shows two options for a share:
The Add NFS and Edit NFS show the same Basic Options and Advanced Options settings.
The UDP protocol is deprecated and not supported with NFS. It is disabled by default in the Linux kernel. Using UDP over NFS on modern networks (1Gb+) can lead to data corruption caused by fragmentation during high loads.
Changes to local groups or directory service groups take up to 10 minutes to take effect for NFS shares. For immediate effect, reload or restart the NFS service.
The Basic Options settings on the Add and Edit NFS screens show by default, and at the top of the screen when Advanced Options is selected.
| Setting | Description |
|---|---|
| Path | Specifies the mount path for the share. It includes a blank field and a file browser field directly below it. The blank field allows text entry of a share mount path or allows Truenas to populate it with the path to the dataset selected in the file browser field. The file browser selects the mount path to the share dataset on the local file system that TrueNAS exports over the NFS protocol. Use the icon to the left of to expand the dataset directory tree. |
| Create Dataset | Creates a dataset for a share while configuring the share. Inactive until the parent dataset is selected. It opens the Create Dataset dialog, where you enter a name for a new dataset. The dataset name becomes the last part of the NFS share path. Create adds the dataset and populates Path field on the Add NFS screen. |
| Description | A text-entry field for a brief description or notes about how this share is used. The description entered shows in the Description column on the Unix (NFS) Shares widget on the Shares dashboard and the NFS table on the NFS screen. |
| Enabled | Select to enable this NFS share. Clear the checkbox to disable this NFS share without deleting the configuration. |
| Networks | Defines an authorized network, and any added, restricts access to all other networks. Leave empty to allow all networks. Add shows the Networks IP address and CIDR fields to enter an allowed network IP and select the mask CIDR notation. Click Add for each network address and CIDR you want to define as an authorized network. |
| Add hosts | Defines allowed clients (hosts) you want to allow to connect to the share. Defining authorized systems restricts access to all other systems. Leave the field empty to allow all systems access to the share. Add shows the Authorized Hosts and IP addresses field. Enter a host name or IP address to allow that system access to the NFS share. Click Add for each allowed system you want to define. |
Advanced Options settings tune the share access permissions and define authorized networks. Advanced Options shows the Access settings listed below.
| Setting | Description |
|---|---|
| Read-Only | Selecting this to enable read-only prohibits writing to the share. |
| Maproot User | Text entry field that allows manual entry of a user name or selecting a user from the dropdown list. Typing in the field filters the dropdown list to match what is entered. Entering a user applies permissions for that user to the root user, and limits the root user to the permissions of that user. |
| Maproot Group | Text entry field that allows manual entry of a group name or selecting a group from the dropdown list. Typing in the field filters the dropdown list to match what is entered. Entering a group applies permissions for that group to the root user and the root user is limited to the permissions of that group. |
| Mapall User | Text entry field that allows manual entry of a user name or selecting a user from the dropdown list. Typing in the field filters the dropdown list to match what is entered. Entering a user applies permission for the chosen user to all clients, and the specified permissions of that user are used by all clients. |
| Mapall Group | Text entry field that allows manual entry of a group name or selecting a group from the dropdown list. Typing in the field filters the dropdown list to match what is entered. Entering a group applies permissions for the chosen group to all clients, and the specified permissions of that group are used by all clients. |
| Security | Sets the level of authentication and cryptographic protection to the option selected on the dropdown list. Options are SYS, KRB5, KRB5I, KRB5P. Selecting KRB5 allows you to use a Kerberos ticket. SYS or none should be used if no KDC is available. If a KDC is available, e.g., Active Directory, KRB5 is recommended. If desired KRB5I (integrity protection) and/or KRB5P (privacy protection) can be included with KRB5. |
| Setting | Description |
|---|---|
| SYS | Uses locally acquired UIDs and GIDs. No cryptographic security. |
| KRB5 | Uses Kerberos for authentication. |
| KRB5I | Uses Kerberos for authentication and includes a hash with each transaction to ensure integrity. |
| KRB5P | Uses Kerberos for authentication and encrypts all traffic between the client and server. KRB5P is the most secure but also incurs the most load. |
The NFS Sessions screen shows a table of sessions with the IP address and Export status of each session listed. You can access the NFS Sessions screen from the :
- list icon on the NFS service row on the System > Services screen
- on the Shares > Unix (NFS) Shares widget
- NFS Sessions on the NFS screen
This screen shows NFSv3 clients that have successfully completed an MNT request by reading the NFS rmtab file. Clients with appropriate permissions are removed from the list on a successful UMNT request.
However, this list can become inaccurate due to the different ways that a client can disconnect from a share. To help prevent stale entries from accumulating, the sessions list is cleared on each system boot.
Refresh updates the information displayed on the screen.
Column shows a dropdown list of options for the selected tab to customize the information included on the screen.
The breadcrumb links at the top of the screen return you to the screen you click.
