S.M.A.R.T. Tests Screens

  4 minute read.

Last Modified 2022-09-13 12:52 EDT

The Data Protection screen S.M.A.R.T. Tests widget displays the S.M.A.R.T. tests configured on the system and provides access to create or edit S.M.A.R.T. tests.

DataProtectionSmartTestScreen

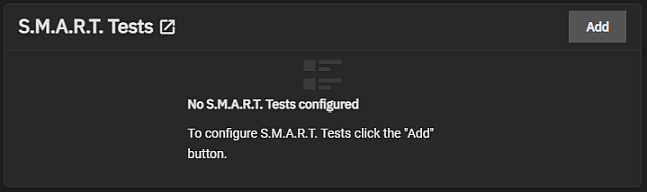

The S.M.A.R.T. Tests widget displays No S.M.A.R.T. Tests configured when no tests are configured on the system.

SmartTestsWidgetNoTests

After adding tests, each becomes a link to open the Edit S.M.A.R.T. Tests screen.

SmartTestsWidgetWithTest

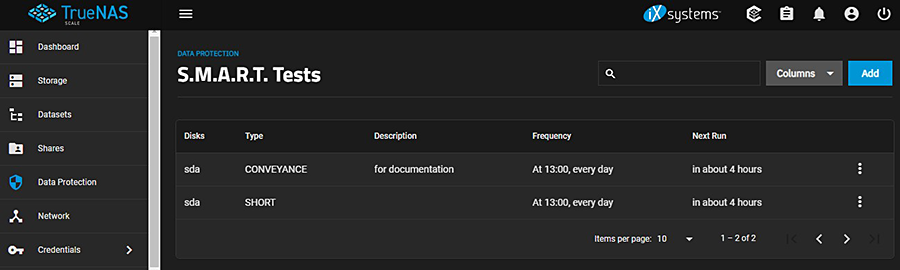

Click on S.M.A.R.T. Tests widget header to open the S.M.A.R.T. Tests list screen.

SmartTestsListScreen

Use Columns to display options to customize the information displayed in the list screen. Options are Unselect All, Description, Frequency, Next Run, and Reset to Defaults.

Add opens the Add S.M.A.R.T. Test configuration screen.

The more_vert for each test has two options, Edit and Delete. Edit opens the Edit S.M.A.R.T. Test configuration screen and Delete opens a confirmation Delete dialog. The delete delete icon on the widget also opens the Delete dialog for the selected S.M.A.R.T. test. Click Confirm to activate Delete.

DeleteSMARTTest

Add and Edit SMART Test Screens

The Add S.M.A.R.T. Test and Edit S.M.A.R.T. Test configuration screens displays the same settings.

AddSMARTTestsScreen

EditSMARTTestScreen

NameDescription
DisksSelect the disks to monitor from the dropdown list.
All DisksSetect to monitor every disk on the system with S.M.A.R.T. enabled. Leave clear to choose individual disks on the Disks dropdown list to include in the test.
TypeSelect the test type from the dropdown list. Options are LONG, SHORT, CONVEYANCE or OFFLINE. See smartctl(8) for descriptions of each type. Some types degrade performance or take disks offline.
DescriptionEnter information about the S.M.A.R.T. test.
ScheduleSelect a preset test schedule from the dropdown list. Select Custom to open the advanced scheduler and define a new schedule for running the test.

AdvancedSchedulerSCALE

Choosing a Presets option populatess in the rest of the fields. To customize a schedule, enter crontab values for the Minutes/Hours/Days.

These fields accept standard cron values. The simplest option is to enter a single number in the field. The task runs when the time value matches that number. For example, entering 10 means that the job runs when the time is ten minutes past the hour.

An asterisk (*) means match all values.

You can set specific time ranges by entering hyphenated number values. For example, entering 30-35 in the Minutes field sets the task to run at minutes 30, 31, 32, 33, 34, and 35.

You can also enter lists of values. Enter individual values separated by a comma (,). For example, entering 1,14 in the Hours field means the task runs at 1:00 AM (0100) and 2:00 PM (1400).

A slash (/) designates a step value. For example, entering * in Days runs the task every day of the month. Entering */2 runs it every other day.

Combining the above examples creates a schedule running a task each minute from 1:30-1:35 AM and 2:30-2:35 PM every other day.

TrueNAS has an option to select which Months the task runs. Leaving each month unset is the same as selecting every month.

The Days of Week schedules the task to run on specific days in addition to any listed days. For example, entering 1 in Days and setting Wed for Days of Week creates a schedule that starts a task on the first day of the month and every Wednesday of the month.

The Schedule Preview dipslays when the current settings mean the task runs.

Examples of CRON syntax

SyntaxMeaningExamples
*Every item.* (minutes) = every minute of the hour.
* (days) = every day.
*/NEvery Nth item.*/15 (minutes) = every 15th minute of the hour.
*/3 (days) = every 3rd day.
*/3 (months) = every 3rd month.
Comma and hyphen/dashEach stated item (comma)
Each item in a range (hyphen/dash).
1,31 (minutes) = on the 1st and 31st minute of the hour.
1-3,31 (minutes) = on the 1st to 3rd minutes inclusive, and the 31st minute, of the hour.
mon-fri (days) = every Monday to Friday inclusive (every weekday).
mar,jun,sep,dec (months) = every March, June, September, December.

You can specify days of the month or days of the week.

TrueNAS lets users create flexible schedules using the available options. The table below has some examples:

Desired scheduleValues to enter
3 times a day (at midnight, 08:00 and 16:00)months=*; days=*; hours=0/8 or 0,8,16; minutes=0
(Meaning: every day of every month, when hours=0/8/16 and minutes=0)
Every Monday/Wednesday/Friday, at 8.30 pmmonths=*; days=mon,wed,fri; hours=20; minutes=30
1st and 15th day of the month, during October to June, at 00:01 ammonths=oct-dec,jan-jun; days=1,15; hours=0; minutes=1
Every 15 minutes during the working week, which is 8am - 7pm (08:00 - 19:00) Monday to FridayNote that this requires two tasks to achieve:
(1) months=*; days=mon-fri; hours=8-18; minutes=*/15
(2) months=*; days=mon-fri; hours=19; minutes=0
We need the second scheduled item, to execute at 19:00, otherwise we would stop at 18:45. Another workaround would be to stop at 18:45 or 19:45 rather than 19:00.
