Configuring LDAP

TrueNAS has an Open LDAP client for accessing the information on an LDAP server. An LDAP server provides directory services for finding network resources like users and their associated permissions.

You can have either Active Directory or LDAP configured on TrueNAS but not both.

Does LDAP work with SMB? LDAP authentication for SMB shares is disabled unless you configured and populated the LDAP directory with Samba attributes. The most popular script for performing this task is smbldap-tools. TrueNAS needs to be able to validate the full certificate chain (no self-signed certificates). TrueNAS does not support non-CA certificates.

Configuring LDAP

To configure TrueNAS to use an LDAP directory server:

  1. Go to Credentials > Directory Services and click Configure Directory Services to open the Directory Services Configuration form.

  2. Select LDAP as the directory service type.

  3. Enter the LDAP Configuration settings:

    • Enter your LDAP server URLs in Server URLs (required). If using a cloud service LDAP server, do not include the full URL.
    • Enter your LDAP server base DN in Base DN (required). This is the top level of the LDAP directory tree to use when searching for resources.
    • Select Start TLS if needed for your environment.
    • Select Validate Certificates if certificate validation is required.
    • Select the appropriate Schema from the dropdown list.
  4. Enter the Auxiliary Parameters settings.

    • Use Standard Auxiliary Parameters is enabled by default. Clear the checkbox to disable and enter custom auxiliary parameters.
  5. Enter the Search Bases settings. Use Standard Search Bases is enabled by default. To enter custom User Base DN, Group Base DN, and Netgroup Base DN values, clear the checkbox and show these fields.

  6. Enter the Attribute Maps settings.

    • Use Standard Attribute Maps is enabled by default. Clear the checkbox to personalize the LDAP Password Attributes, LDAP Shadow Attributes, LDAP Group Attributes, and LDAP Net Group Attributes.
  7. Click Save.

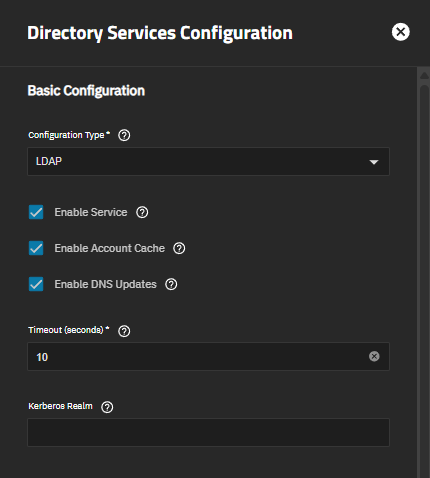

    LDAPBasicOptionsSettings

Disabling LDAP

To disable LDAP but not remove the configuration, clear the Enable Service checkbox. The main Directory Services screen returns to the default view showing the option to configure directory services. To enable LDAP again, click Configure Directory Services to open the Directory Services Configuration form with your saved LDAP configuration. Select Enable Service again to reactivate your LDAP directory server configuration.

Removing LDAP from TrueNAS

To remove the LDAP configuration, click Settings to open the LDAP screen. Clear all settings and click Save.
