Managing Certificate Signing Requests
5 minute read.
The Certificate Signing Requests widget allows users to configure a message that the system sends to a registration authority of the public key infrastructure to apply for a digital identity certificate.
If you plan to create an ACME certificate, before adding a CSR, make sure the certificate authority provider account (i.e., Cloudflare, DigitalOcean, etc.) is correctly configured with all domains entered in this CSR.
When adding an ACME certificate for a CSR, it is created based on the settings in the selected CSR.
For example, if using a Cloudflare DNS authenticator, in the Cloudflare account, register the domain(s) entered in the Subject Alternative Name field on the Certificate Subject screen in the Add CSR wizard.
If the CSR and provider accounts are not properly configured, a dialog with an error indicating the configuration problem opens.
For information on how to add a DNS authenticator in TrueNAS, see Adding ACME DNS Authenticators.
You can only edit the name of the CSR after clicking Save. If you make a mistake or want to change any setting, delete the CSR and create a new one with the desired or correct settings.
To add a CSR:
Enter a name and select the CSR type. The Add CSR wizard allows creating a certificate signing request (CSR) or importing a certificate for a CSR. Users can select a predefined certificate extension from the Profiles dropdown list.
Click Next.
Select or enter the certificate options for the CSR. TrueNAS shows default settings in each field. Key Type shows the option matching the selection made in Profiles in step 1. Accept the default values or choose the number of bits in the key used by the cryptographic algorithm, and the cryptographic algorithm the CSR uses.
Click Next.
Enter the Certificate Subject settings. When entering values, enter short values for the geographic information, where possible. For example, enter TN instead of Tennessee for the State. Enter all required values (indicated by the asterisk).
If specifying a value in Common Name, it can be the full domain assigned to the TrueNAS system or just the example.net portion of the domain name. Include this in the Subject Alternative Name field. You can enter any other system fully-qualified hostname (FQDN) and domains for multi-domain support.
When specifying an IP address in Subject Alternative Name do not enter the IP address of the system. This results in an error if you try to create an ACME certificate for the CSR.
Click Next.
(Optional) Enter any extra constraints if needed for your scenario. The Extra Constraints step contains certificate extension options.
- Basic Constraints limits the path length for a certificate chain.
- Authority Key Identifier identifies the public key corresponding to the private key used to sign a certificate.
- Key Usage defines the purpose of the public key contained in a certificate.
- Extended Key Usage further refines key usage extensions.
Review the certificate options. Click Back until reaching the screen with the setting option you want to change, make the change, and then click Next to advance to the Confirm Options step.
Click Save to add the CSR.
When importing a certificate into TrueNAS for the CSR, enter a name, and then select Import Certificate Signing Request in Type. Click Next.
Enter or copy/paste the certificate string into Signing Request, then enter or copy/paste the private key into Private Key. Enter the password for the private key in Password and Confirm Password. Click Next, review the information, and then click Save.

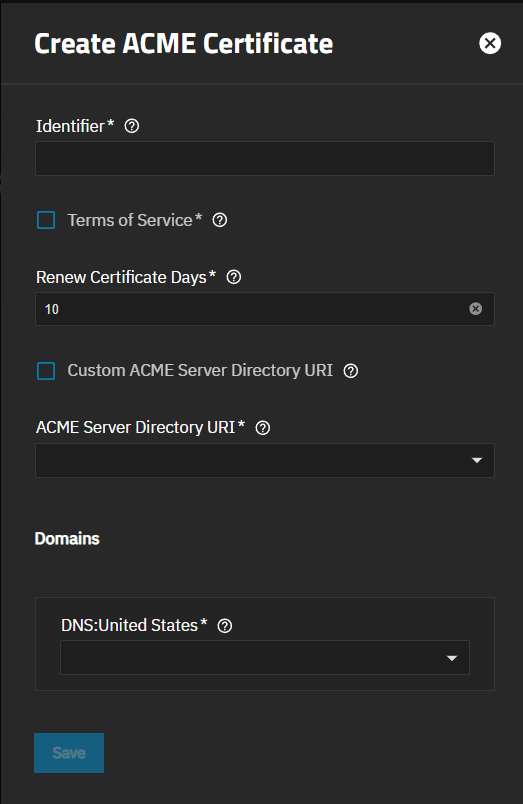

TrueNAS provides a way to add a certificate for an ACNE DNS authenticator added to the system. After adding the DNS authenticator, create a CSR for it. Click on the for the CSR on the Certificate Signing Requests widget, then click on Create ACME Certificate to open the Create ACME Certificate screen.
You must configure a DNS authenticator to create an ACME certificate! The ACME certificate is created based on the settings in the selected CSR.
You must have the domains added to the account providing the DNS authenticator. For example, if using Cloudflare to create the DNS authenticator, the Cloudflare account must have the domain(s) entered in the Subject Alternative Name field in the Add CSR wizard on the Certificate Subject screen. If not properly configured, a dialog with an error indicating the configuration problem opens.
Enter a name in Identifier. The underscore (_) and dash (-) are allowed characters in the name.
Select Terms of Service.
Enter a number that specifies the time (in days) before the certificate expires in Renew Certificate Days.
Select the URI of the ACME server directory from the ACME Server Directory URI dropdown list.
The Domains area shows domains for each entry made in the Subject Alternative Name field on the Certificate Subject screen of the Add CSR wizard. Select the option from the dropdown list for each domain shown. This sets the authenticator to validate the domain.
Click Save. The new ACME certificate shows on the Certificates and the Certificate Signing Requests widgets.
