Configuring LDAP

  4 minute read.

TrueNAS has an Open LDAP client for accessing the information on an LDAP server. An LDAP server provides directory services for finding network resources like users and their associated permissions.

You can have either Active Directory, LDAP, or IPA configured on TrueNAS but not multiple directory services simultaneously.
Does LDAP work with SMB? LDAP authentication for SMB shares is disabled unless you configured and populated the LDAP directory with Samba attributes. The most popular script for performing this task is smbldap-tools. TrueNAS needs to be able to validate the full certificate chain (no self-signed certificates). TrueNAS does not support non-CA certificates.

Configuring LDAP

To configure TrueNAS to use an LDAP directory server:

  1. Go to Credentials > Directory Services and click Configure Directory Services to open the Directory Services Configuration form.

  2. Select LDAP from the Configuration Type dropdown list.

  3. Enter the Basic Configuration settings:

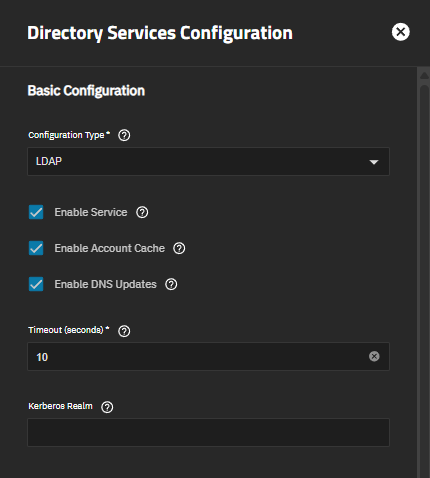

LDAP Basic Configuration
Figure 1: LDAP Basic Configuration

  • Select the Enable Service checkbox to activate the LDAP configuration. Selected by default.

  • Select the Enable Account Cache checkbox to cache user and group information. Caching makes directory users and groups available in UI dropdown menus. Selected by default.

  • Select the Enable DNS Updates checkbox to allow the directory service to update DNS records. Selected by default.

  • Enter the number of seconds (1-40) before the directory service connection times out in Timeout (seconds). Required.

  • (Optional) Enter the Kerberos realm in Kerberos Realm. This is usually the uppercase version of the domain name, for example, EXAMPLE.COM.

  1. Enter the Credential Configuration settings:

    • Select the credential type from the Credential Type dropdown list. Options are LDAP Anonymous, LDAP Plain, LDAP MTLS, Kerberos Principal, or Kerberos User. Required.

    • If you selected Kerberos User, enter the LDAP administrative account username and password in the respective Username and Password fields. Required.

    • If you selected LDAP Plain, enter the applicable credentials in the Bind DN and Bind Password fields. Required.

    • If you selected LDAP MTLS, select the desired Client Certificate from the dropdown menu. Required.

    • If you selected Kerberos Principal, select the desired Kerberos Principal from the dropdown menu. Required.

  2. Enter the LDAP Configuration settings:

LDAP Configuration
Figure 2: LDAP Configuration

  • Enter the LDAP server URLs in Server URLs. Required. Separate multiple entries by pressing Enter. If using a cloud service LDAP server, do not include the full URL.

  • Enter the LDAP server base DN in Base DN. Required. This is the top level of the LDAP directory tree to use when searching for resources. For example, dc=example,dc=org.

  • (Optional) Select the Start TLS checkbox if needed for your environment.

  • (Optional) Select the Validate Certificates checkbox to verify certificate authenticity when connecting to the LDAP server.

  • Select the LDAP NSS schema from the Schema dropdown list. Required. Options are RFC2307 or RFC2307BIS.

  1. (Optional) Configure auxiliary parameters:

    Select Use Standard Auxiliary Parameters to use default auxiliary parameters. Selected by default.

    To customize auxiliary parameters, clear Use Standard Auxiliary Parameters to reveal the Auxiliary Parameters text field where you can enter custom options for nslcd.conf.

  2. (Optional) Configure search bases:

    Select Use Standard Search Bases to use default search bases. Selected by default.

    To customize search bases, clear Use Standard Search Bases to reveal additional configuration options: User Base DN, Group Base DN, and Netgroup Base DN.

  3. (Optional) Configure attribute maps:

    Select Use Standard Attribute Maps to use default attribute mappings. Selected by default.

    To customize attribute maps, clear Use Standard Attribute Maps to reveal four subsections for customization:

    • LDAP Password Attributes - Enter custom password attribute mappings.

    • LDAP Shadow Attributes - Enter custom shadow attribute mappings.

    • LDAP Group Attributes - Enter custom group attribute mappings.

    • LDAP Net Group Attributes - Enter custom net group attribute mappings.

  4. Click Save.

Disabling LDAP

To disable LDAP but not remove the configuration, clear the Enable Service checkbox. The main Directory Services screen returns to the default view showing the option to configure directory services. To enable LDAP again, click Configure Directory Services to open the Directory Services Configuration form with your saved LDAP configuration. Select Enable Service again to reactivate your LDAP directory server configuration.

Removing LDAP from TrueNAS

To remove the LDAP configuration, click Settings to open the LDAP screen. Clear all settings and click Save.
