Reporting
5 minute read.
The Reporting screen displays graphs of system information for CPU, disk, memory, network, NFS, partition, target, UPS, ZFS, and system functions. Use the dropdown in the upper right corner to select between reporting graph display options. The CPU report displays by default.
To configure a third-party reporting integration, such as Graphite, click Exporters to open the Reporting Exporters screen.
The following sections provide examples of each report graph.
Displays the CPU Temperature, CPU Usage, and System Load graphs.
Displays graphs for each selected system disk and by report type.
Click Here for More Information
Disk graphs shows read and write statistics on I/O, percent busy, latency, operations per second, pending I/O requests, and disk temperature. Use the Select Disks dropdown list to select the disks and the Select Reports dropdown to select the report types to display.
| Setting | Description |
|---|---|
| Select All | Displays all available graphs for any or all disks selected on the Disks dropdown list. |

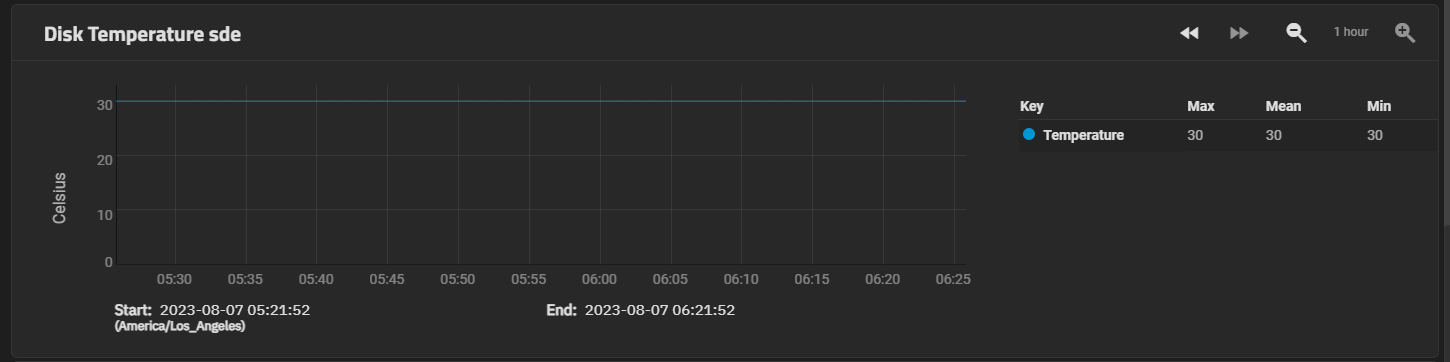

| Disk Temperature | Displays the minimum, maximum and mean temperature reading for the disk selected. |

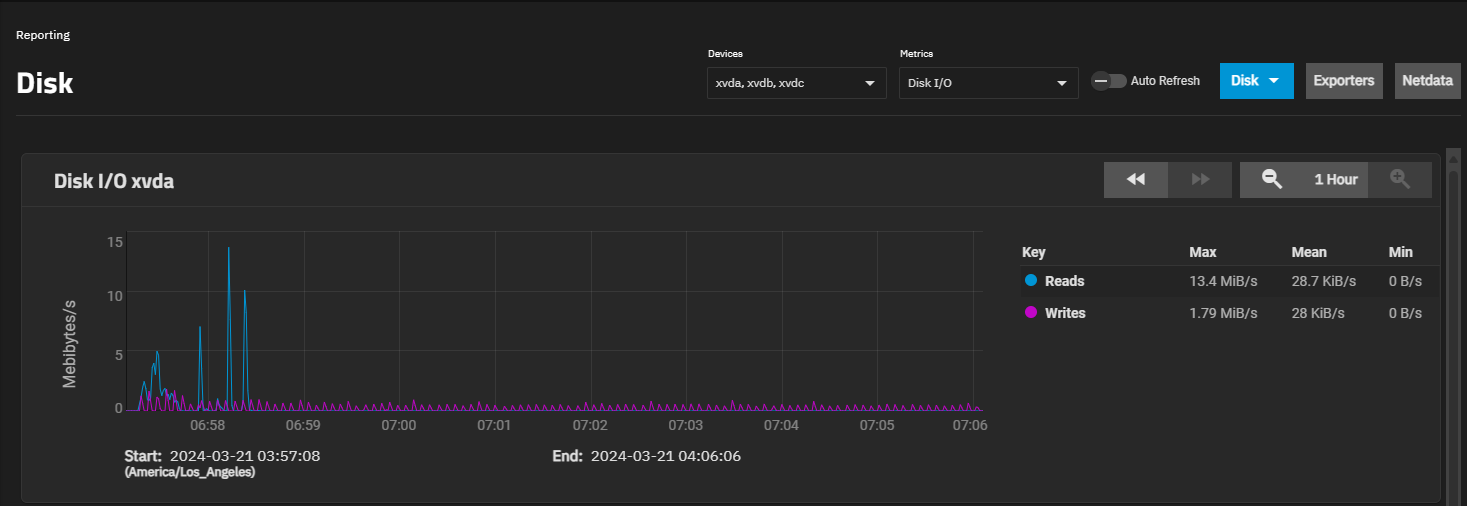

| Disk I/O | Displays the disk read and write I/O stats in bytes/s. |
Temperature monitoring for the disk is disabled if HDD Standby is enabled. Check the Storage > Disks Edit Disk* configuration form for any or all disks in the system if you do not see the temperature monitoring graph.
Large petabyte systems may report storage numbers inaccurately. Storage configurations with more than 9,007,199,254,740,992 bytes will round the last 4 digits.
For example, a system with 18,446,744,073,709,551,615 bytes reports the number as 18,446,744,073,709,552,000 bytes.

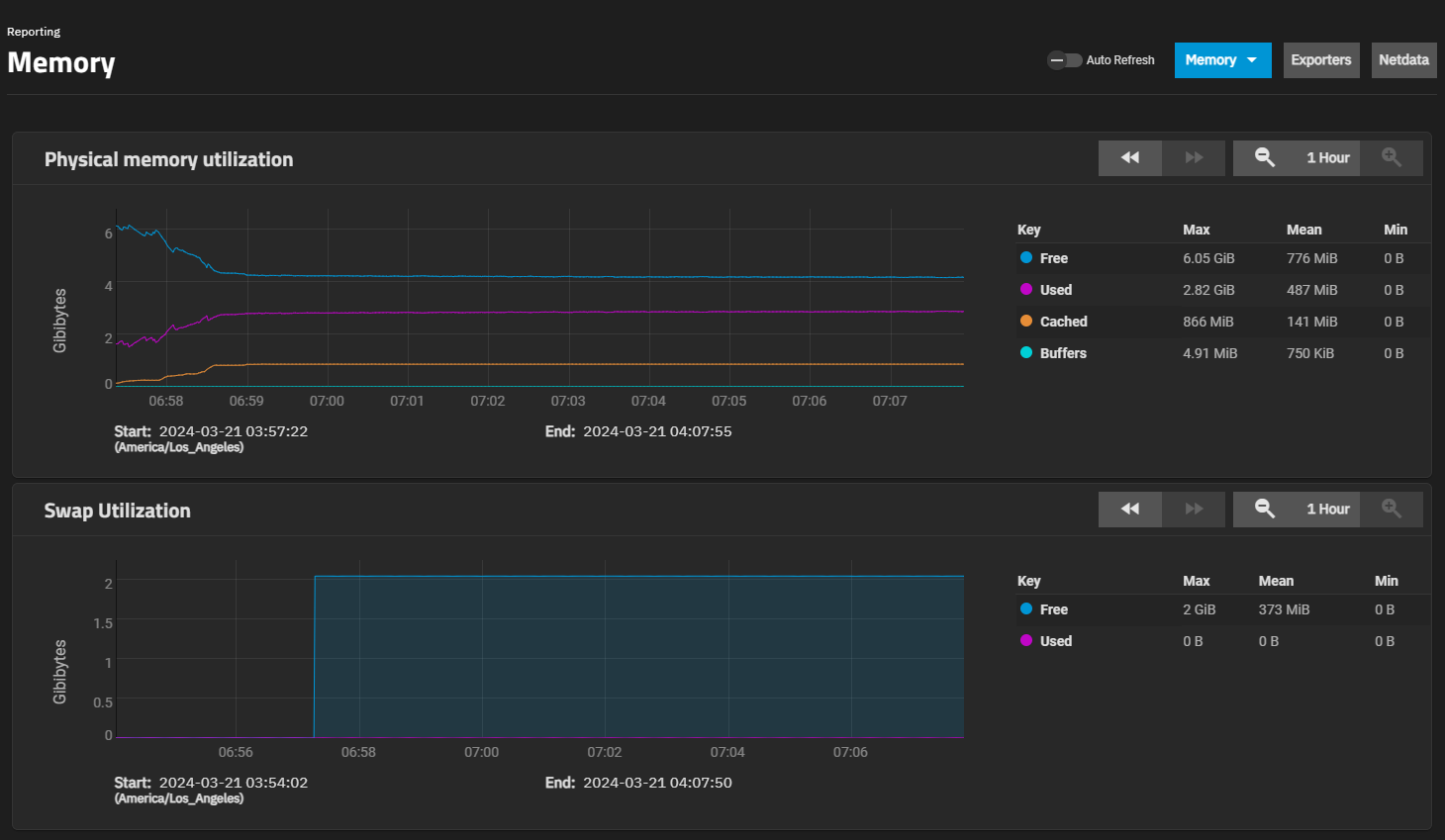

Displays both the Physical memory utilization and Swap utilization graphs.
Click Here for More Information
Memory graphs display memory usage and swap graphs display the amount of free and used swap space.
Displays an Interface Traffic graph for each interface in the system.
Displays both the Processes and Uptime graphs.

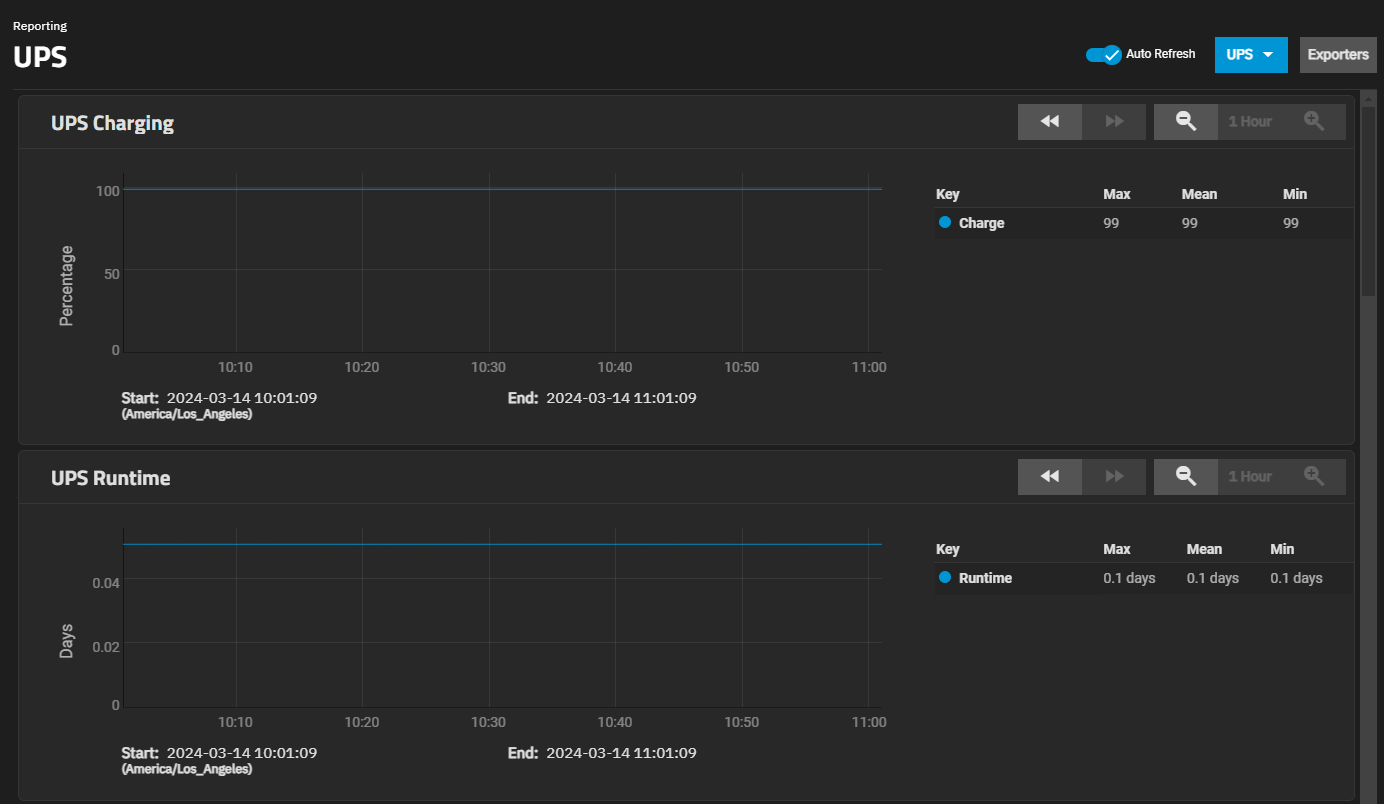

Displays the UPS Charging percentage, UPS Runtime, UPS Voltage - Battery, UPS Voltage - Input, UPS Voltage - Output, UPS Input Current, UPS Input Frequency, UPS Input Load, and UPS Temperature. The UPS service must be configured with a compatible Uninterruptible Power Supply (UPS) device.

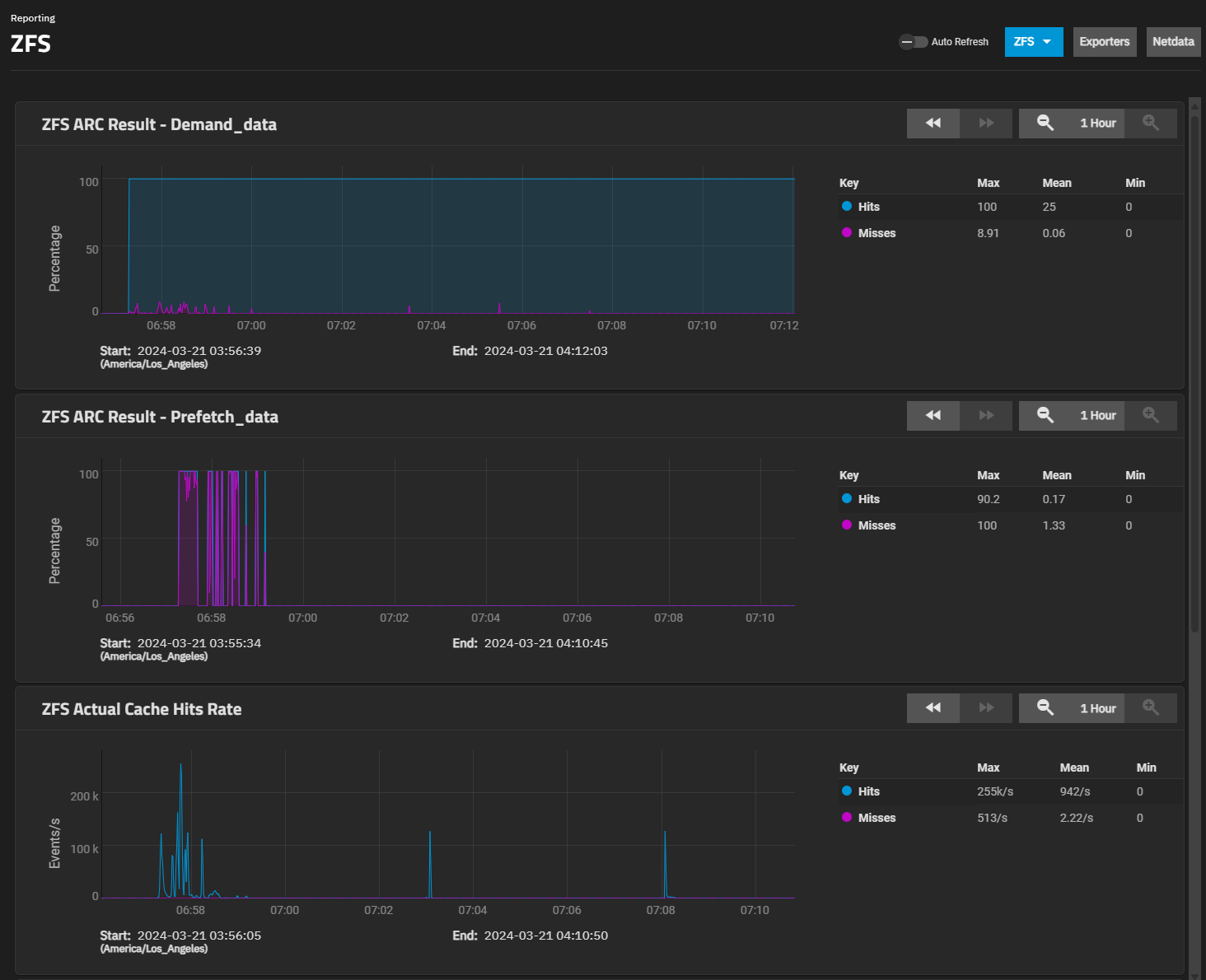

Displays the ARC Size, ARC Hit Ratio, ARC Requests demand_data, ARC Requests demand_metadata, ARC Requests prefetch_data, and ARC Requests prefetch_metadata graphs with the Arc and L2 gigabytes and hits (%), and the hits, misses and total number of requests.
Click Here for More Information

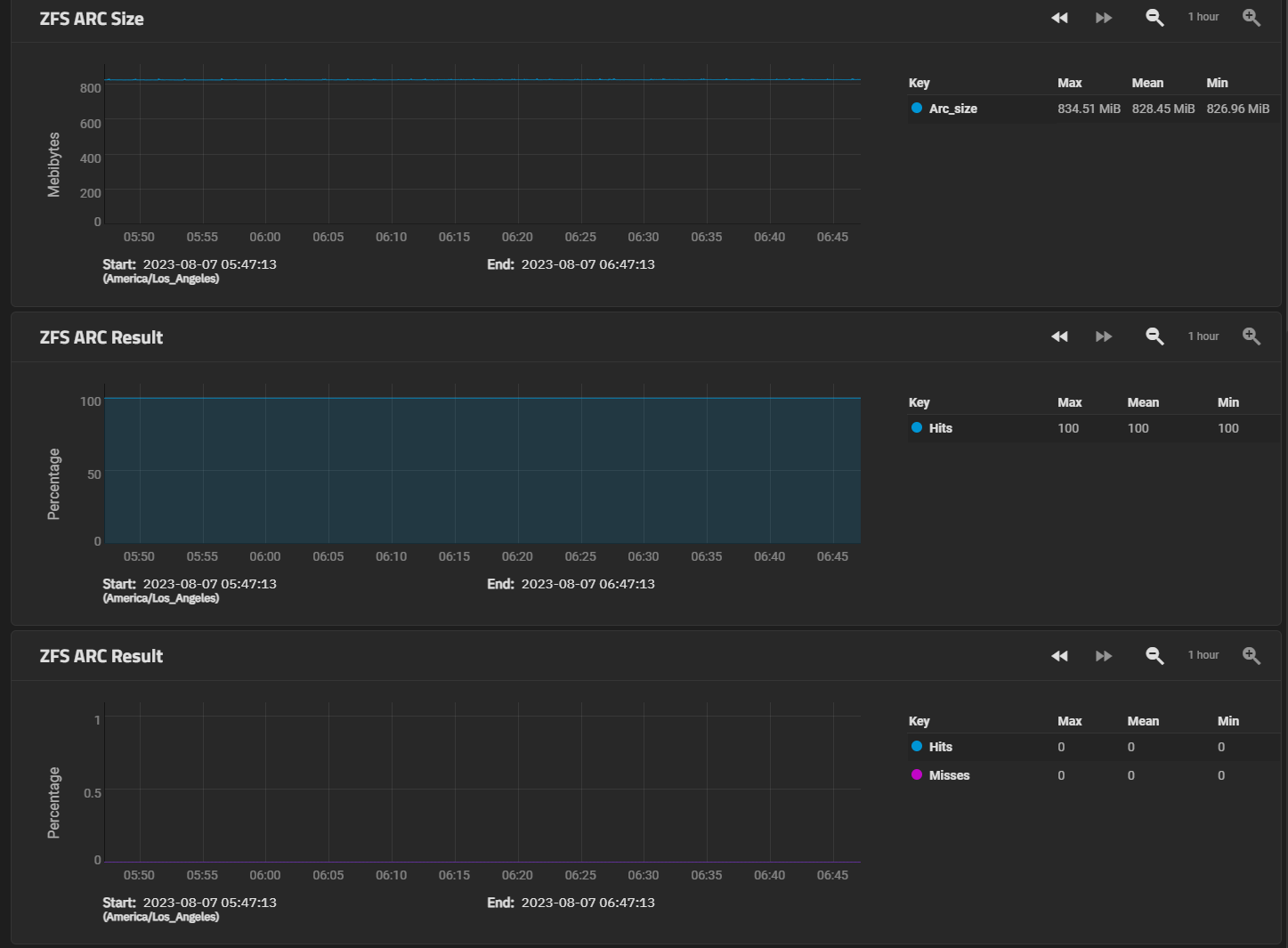

ZFS graphs show compressed physical ARC size, hit ratio, demand data, demand metadata, and prefetch data and metadata.
Exporter on the Reporting screen opens the Reporting Exporter screen. The Reporting Exporters screen displays reporting exporters configured on the system. Exporting enables TrueNAS SCALE to send Netdata reporting metrics to another time-series database. Exporters send Netdata reporting records in the form of JSON objects to third party reporting collection cloud services or applications installed on servers. For more information, see the Netdata exporting reference guide.
Add opens the Add Reporting Exporter screen.
Use the Add Reporting Exporter screen to configure third party reporting integrations.
| Setting | Description |
|---|---|
| Name | Enter a unique name for the exporter configuration. If configuring multiple instances, give each a distinct name. |
| Type | Select the report object format. At present, GRAPHITE is the only current supported option. Selecting GRAPHITE displays the exporter configuration settings |
| Enable | Select to enable sending reporting data to the configured exporter. Leave checkbox clear to disable the explorer without removing configuration. |
Additional settings populate based on the selected Type option.
See Adding a Reporting Exporter for guidance with configuring a Graphite exporter on TrueNAS.
