Devices Screens

The Devices screen lists VDEVS configured for the selected pool. Go to Storage > Topology > Manage Devices to view the Devices screen.

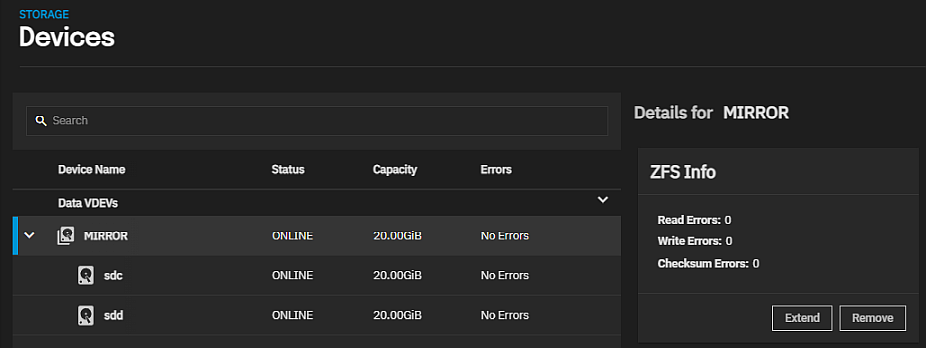

Click anywhere on the VDEV to see the drives included in it and the ZFS Info widget for that VDEV.

Click anywhere on a drive to see the drive widgets.

Add VDEV opens the Add a VDEVs to Pool screen with the Pool Manager for the selected pool. For example, find the Topology widget for a pool and click Manage Devices. This opens the Pool Creation Wizard with tank prepopulated and uneditable.

There are two versions of the ZFS Info widget, one for the VDEV and the other for each drive in the VDEV. The ZFS Info widget for the VDEV displays a count of read, write and checksum errors for that VDEV, and the Extend and Remove options.

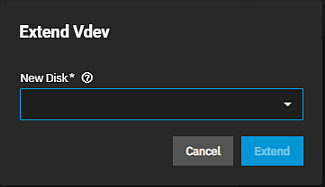

Extend opens the Extend VDEV dialog where you select a disk from the New Disk dropdown to add a new disk to the VDEV.

Remove opens the Remove device dialog where you confirm you want to remove the selected VDEV. To remove a drive from the VDEV, select the drive then select Detach on the ZFS Info widget to remove the drive from the VDEV (pool).

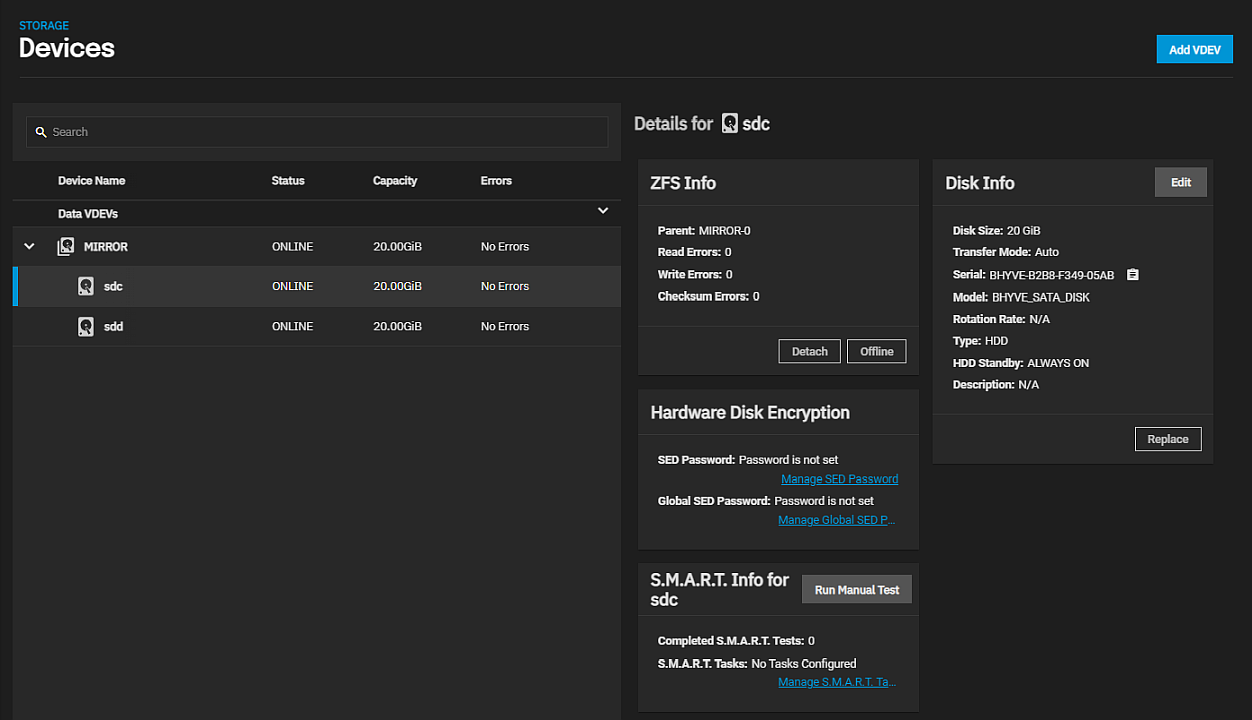

Each disk in a VDEV has a set of four widgets that provide information on that disk. After selecting a disk the widgets display on the right side of the screen in the Details for diskname area of the screen.

The ZFS Info widget for each device (disk drive) in the VDEV displays the name of the VDEV (Parent) the read, write, and checksum errors for that drive, and the Detach and Offline options.

Click Here for More Information expand

Detach opens a confirmation dialog and removes the selected drive from the parent VDEV.

Offline opens a confirmation dialog and takes the selected drive to an offline state. After taking a drive offline you can remove or replace the physical drive.

The Hardware Disk Encryption widget provides information on the drive SED password status (set, not set).

Click Here for More Information expand

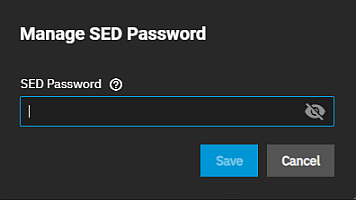

The widget allows you to set the disk encryption password through the Manage SED Password link that opens a Manage SED Password dialog where you can enter an SED password for the drive.

The widget allows you to set the disk encryption password through the Manage SED Password link that opens a Manage SED Password dialog where you can enter an SED password for the drive.

The widget also provides the status of the Global SED Password (set or not set) and the Manage Global SED Password link that opens the System Settings > Advanced screen where you can change the global SED password that overrides the disk passwords.

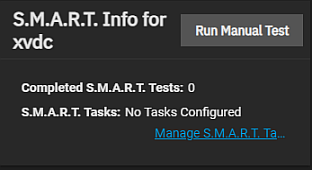

The S.M.A.R.T. Info for devicename widget, where devicename is the name of the disk, provides the number of Completed S.M.A.R.T. Tests and the number of S.M.A.R.T. Tests configured on the system.

Click Here for More Information expand

The Manage SMART Tasks link opens the Data Protection > SMART Tests details screen where you find the list of SMART tests configured on your system. Run Manual Test opens the Manual S.M.A.R.T. Test dialog if the disk is compatible with SMART tests or opens an information dialog if it is not.

The Type dropdown list includes the LONG, SHORT, CONVEYANCE, and OFFLINE options, and the Cancel and Start buttons.

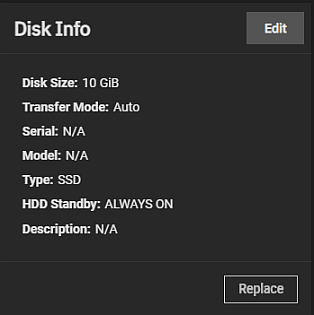

The Disk Info widget displays information on the Disk Size, Transfer Mode, the Serial and Model numbers for the drive, the Type of drive it is, the HDD Standby setting, and any Description associated with the selected drive.

Click Here for More Information expand

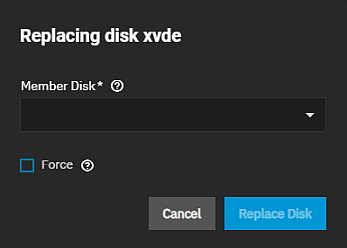

Replace opens the Replacing disk diskname dialog, where diskname is the name of the selected disk.

Select the new disk for the pool from the Member Disk dropdown list. The system prevents losing existing data by stopping the add operation for the new disk if the disk is already in use or has partitions present.

Force overrides the safety check and adds the disk to the pool. Selecting this option erases any data stored on the disk!

Replace Disk adds the new disk to the pool.
