This content follows the TrueNAS SCALE 22.12 (Bluefin) releases. Archival documentation is provided for reference only and not actively maintained.
Use the Product and Version selectors above to view content specific to different TrueNAS software or major version.
Email Screens
2 minute read.
Last Modified 2023-08-31 13:31 EDTThe Email screens lets you set up a system email address using one of two options to set up email. Select either SMTP or GMail OAuth. The configuration screen settings change based on the selected radio button.
The default GMail OAuth screen display changes after you select Login In To GMail and complete the authentication process for Gmail.
The Send Test Mail button generates a test email to confirm the system email works correctly.

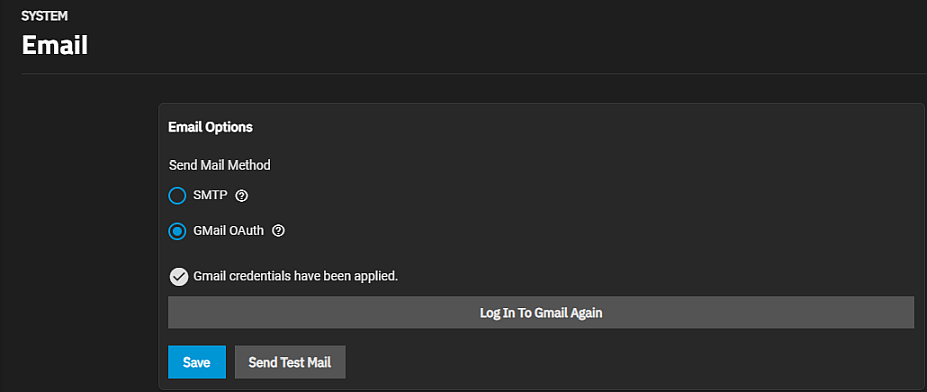

After setting up Gmail OAuth authentication, the screen displays Gmail credentials have been applied and the login button changes to Log In To Gmail Again.
Save stores the email configuration but does not close the Email screen. Select an option from the main navigation panel on the left side of the screen to move away from the Email screen.
| Setting | Description |
|---|---|
| From Email | The user account email address to use for the envelope From email address. You must first configure the user account email in Credentials > Local Users. |
| From Name | The friendly name to show in front of the sending email address. Example: StorageSystem01it@example.com |
| Outgoing Mail Server | Host name or IP address of SMTP server to use for sending this email. |
| Mail Server Port | MTP port number. Typically 25, or use 465 (secure SMTP) or 587 (submission). |
| Security | Select the security option from the dropdown list. Options are Plain (No Encryption), SSL (Implicit TLS), or TLS (STARTTLS). See email encryption for more information on types. |
| SMTP Authentication | Select to enable SMTP AUTH using PLAIN SASL. Requires a valid user name and password. |
