Block Shares (iSCSI)
6 minute read.
Last Modified 2024-03-19 08:47 EDTInternet Small Computer Systems Interface (iSCSI) represents standards for using Internet-based protocols for linking binary data storage device aggregations. IBM and Cisco submitted the draft standards in March 2000. Since then, iSCSI has seen widespread adoption into enterprise IT environments.
iSCSI functions through encapsulation. The Open Systems Interconnection Model (OSI) encapsulates SCSI commands and storage data within the session stack. The OSI further encapsulates the session stack within the transport stack, the transport stack within the network stack, and the network stack within the data stack. Transmitting data this way permits block-level access to storage devices over LANs, WANs, and even the Internet itself (although performance may suffer if your data traffic is traversing the Internet).
The table below shows where iSCSI sits in the OSI network stack:
OSI Layer Number | OSI Layer Name | Activity as it relates to iSCSI |
---|---|---|
7 | Application | An application tells the CPU that it needs to write data to non-volatile storage. |
6 | Presentation | OSI creates a SCSI command, SCSI response, or SCSI data payload to hold the application data and communicate it to non-volatile storage. |
5 | Session | Communication between the source and the destination devices begins. This communication establishes when the conversation starts, what it talks about, and when the conversion ends. This entire dialogue represents the session. OSI encapsulates the SCSI command, SCSI response, or SCSI data payload containing the application data within an iSCSI Protocol Data Unit (PDU). |
4 | Transport | OSI encapsulates the iSCSI PDU within a TCP segment. |
3 | Network | OSI encapsulates the TCP segment within an IP packet. |
2 | Data | OSI encapsulates the IP packet within the Ethernet frame. |
1 | Physical | The Ethernet frame transmits as bits (zeros and ones). |

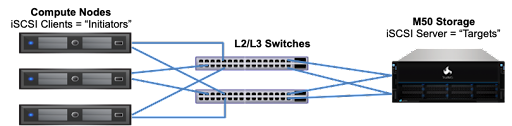

Unlike other sharing protocols on TrueNAS, an iSCSI share allows block sharing and file sharing. Block sharing provides the benefit of block-level access to data on the TrueNAS. iSCSI exports disk devices (zvols on TrueNAS) over a network that other iSCSI clients (initiators) can attach and mount.
- Adding iSCSI Block Shares: Provides instructions on setting up iSCSI block shares manually or using the wizard and starting the service.
- Using an iSCSI Share: Provides information on setting up a Linux or Windows system to use a TrueNAS-configured iSCSI block share.
- Increasing iSCSI Available Storage: Provides information on increasing available storage in zvols and file LUNs for iSCSI block shares.
