TrueNAS CORETrueNAS CORE Version Documentation
This content follows the TrueNAS CORE 13.0 releases. Use the Product and Version selectors above to view content specific to different TrueNAS software or major version.

Advanced

System > Advanced contains advanced options for configuring system settings.

These options have reasonable defaults in place. Make sure you are comfortable with ZFS, FreeBSD, and system configuration backup and restoration before making any changes.

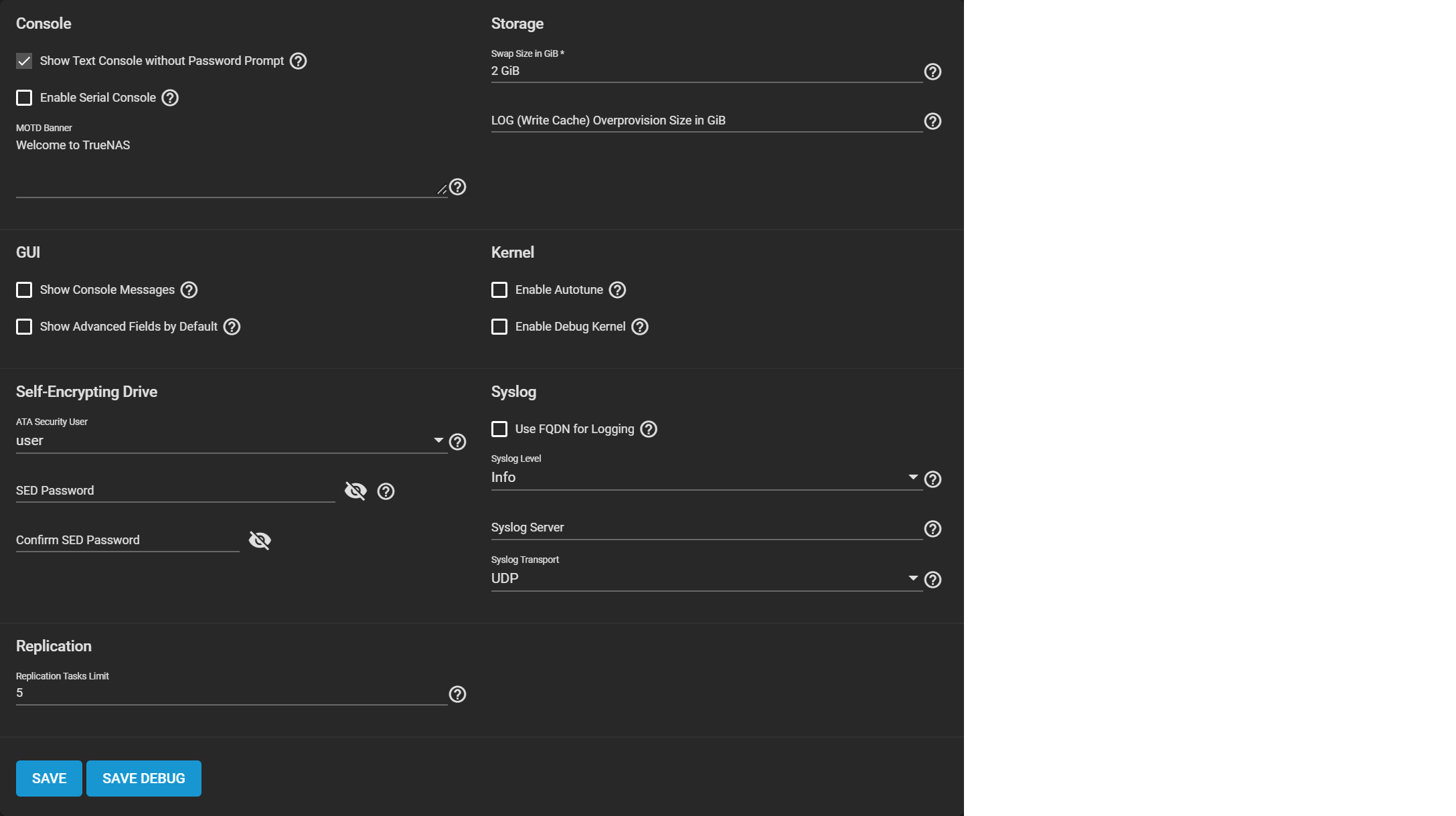

System Advanced13

Console

NameDescription
Show Text Console without Password PromptUnset to add a login prompt to the system before the console menu is shown.
Enable Serial ConsoleDo not set this if the Serial Port is disabled. Serial Port and Serial Speed options are visible when this is set.
Serial PortWhen Enable Serial Console is set, the available serial port hex addresses are 0x2F8 or 0x3f8.
Serial SpeedsWhen Enable Serial Console is set, the available serial speeds that can be used by the serial port are 9600 bps, 19200 bps, 38400 bps, 57600 bps, or 115200bps.
MOTD BannerThe message to show when a user logs in with SSH.

Storage

NameDescription
Swap Size in GiB (CORE only)By default, all data disks are created with the amount of swap specified. Changing the value does not affect the amount of swap on existing disks, only disks added after the change. Does not affect log or cache devices as they are created without swap. Setting to 0 disables swap creation completely. STRONGLY DISCOURAGED
LOG (Write Cache) Overprovision Size in GiBOverprovisioning a ZFS Log SSD can increase its performance and lifespan by distributing writes and erases across more drive flash blocks. Defining a number of GiB here overprovisions ZFS Log disks during pool creation or extension. Examples: 50 GiB, 10g, 5GB

GUI

NameDescription
Show Console MessagesDisplay console messages in real time at the bottom of the browser.
Show Advanced Fields by DefaultSet to always show advanced fields, when available.

Kernel

NameDescription
Enable AutotuneActivates a tuning script which attempts to optimize the system depending on the installed hardware. Warning: Autotuning is only used as a temporary measure and is not a permanent fix for system hardware issues.
Enable Debug KernelSet to boot a debug kernel after the next system reboot.

Self-Encrypting Drive

NameDescription
ATA Security UserUser passed to camcontrol security -u to unlock SEDs
SED PasswordGlobal password to unlock SEDs.

Syslog

NameDescription
Use FQDN for LoggingSet to include the Fully-Qualified Domain Name (FQDN) in logs to precisely identify systems with similar hostnames.
Syslog LevelWhen Syslog Server is defined, only logs matching this level are sent.
Syslog ServerRemote syslog server DNS hostname or IP address. Nonstandard port numbers can be used by adding a colon and the port number to the hostname, like mysyslogserver:1928. Log entries are written to local logs and sent to the remote syslog server.
Syslog TransportTransport Protocol for the remote system log server connection. Choosing Transport Layer Security (TLS) also requires selecting a preconfigured system Certificate.

Replication

NameDescription
Replication Tasks LimitLimit the maximum number of replication tasks that can be executed simultaneously.

SAVE DEBUG generates text files that contain diagnostic information.
