LDAP Screen

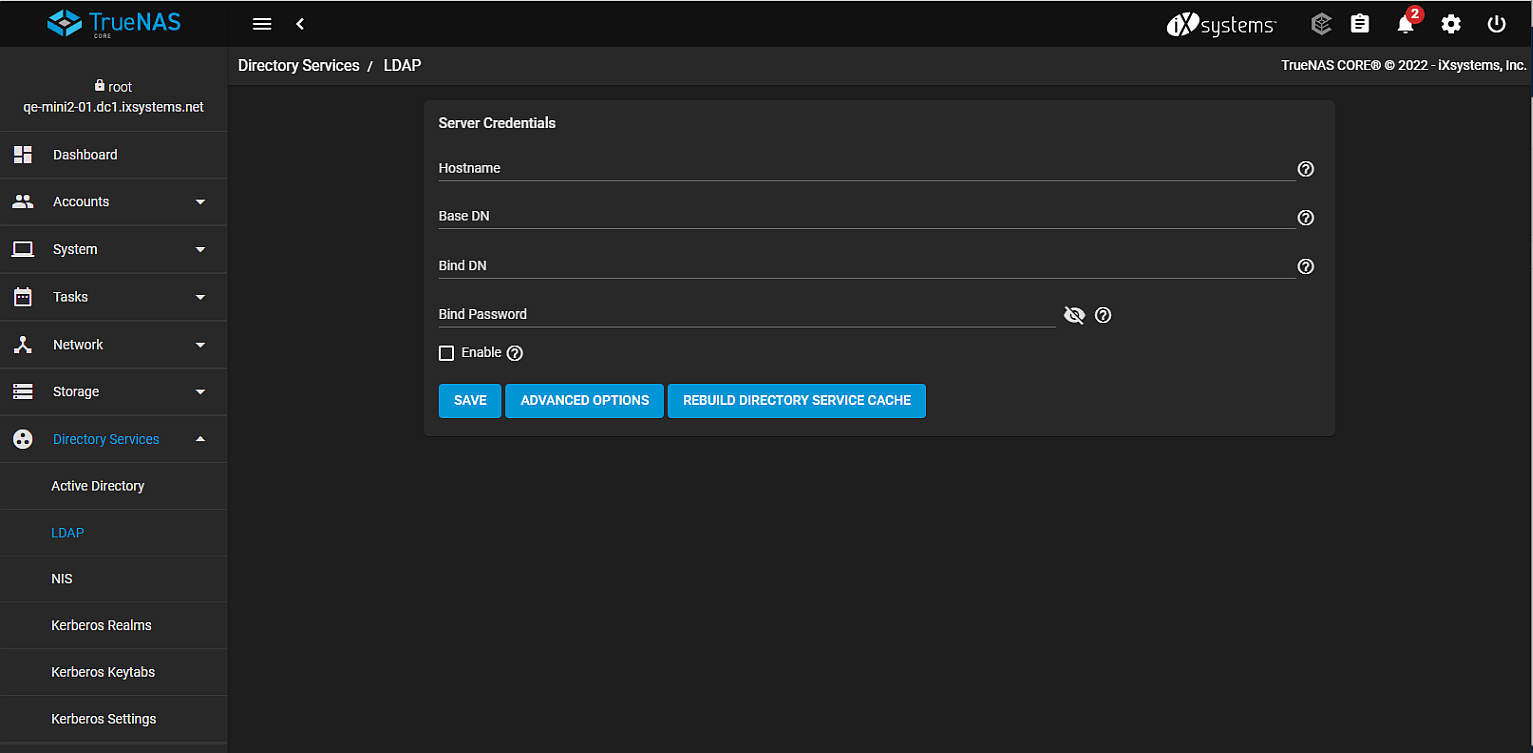

Lightweight Directory Access Protocol (LDAP) is an industry standard. Directory information services deployed over an Internet Protocol (IP) network can use LDAP. Configure LDAP server settings on your TrueNAS using the Directory Services > LDAP screen.

DirectoryServicesLDAPScreen

Click SAVE to save settings.

Click ADVANCED OPTIONS to display extra LDAP configuration options.

Click REBUILD DIRECTORY SERVICE CACHE to resync the cache if it becomes out of sync. Or if fewer users than expected are available in the permissions editors.

Basic Options

LDAPBasicOptions

NameDescription
HostnameEnter the LDAP server host names or IP addresses. Separate entries with an empty space. To create an LDAP failover priority list, enter more than one host name or IP address. If a host does not respond, the system tries the next host on the list. This continues until the new connection succeeds.
Base DNTop level of the LDAP directory tree to use when searching for resources. For example, dc=test,dc=org.
Bind DNEnter an administrative account name on the LDAP server. For example, cn=Manager,dc=test,dc=org.
Bind PasswordEnter the password for the administrative account in Bind DN.
EnableSelect to activate the configuration. Leave checkbox clear to disable the configuration without deleting it.

Advanced Options

LDAPAdvancedOptions

NameDescription
Allow Anonymous BindingSelect to disable authentication and allow read and write access to any client.
Kerberos RealmSelect an option configured on your system from the dropdown list.
Kerberos PrincipleSelect an option configured on your system from the dropdown list.
Encryption ModeSelect an encryption mode for the LDAP connection from the dropdown list. Select OFF to not encrypt the LDAP connection. Select ON to encrypt the LDAP connection with SSL on port 636. Select START_TLS to encrypt the LDAP connection with STARTTLS. This option uses the default LDAP port 389.
CertificateA certificate is not required when using a username and password. A certificate is not required when using Kerberos authentication. Select a certificate added to your system from the dropdown list. The default option is freenas_default. Or add a new LDAP certificate-based authentication for the LDAP provider to sign. See Certificate Signing Requests for more information.
Validate CertificatesSelect to validate the authenticity of the certificate.
Disable LDAP User/Group CacheSelect to disable caching LDAP users and groups in large LDAP environments. When disabled, LDAP users and groups do not display on dropdown lists. They are still accepted when typed into fields.
LDAP timeoutDefault value is 10 seconds. Increase if Kerberos ticket queries are not responding within the default time.
DNS timoutDefault value is 10 seconds. Increase if DNS queries take too long to respond.
Samba Schema (DEPRECATED - see help text)Samba 4.13.0 deprecated Samba Schema. Select if SMB shares need LDAP authentication and the LDAP server is already configured with Samba attributes. If selected, specify the type of schema from the Schema dropdown list.
Auxiliary ParametersEnter for nslcd.conf.
SchemaSelect the Samba schema from the dropdown list. Options are RFC2307 or RFC2307BIS.

Click SAVE to save settings and return to the LDAP screen.

Click BASIC OPTIONS to return to the LDAP display of basic options only.

Click EDIT IDMAP to navigate to the Directory Services > Idmap screen.
