SOLVED ZFS Volume Status unknown after CPU Upgrade

Dicken90

Dabbler
Joined
Apr 5, 2017
Messages
16
UPDATE: it is booting, but take very long and now my ZFS Volume is in Unknown status :(

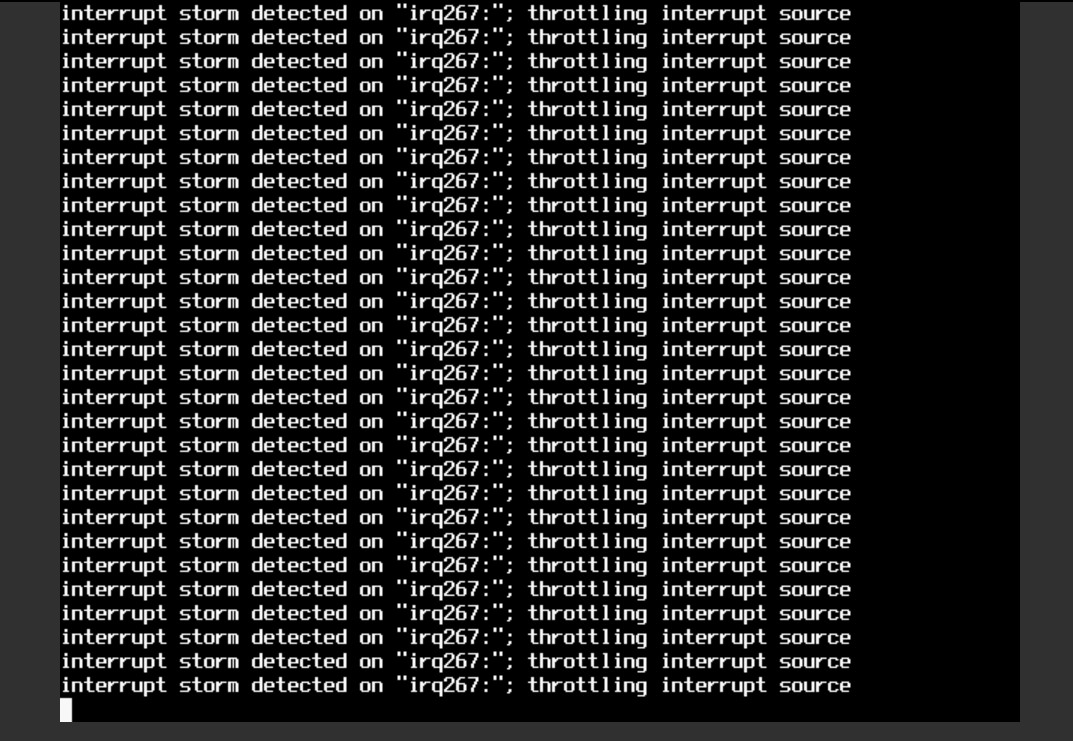

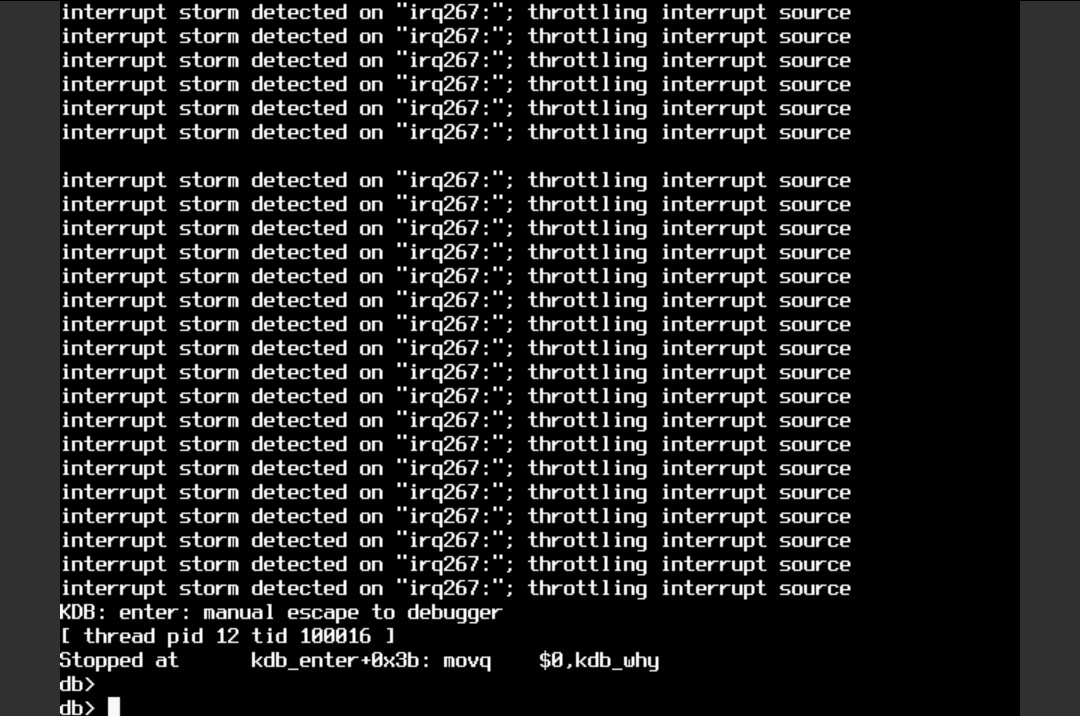

and i still get the interrupt storm message every second.

Is it possible that the RAID controller has not been connected correctly?

HP Microserver Gen8
16GB RAM
New CPU: Intel Xeon E3-1260L


Hello everyone,

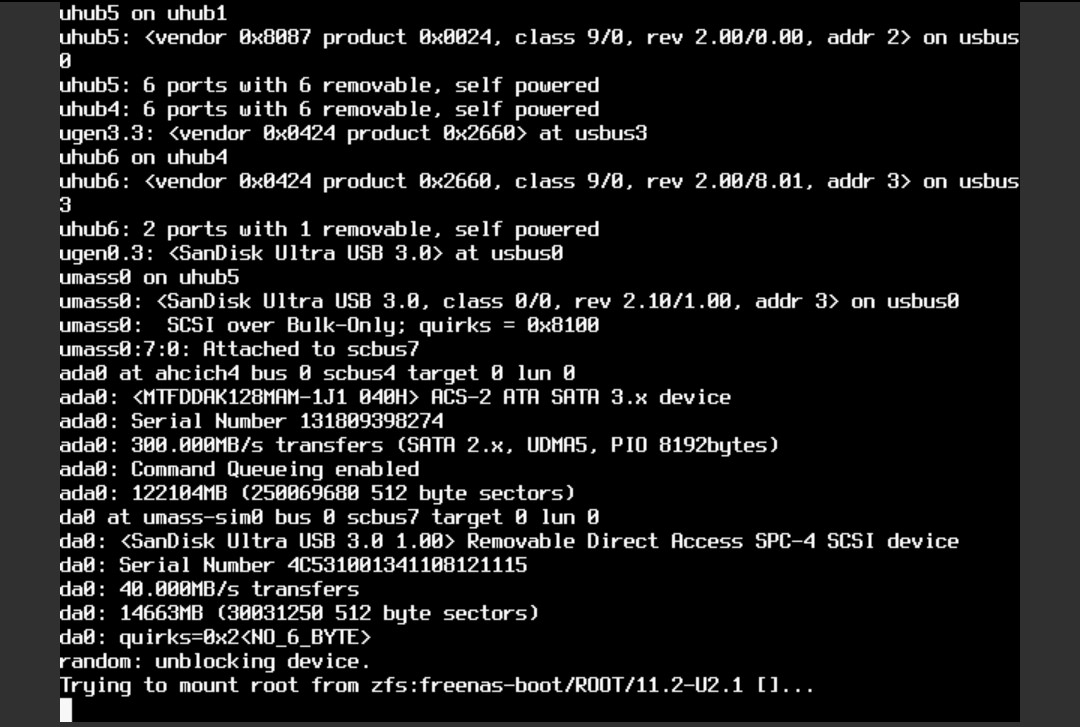

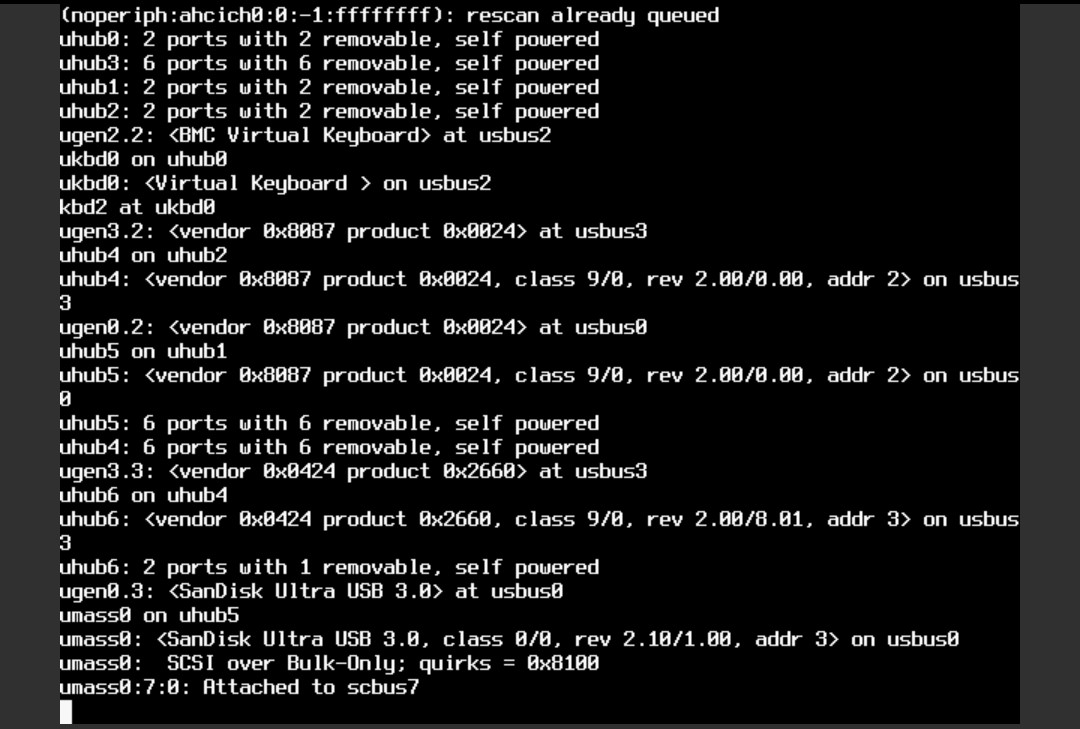

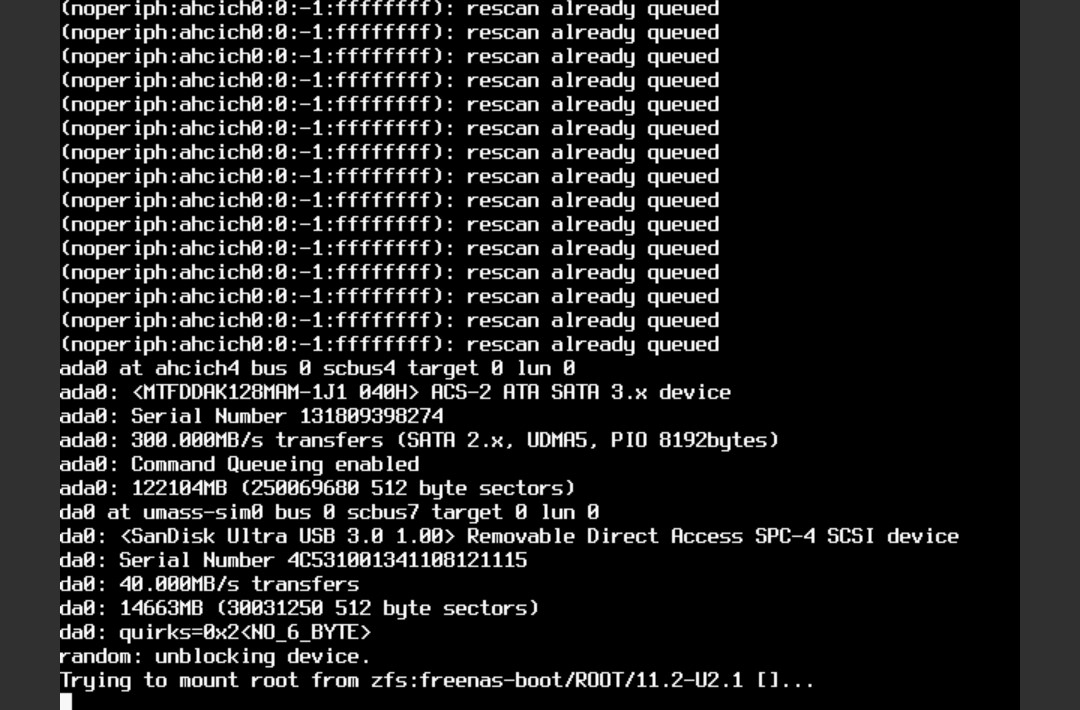

yesterday I replaced the CPU of my server with one with more cores (Intel Xeon E3-1260L) and since then my Freenas 11.2 doesn't boot anymore. I only get the following messages:





I've already googled after it, but found nothing.

i hope someone can help me.

Greetings
D1Ck3n

Last edited:

Chris Moore

Hall of Famer
Joined
May 2, 2015
Messages
10,080
Is that CPU compatible with the system?
Did you have the pool encrypted?


Dicken90

Dabbler
Joined
Apr 5, 2017
Messages
16
Hi, yes the CPU is compatible with the system, it is detected in POST and in FreeNAS Webinterface.

No, the pool is not encrypted


Redcoat

MVP
Joined
Feb 18, 2014
Messages
2,924
If you have any add-on devices such as a PCIe network card or an external USB drive, I suggest you remove them as a test and try again.


Dicken90

Dabbler
Joined
Apr 5, 2017
Messages
16
mhhhh, i have no PCIe card in the server but i have a USB Stick inside. I'll remove that and test again.


Dicken90

Dabbler
Joined
Apr 5, 2017
Messages
16

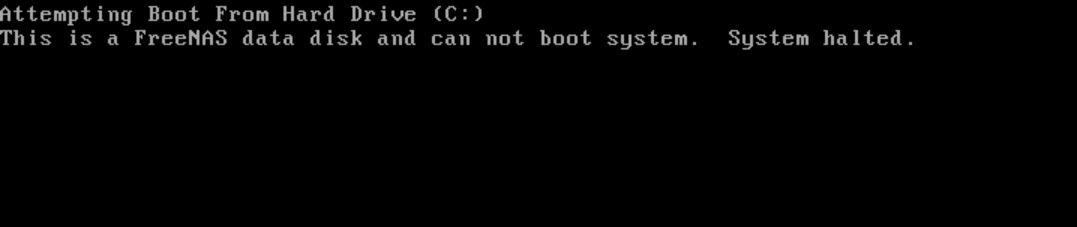

So, i removed the usb stick but now i got the following error:


My Freenas is installed on a SSD i connected with the single Sata port in the server. I think boot from HDD is my storage bay. How do is boot from SATA?


Redcoat

MVP
Joined
Feb 18, 2014
Messages
2,924
Well, it looks to me like you were booting from that USB in fact, and it likely failed. You now need to look in your bios and tell the machine to boot from the SSD. If you have FreeNAS installed on it and it's not corrupt, all shoud be well., hopefully. If all isn't well, reinstall FreeNAS on the SSD.


Dicken90

Dabbler
Joined
Apr 5, 2017
Messages
16
Hi,

I think I solved it! But I can't say exactly how I solved it. I opened the server again and reconnected all cables. Actually it boots normally again. Nevertheless thanks for the answers!

Greetings
D1Ck3n
