SOLVED Unable to unlock pool over UI after upgrade 11.0 to 11.2

pedda83

Cadet
Joined
Mar 23, 2019
Messages
2
Date: 23.03.2019
Version: FreeBSD freenas.local 11.2-STABLE FreeBSD 11.2-STABLE #0 r325575+3b66a34f3aa(HEAD): Wed Feb 27 14:31:54 EST 2019 root@nemesis.tn.ixsystems.com:/freenas-releng/freenas/_BE/objs/freenas-releng/freenas/_BE/os/sys/FreeNAS.amd64 amd64
user: root

Hello, I upgraded today my FreeNas System to the version 11.2 (see above). The upgrade was done over the browser interface. No error showed up while upgrading, the computer rebooted and I´m able to login in again over the browser interface.

I have two decryped zpools (2x Raid5) on the system for data and a ssd where FreeNas is running on.

Problem Description:
- root opens browser and login
- root clicks on 'Storage'
- root clicks on 'Pools' --> 2 zpools are shown locked
- root clicks on Pool and on Icon 'unlock'
- root enters passphrase for pool
- root clicks on button 'unlock'

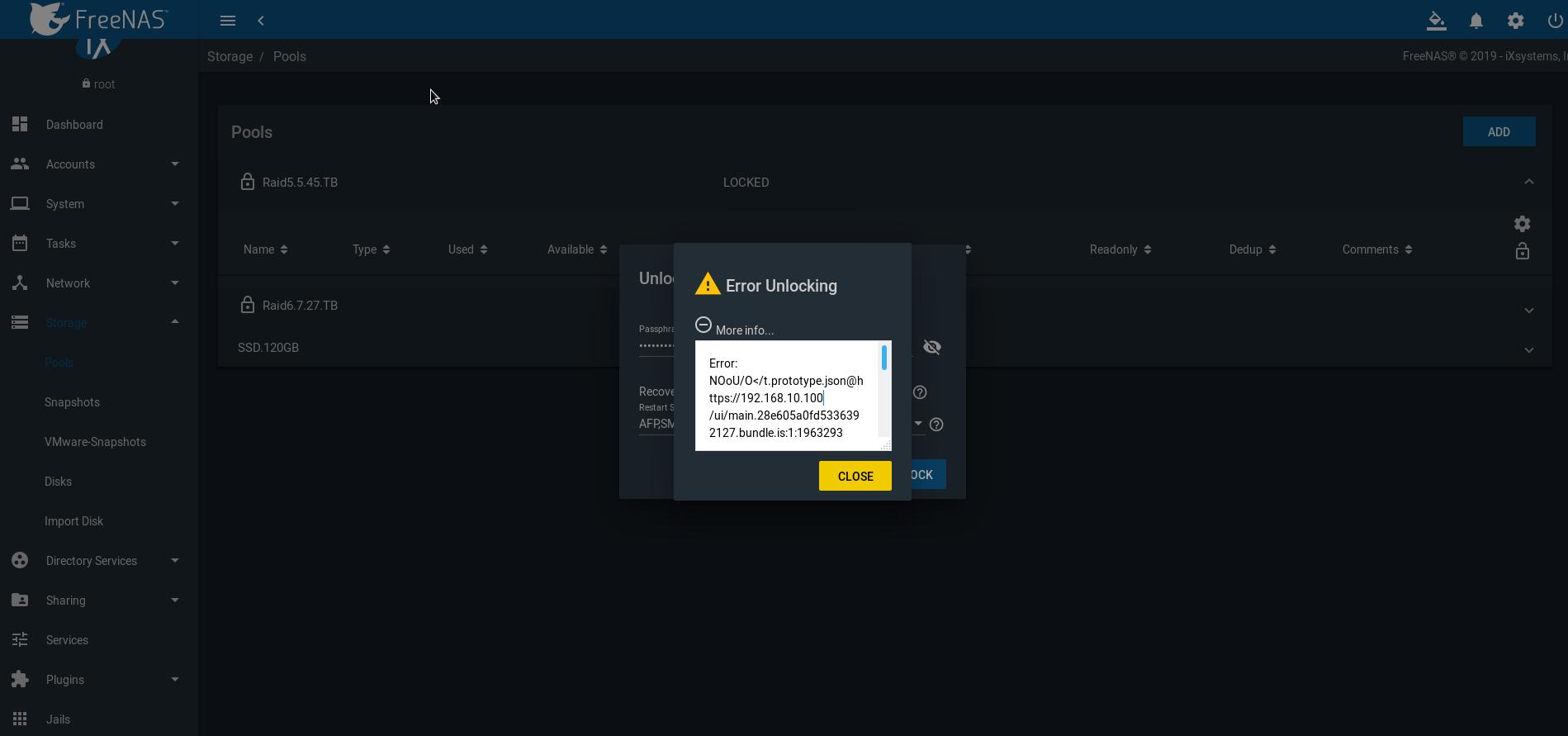

Result: Error Message shows up (see picture)

Error: NOoU/O</t.prototype.json@https://192.168.10.100/ui/main.28e605a0fd5336392127.bundle.js:1:1963293
NdJX/u</t.prototype.handleError@https://192.168.10.100/ui/main.28e605a0fd5336392127.bundle.js:1:1974166
LxNc/l</e.prototype.error@https://192.168.10.100/ui/main.28e605a0fd5336392127.bundle.js:1:1853046
mmVS/s</e.prototype._error@https://192.168.10.100/ui/main.28e605a0fd5336392127.bundle.js:1:3751537
mmVS/s</e.prototype.error@https://192.168.10.100/ui/main.28e605a0fd5336392127.bundle.js:1:3751243
a@https://192.168.10.100/ui/main.28e605a0fd5336392127.bundle.js:1:1965456
i@https://192.168.10.100/ui/main.28e605a0fd5336392127.bundle.js:1:864432
ZSR1/</</</u</t.prototype.invokeTask@https://192.168.10.100/ui/polyfills.4e42ab25a6112b333361.bundle.js:1:44110
onInvokeTask@https://192.168.10.100/ui/main.28e605a0fd5336392127.bundle.js:1:2622035
ZSR1/</</</u</t.prototype.invokeTask@https://192.168.10.100/ui/polyfills.4e42ab25a6112b333361.bundle.js:1:44023
ZSR1/</</</o</n.prototype.runTask@https://192.168.10.100/ui/polyfills.4e42ab25a6112b333361.bundle.js:1:39280
ZSR1/</</</c</n.invokeTask@https://192.168.10.100/ui/polyfills.4e42ab25a6112b333361.bundle.js:1:45204
m@https://192.168.10.100/ui/polyfills.4e42ab25a6112b333361.bundle.js:1:55905
b@https://192.168.10.100/ui/polyfills.4e42ab25a6112b333361.bundle.js:1:56137


Comment:
-The same error occurs when providing the 'Recovery Key'
-Error occurs as well for the other zpool

-its still possible to import the zpool over shell and have access to the data with:

geli attach -k /data/geli/veryprivate.key /dev/ada1p2
geli attach -k /data/geli/veryprivate.key /dev/ada2p2
geli attach -k /data/geli/veryprivate.key /dev/ada3p2
zpool import -R /mnt Raid5.5.45.TB


Here maybe some helpful shell outputs:
___________________________________________________________________________________________________________________________
root@freenas:/var/log # glabel status
Name Status Components
gptid/422ef607-d36f-11e7-b93d-305a3a7f8b4c N/A ada0p2
gptid/0d78187b-d2b1-11e7-a724-305a3a7f8b4c N/A ada1p2
gptid/0e3dffb1-d2b1-11e7-a724-305a3a7f8b4c N/A ada2p2
gptid/0f09c2c2-d2b1-11e7-a724-305a3a7f8b4c N/A ada3p2
gptid/431a9188-d36f-11e7-b93d-305a3a7f8b4c N/A ada4p2
label/efibsd N/A ada5p1
gptid/81d5b9b4-d2ad-11e7-ab2f-305a3a7f8b4c N/A ada5p1
gptid/eb7e4ee2-d5be-11e7-8fa1-305a3a7f8b4c N/A ada6p2
gptid/440db791-d36f-11e7-b93d-305a3a7f8b4c N/A ada7p2
gptid/42235cea-d36f-11e7-b93d-305a3a7f8b4c N/A ada0p1

___________________________________________________________________________________________________________________________
root@freenas:/var/log # zpool status
pool: SSD.120GB
state: ONLINE
status: Some supported features are not enabled on the pool. The pool can
still be used, but some features are unavailable.
action: Enable all features using 'zpool upgrade'. Once this is done,
the pool may no longer be accessible by software that does not support
the features. See zpool-features(7) for details.
scan: scrub repaired 0 in 0 days 00:00:22 with 0 errors on Sun Nov 4 00:00:22 2018
config:


NAME STATE READ WRITE CKSUM
SSD.120GB ONLINE 0 0 0
gptid/eb7e4ee2-d5be-11e7-8fa1-305a3a7f8b4c ONLINE 0 0 0


errors: No known data errors

pool: freenas-boot
state: ONLINE
scan: scrub repaired 0 in 0 days 00:00:14 with 0 errors on Fri Jan 18 03:45:14 2019
config:


NAME STATE READ WRITE CKSUM
freenas-boot ONLINE 0 0 0
ada5p2 ONLINE 0 0 0


errors: No known data errors
___________________________________________________________________________________________________________________________
root@freenas:/var/log # cat debug.log
Mar 23 11:06:25 freenas uwsgi: [freeadmin.navtree:114] Unable to import 'django.contrib.sessions' 'forms': No module named 'django.contrib.sessions.forms'
Mar 23 11:06:25 freenas uwsgi: [freeadmin.navtree:114] Unable to import 'django.contrib.staticfiles' 'forms': No module named 'django.contrib.staticfiles.forms'
Mar 23 11:06:25 freenas uwsgi: [freeadmin.navtree:114] Unable to import 'freenasUI.api' 'forms': No module named 'freenasUI.api.forms'
Mar 23 11:06:25 freenas uwsgi: [freeadmin.navtree:114] Unable to import 'freenasUI.reporting' 'forms': No module named 'freenasUI.reporting.forms'
Mar 23 11:06:25 freenas uwsgi: [freeadmin.site:68] Model <class 'freenasUI.network.models.VLAN'> already registered, overwriting...
Mar 23 11:06:27 freenas /netcli: [urllib3.connectionpool:208] Starting new HTTP connection (1): 192.168.10.100
Mar 23 11:06:27 freenas /netcli: [urllib3.connectionpool:396] http://192.168.10.100:443 "HEAD / HTTP/1.1" 400 0
Mar 23 11:06:27 freenas /netcli: [urllib3.connectionpool:824] Starting new HTTPS connection (1): 192.168.10.100
Mar 23 11:06:27 freenas /netcli: [urllib3.connectionpool:396] https://192.168.10.100:443 "HEAD / HTTP/1.1" 200 0
Mar 23 11:06:27 freenas /netcli: [urllib3.connectionpool:208] Starting new HTTP connection (1): 192.168.10.100
Mar 23 11:06:27 freenas /netcli: [urllib3.connectionpool:396] http://192.168.10.100:80 "HEAD / HTTP/1.1" 307 0
Mar 23 11:06:27 freenas /netcli: [urllib3.connectionpool:824] Starting new HTTPS connection (1): 192.168.10.100
Mar 23 11:16:26 freenas uwsgi: [middleware.notifier:178] Popen()ing: /sbin/ifconfig re0
Mar 23 11:38:10 freenas uwsgi: [middleware.notifier:178] Popen()ing: /sbin/ifconfig re0

___________________________________________________________________________________________________________________________
root@freenas:/var/log # camcontrol devlist
<WDC WD40EZRZ-00GXCB0 80.00A80> at scbus0 target 0 lun 0 (pass0,ada0)
<ST3000DM001-1ER166 CC25> at scbus1 target 0 lun 0 (pass1,ada1)
<ST3000DM001-1ER166 CC25> at scbus2 target 0 lun 0 (pass2,ada2)
<WDC WD30EFRX-68EUZN0 82.00A82> at scbus3 target 0 lun 0 (pass3,ada3)
<WDC WD40EZRZ-00GXCB0 80.00A80> at scbus4 target 0 lun 0 (pass4,ada4)
<M4-CT064M4SSD2 070H> at scbus5 target 0 lun 0 (pass5,ada5)
<SanDisk SDSSDA120G Z22000RL> at scbus6 target 0 lun 0 (pass6,ada6)
<WDC WD40EZRZ-00GXCB0 80.00A80> at scbus7 target 0 lun 0 (pass7,ada7)

___________________________________________________________________________________________________________________________

Does anybody has a solution for this Problem? Its not a really fuck up since I can mount the pools and save my data and set up the pools new. But maybe this is a upgrade bug?


Attachments

  • Screenshot_20190323_124154.jpeg
    63.1 KB · Views: 302

Mr. Slumber

Contributor
Joined
Mar 10, 2019
Messages
182
Sorry, maybe it sounds stupid but helped me once on my 11.2 test-system: did you try to unlock the pools via the legacy web interface? Good luck! :)


Mr. Slumber

Contributor
Joined
Mar 10, 2019
Messages
182

csjjpm

Contributor
Joined
Feb 16, 2015
Messages
126
Hi,
I've the same problem. in 11.2 I cannot see any installed plugins and if I pick my volume it just spins for ages.
sorry I'm not that hot on what to do to fix this. I've logged onto the legacy web interface. What do I do next to unlock the pool?
thanks
Paul


Redcoat

MVP
Joined
Feb 18, 2014
Messages
2,924
Do you have an encrypted pool?
