Hi. This pertains to Build FreeNAS-9.3-STABLE-201512121950. (Yes we should upgrade, but cannot right now.)

On our NAS-Supermicro Model 847-12 there is a degraded multipath disk in a mirror. This multipath disk multipath/disk4 is a member of mirror0

It's operating in degraded mode. Both disks in this mirror are online but one disk has a bad segment (56). SMART tests increment the error count past a threshold to cause the alert and thus degraded. I need to replace this disk. The multipath is comprised of /dev/da34 (active) and /dev/da77 (fail); I know which physical disk this is.

Usually when multipath disks failed before I could offline and replace them; and the Resilvering would run OK.

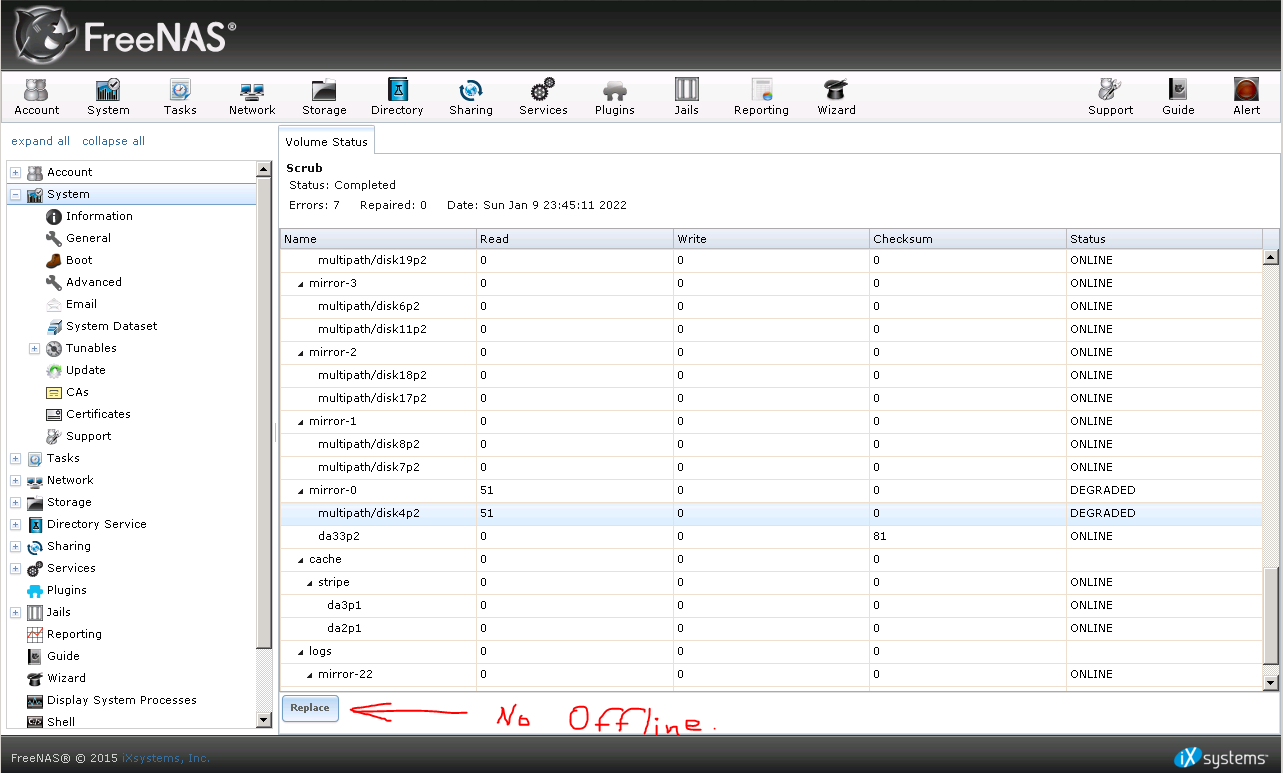

This disk multipath/disk4 is giving me issues. Previous Offline attempts all Failed and the disk would remain online. Now it is in degraded mode and the option to Offline this disk is not even presented in the FreeNAS GUI.



I'm thinking the only way to resolve this, is properly shutdown the NAS, replace the drive while off, then restart. The mirror0 should initiate the Resilvering? I am not certain.

I have not yet attempted to run: (Should this work? ....below)

# zpool offline poolname /dev/multipath/whatever
ie: # zpool offline vol0 /dev/multipath//disk4
or ie: # zpool offline vol0 /dev/multipath//disk4p2
?

then # reboot

then
# zpool replace poolname oldidhere /dev/multipath/whatever
Is oldidhere = eaa9c650-ffb0-11e5-b656-002590c509e6 ?
ie: # zpool replace vol0 eaa9c650-ffb0-11e5-b656-002590c509e6 /dev/multipath/disk4


info from command output:

# zpool status -v |more

Code:
[root@Stor02 ~]# zpool status -v |more
 pool: freenas-boot
 state: ONLINE
  scan: scrub repaired 0 in 0h1m with 0 errors on Tue Dec 14 03:46:07 2021
config:

        NAME        STATE     READ WRITE CKSUM
        freenas-boot  ONLINE       0     0     0
          mirror-0  ONLINE       0     0     0
            ada0p2  ONLINE       0     0     0
            da94    ONLINE       0     0     0

errors: No known data errors

  pool: vol0
 state: DEGRADED
status: One or more devices has experienced an error resulting in data
        corruption.  Applications may be affected.
action: Restore the file in question if possible.  Otherwise restore the
        entire pool from backup.
   see: http://illumos.org/msg/ZFS-8000-8A
  scan: scrub repaired 0 in 23h45m with 7 errors on Sun Jan  9 23:45:11 2022
config:

        NAME                                            STATE     READ WRITE CKSUM
        vol0                                            DEGRADED    51     0     0
          mirror-0                                      DEGRADED    51     0     0
            gptid/5d566609-27ce-11ec-84b5-002590c509e6  ONLINE       0     0    81
            gptid/eaa9c650-ffb0-11e5-b656-002590c509e6  DEGRADED    51     0     0  too many errors
          mirror-1                                      ONLINE       0     0     0
            gptid/edfc912f-ffb0-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/f145a8e2-ffb0-11e5-b656-002590c509e6  ONLINE       0     0     0
          mirror-2                                      ONLINE       0     0     0
            gptid/f492aa93-ffb0-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/f7ea91a6-ffb0-11e5-b656-002590c509e6  ONLINE       0     0     0
          mirror-3                                      ONLINE       0     0     0
            gptid/fb3fe2b6-ffb0-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/7c22dd1f-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
          mirror-4                                      ONLINE       0     0     0
            gptid/01ed7c10-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/0539f157-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
          mirror-5                                      ONLINE       0     0     0
            gptid/0888391d-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/a4389c73-704e-11e8-a0a8-002590c509e6  ONLINE       0     0     0
          mirror-6                                      ONLINE       0     0     0
            gptid/0f2af859-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/127bb4bb-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
          mirror-7                                      ONLINE       0     0     0
            gptid/15c9e607-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/191c892c-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
         mirror-8                                      ONLINE       0     0     0
            gptid/1c750efe-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/1fc769a9-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
          mirror-9                                      ONLINE       0     0     0
            gptid/231b1712-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/597dd6ec-2d5d-11ec-84b5-002590c509e6  ONLINE       0     0     0
          mirror-10                                     ONLINE       0     0     0
            gptid/29c3294e-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/2d0e73e2-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
          mirror-11                                     ONLINE       0     0     0
            gptid/30618e1f-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/33b46d23-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
          mirror-12                                     ONLINE       0     0     0
            gptid/370d8805-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/3a5bfb7e-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
          mirror-13                                     ONLINE       0     0     0
            gptid/3db28a63-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/41050ec0-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
          mirror-14                                     ONLINE       0     0     0
            gptid/445dcad5-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/47af47b0-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
          mirror-15                                     ONLINE       0     0     0
            gptid/4b08ff92-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/4e56a93e-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
          mirror-16                                     ONLINE       0     0     0
            gptid/51b37458-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/55079950-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
          mirror-17                                     ONLINE       0     0     0
            gptid/5866ad7e-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/5bb9c885-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
          mirror-18                                     ONLINE       0     0     0
            gptid/5f191ef4-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/626a2a6c-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
          mirror-19                                     ONLINE       0     0     0
            gptid/65cdc22c-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/693b38b6-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
          mirror-20                                     ONLINE       0     0     0
            gptid/85f3101e-dec5-11eb-b60e-002590c509e6  ONLINE       0     0     0
            gptid/706a2f6b-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
          mirror-21                                     ONLINE       0     0     0
            gptid/740a2f89-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/779af1d9-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
        logs
          mirror-22                                     ONLINE       0     0     0
            gptid/78209949-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
            gptid/7888e2b8-ffb1-11e5-b656-002590c509e6  ONLINE       0     0     0
        cache
          gptid/1e865cd9-097c-11e6-80b7-002590c509e6    ONLINE       0     0     0
          gptid/1ee3d919-097c-11e6-80b7-002590c509e6    ONLINE       0     0     0
errors: Permanent errors have been detected in the following files:

        /mnt/vol0/stor02/stor02_ext0
        /mnt/vol0/stor02/stor02_ext1
        <0x2cf9>:<0xb>
[root@Stor02 ~]#



[root@Stor02 ~]# gmultipath status -s |more

(all multipath pairs Active/Passive except for...)

multipath/disk4 DEGRADED da77 (FAIL)
multipath/disk4 DEGRADED da34 (ACTIVE)


and

# smartctl -a /dev/da34
(same for # smartctl -a /dev/da77)


Code:
[root@Stor02 ~]# smartctl -a /dev/da34
smartctl 6.3 2014-07-26 r3976 [FreeBSD 9.3-RELEASE-p28 amd64] (local build)
Copyright (C) 2002-14, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Vendor:               WD
Product:              WD4001FYYG
Revision:             D1R5
Compliance:           SPC-4
User Capacity:        4,000,787,030,016 bytes [4.00 TB]
Logical block size:   512 bytes
Rotation Rate:        7200 rpm
Form Factor:          3.5 inches
Logical Unit id:      0x50000c0f01376374
Serial number:        WMC1F0D76TAH
Device type:          disk
Transport protocol:   SAS (SPL-3)
Local Time is:        Tue Jan 11 19:38:36 2022 EST
SMART support is:     Available - device has SMART capability.
SMART support is:     Enabled
Temperature Warning:  Disabled or Not Supported

=== START OF READ SMART DATA SECTION ===
SMART Health Status: OK

Current Drive Temperature:     31 C
Drive Trip Temperature:        64 C

Manufactured in week 03 of year 2015
Specified cycle count over device lifetime:  1048576
Accumulated start-stop cycles:  15
Specified load-unload count over device lifetime:  1114112
Accumulated load-unload cycles:  31128
Elements in grown defect list: 1

Error counter log:
           Errors Corrected by           Total   Correction     Gigabytes    Total
               ECC          rereads/    errors   algorithm      processed    uncorrected
           fast | delayed   rewrites  corrected  invocations   [10^9 bytes]  errors
read:   164959416       19    792978  164959435       2871      76450.387        2852
write:  1902521753        1    110219  1902521754          1     150089.871           0

Non-medium error count:      179

SMART Self-test log
Num  Test              Status                 segment  LifeTime  LBA_first_err [SK ASC ASQ]
     Description                              number   (hours)
# 1  Background short  Completed                  48   47338                 - [-   -    -]
# 2  Background long   Failed in segment -->      56   46665         968064559 [0x3 0x16 0x0]
# 3  Background long   Failed in segment -->      56   46659         968064559 [0x3 0x16 0x0]
# 4  Background long   Failed in segment -->      56   46598         968067335 [0x3 0x16 0x0]
# 5  Background short  Completed                  48   46595                 - [-   -    -]

Long (extended) Self Test duration: 31120 seconds [518.7 minutes]

[root@Stor02 ~]#


Is a shutdown needed to replace this disk, or do you suggest otherwise?

Thanks for your help.


Patrick M. Hausen

Hall of Famer
Joined
Nov 25, 2013
Messages
7,740
Have you tried zpool detach vol0 gptid/eaa9c650-ffb0-11e5-b656-002590c509e6?


rogere

Cadet
Joined
Jan 12, 2022
Messages
4
Hi Patrick, thanks for replying. I get no valid replicas in attempting the detach.

Code:
[root@Stor02 ~]# zpool offline vol0 /dev/multipath/disk4
cannot offline /dev/multipath/disk4: no such device in pool

[root@Stor02 ~]# zpool offline vol0 gptid/eaa9c650-ffb0-11e5-b656-002590c509e6
cannot offline gptid/eaa9c650-ffb0-11e5-b656-002590c509e6: no valid replicas

[root@Stor02 ~]# zpool detach vol0 gptid/eaa9c650-ffb0-11e5-b656-002590c509e6
cannot detach gptid/eaa9c650-ffb0-11e5-b656-002590c509e6: no valid replicas


Normally for "no valid replicas" the system cannot offline the disk to the point where the volume becomes faulted. However is this the case here? This disk is a member of a mirror. One multipath disk to this physical disk indicates a Fail, so is there actual I/O to this disk? I did see the disk LED blinking on its carrier. I was advised by a colleague that to offline the disk is essentially the same as pulling it. One really has no other choice at this point.

The other thing is I want to get a clearer understanding of the virtual device (vdev) arrangement. The Volume Manager does not indicate this. I'm not seeing this clearly in # zpool status.


rogere

Cadet
Joined
Jan 12, 2022
Messages
4
Hello. An update...

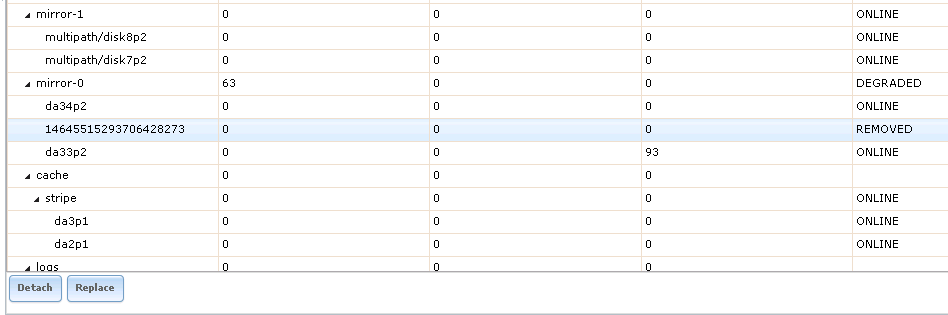

The disk at fault (da34, Serial number: WMC1F0D76TAH) would not Offline nor Detach; it was however removed and physically replaced. The replacement (Serial number: WMC1F0D2TFX2) was detected and administratively Replaced; following Resilvering of the volume, both disks comprising mirror0 are Online. This mirror0 still indicates Degraded due to the Removed disk still being a member of this mirror0 (absent 3rd disk). This Removed disk has the ID 14645515293706428273 (was /dev/gptid/eaa9c650-ffb0-11e5-b656-002590c509e6), and the options are to only either Detach or Replace.

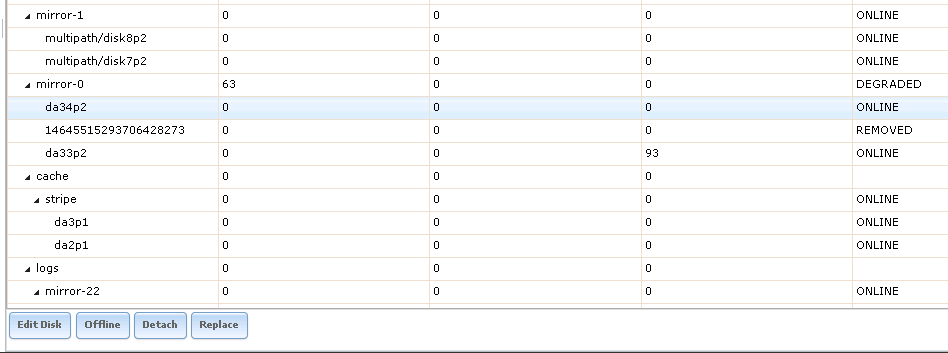

I assume I may select the Detach to resolve the Degraded state on mirror0? (pics below)



The new Replacement disk (da34p2) is Online.




[root@Stor02 ~]# zpool status -v

Code:
[root@Stor02 ~]# zpool status -v|more
  pool: freenas-boot
 state: ONLINE
  scan: scrub repaired 0 in 0h0m with 0 errors on Wed Jan 19 03:45:50 2022
config:

        NAME        STATE     READ WRITE CKSUM
        freenas-boot  ONLINE       0     0     0
          mirror-0  ONLINE       0     0     0
            ada0p2  ONLINE       0     0     0
            da94    ONLINE       0     0     0

errors: No known data errors

  pool: vol0
 state: DEGRADED
status: One or more devices has experienced an error resulting in data
        corruption.  Applications may be affected.
action: Restore the file in question if possible.  Otherwise restore the
        entire pool from backup.
   see: http://illumos.org/msg/ZFS-8000-8A
  scan: resilvered 3.55T in 55h30m with 6 errors on Sat Jan 22 22:53:21 2022
config:

        NAME                                              STATE     READ WRITE CKSUM
        vol0                                              DEGRADED    57     0     0
          mirror-0                                        DEGRADED    63     0     0
            gptid/5d566609-27ce-11ec-84b5-002590c509e6    ONLINE       0     0    93
            replacing-1                                   REMOVED      0     0     0
              14645515293706428273                        REMOVED      0     0     0  was /dev/gptid/eaa9c650-ffb0-11e5-b656-002590c
509e6
              gptid/ade9bb16-7a2e-11ec-84b5-002590c509e6  ONLINE       0     0     0
          mirror-1                                        ONLINE       0     0     0
            gptid/edfc912f-ffb0-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/f145a8e2-ffb0-11e5-b656-002590c509e6    ONLINE       0     0     0
          mirror-2                                        ONLINE       0     0     0
            gptid/f492aa93-ffb0-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/f7ea91a6-ffb0-11e5-b656-002590c509e6    ONLINE       0     0     0
          mirror-3                                        ONLINE       0     0     0
            gptid/fb3fe2b6-ffb0-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/7c22dd1f-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
          mirror-4                                        ONLINE       0     0     0
            gptid/01ed7c10-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/0539f157-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
          mirror-5                                        ONLINE       0     0     0
            gptid/0888391d-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/a4389c73-704e-11e8-a0a8-002590c509e6    ONLINE       0     0     0
          mirror-6                                        ONLINE       0     0     0
            gptid/0f2af859-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/127bb4bb-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
          mirror-7                                        ONLINE       0     0     0
            gptid/15c9e607-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/191c892c-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
          mirror-8                                        ONLINE       0     0     0
            gptid/1c750efe-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/1fc769a9-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
          mirror-9                                        ONLINE       0     0     0
            gptid/231b1712-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/597dd6ec-2d5d-11ec-84b5-002590c509e6    ONLINE       0     0     0
          mirror-10                                       ONLINE       0     0     0
            gptid/29c3294e-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/2d0e73e2-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
          mirror-11                                       ONLINE       0     0     0
            gptid/30618e1f-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/33b46d23-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
          mirror-12                                       ONLINE       0     0     0
            gptid/370d8805-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/3a5bfb7e-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
          mirror-13                                       ONLINE       0     0     0
            gptid/3db28a63-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/41050ec0-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
          mirror-14                                       ONLINE       0     0     0
            gptid/445dcad5-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/47af47b0-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
          mirror-15                                       ONLINE       0     0     0
            gptid/4b08ff92-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/4e56a93e-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
          mirror-16                                       ONLINE       0     0     0
            gptid/51b37458-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/55079950-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
          mirror-17                                       ONLINE       0     0     0
            gptid/5866ad7e-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/5bb9c885-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
          mirror-18                                       ONLINE       0     0     0
            gptid/5f191ef4-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/626a2a6c-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
          mirror-19                                       ONLINE       0     0     0
            gptid/65cdc22c-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/693b38b6-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
          mirror-20                                       ONLINE       0     0     0
            gptid/85f3101e-dec5-11eb-b60e-002590c509e6    ONLINE       0     0     0
            gptid/706a2f6b-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
          mirror-21                                       ONLINE       0     0     0
            gptid/740a2f89-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/779af1d9-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
        logs
          mirror-22                                       ONLINE       0     0     0
            gptid/78209949-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
            gptid/7888e2b8-ffb1-11e5-b656-002590c509e6    ONLINE       0     0     0
        cache
          gptid/1e865cd9-097c-11e6-80b7-002590c509e6      ONLINE       0     0     0
          gptid/1ee3d919-097c-11e6-80b7-002590c509e6      ONLINE       0     0     0

errors: Permanent errors have been detected in the following files:

        /mnt/vol0/stor02/stor02_ext0
        /mnt/vol0/stor02/stor02_ext1
        <0x2dbb>:<0xb>
[root@Stor02 ~]#


[root@Stor02 ~]# smartctl -a /dev/da34

Code:
[root@Stor02 ~]# smartctl -a /dev/da34 |more
smartctl 6.3 2014-07-26 r3976 [FreeBSD 9.3-RELEASE-p28 amd64] (local build)
Copyright (C) 2002-14, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Vendor:               WD
Product:              WD4001FYYG
Revision:             D1R5
Compliance:           SPC-4
User Capacity:        4,000,787,030,016 bytes [4.00 TB]
Logical block size:   512 bytes
Rotation Rate:        7200 rpm
Form Factor:          3.5 inches
Logical Unit id:      0x50000c0f01f9d4e8
Serial number:        WMC1F0D2TFX2
Device type:          disk
Transport protocol:   SAS (SPL-3)
Local Time is:        Wed Feb 16 14:42:54 2022 EST
SMART support is:     Available - device has SMART capability.
SMART support is:     Enabled
Temperature Warning:  Disabled or Not Supported

=== START OF READ SMART DATA SECTION ===
SMART Health Status: OK

Current Drive Temperature:     31 C
Drive Trip Temperature:        64 C

Manufactured in week 03 of year 2015
Specified cycle count over device lifetime:  1048576
Accumulated start-stop cycles:  1
Specified load-unload count over device lifetime:  1114112
Accumulated load-unload cycles:  3
Elements in grown defect list: 0

Error counter log:
           Errors Corrected by           Total   Correction     Gigabytes    Total
               ECC          rereads/    errors   algorithm      processed    uncorrected
           fast | delayed   rewrites  corrected  invocations   [10^9 bytes]  errors
read:    3352766        0         1   3352766          0       1847.215           0
write:  74098570        0         0  74098570          0       5969.416           0

Non-medium error count:       35

No self-tests have been logged

[root@Stor02 ~]#



I understand that I'll have to manually Edit these two disks da33 and da34 back to each having a multipath configuration as this is not automatically done upon Replacement.

There are scheduled Scrubs, I can run another manually after the Detach of the Removed disk.

Thanks for any suggestions. Cheers, Roger

Top
