Read SMART Self-Test Log Failed - ATA Status: 41, 51

raito88

Dabbler
Joined
Jan 28, 2019
Messages
17
Hello!
I build my First FreeNas backup server, but i have problems wit HDD disks - SMART :(
Alert: Device: /dev/ada2, Read SMART Self-Test Log Failed


MB: SUPERMICRO X11SSL-F
CPU: Intel Pentium G4560 - 3.5 GHz
RAM: 2 x Kingston - DDR4 - 8 GB - DIMM 288-pin - 2400 MHz unbuffered - ECC
Storage HDD: 6 x WD NAS RED PRO - 2TB - 7200rpm
Boot USB: 2 x ADATA Superior Series S102 Pro - USB flash drive - 16 GB - USB 3.0 - titanium blue

Pool - 6 x HDD - RAIDZ2
Sharing - NFS

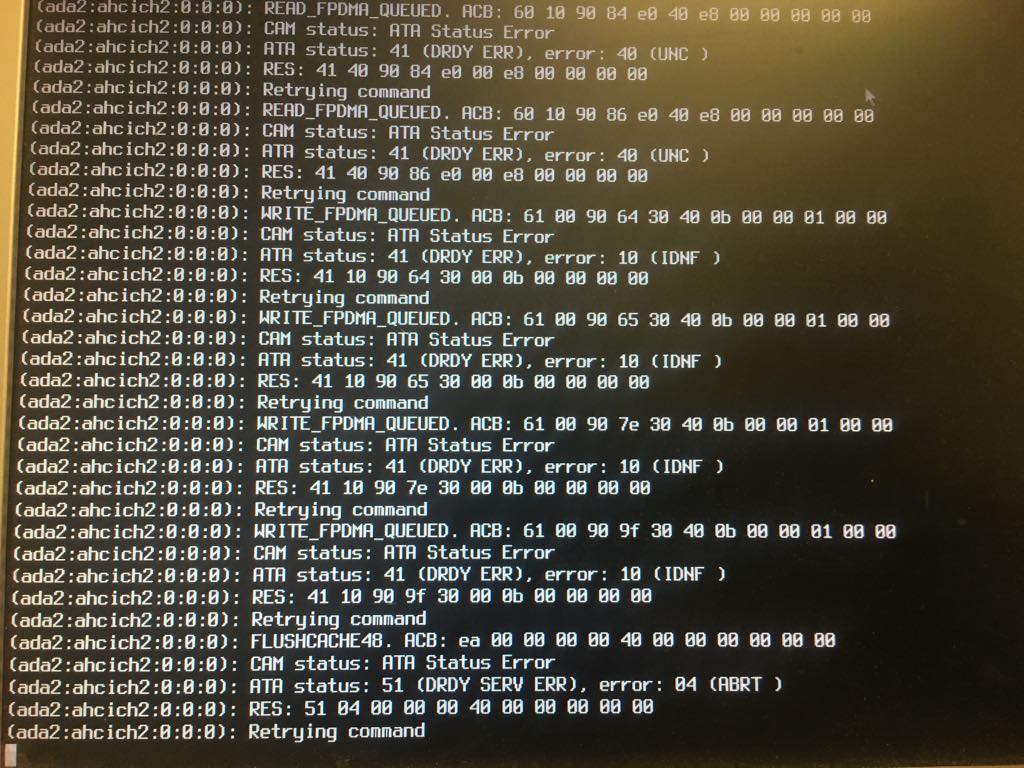

When VMs backup starting after some time geting error:


Here is Smart log:

Code:
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.2-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Western Digital Red Pro
Device Model:     WDC WD2002FFSX-68PF8N0
Serial Number:    WD-WMC6N0M3XXXX
LU WWN Device Id: 5 0014ee 0048c3807
Firmware Version: 81.00A81
User Capacity:    2,000,398,934,016 bytes [2.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-3 T13/2161-D revision 5
SATA Version is:  SATA 3.1, 6.0 Gb/s (current: 6.0 Gb/s)
Local Time is:    Mon Feb  4 06:07:15 2019 PST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled
AAM feature is:   Unavailable
APM feature is:   Disabled
Rd look-ahead is: Enabled
Write cache is:   Enabled
DSN feature is:   Disabled
ATA Security is:  Disabled, NOT FROZEN [SEC1]
Wt Cache Reorder: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x00) Offline data collection activity
                                        was never started.
                                        Auto Offline Data Collection: Disabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (    0) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   2) minutes.
Extended self-test routine
recommended polling time:        ( 207) minutes.
Conveyance self-test routine
recommended polling time:        (   5) minutes.
SCT capabilities:              (0x203d) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAGS    VALUE WORST THRESH FAIL RAW_VALUE
  1 Raw_Read_Error_Rate     POSR-K   200   200   051    -    0
  3 Spin_Up_Time            POS--K   146   135   021    -    5683
  4 Start_Stop_Count        -O--CK   100   100   000    -    43
  5 Reallocated_Sector_Ct   PO--CK   200   200   140    -    0
  7 Seek_Error_Rate         -OSR-K   100   253   000    -    0
  9 Power_On_Hours          -O--CK   100   100   000    -    81
10 Spin_Retry_Count        -O--CK   100   253   000    -    0
11 Calibration_Retry_Count -O--CK   100   253   000    -    0
12 Power_Cycle_Count       -O--CK   100   100   000    -    43
16 Unknown_Attribute       -O---K   000   200   000    -    115317874
183 Runtime_Bad_Block       -O--CK   100   100   000    -    0
192 Power-Off_Retract_Count -O--CK   200   200   000    -    34
193 Load_Cycle_Count        -O--CK   200   200   000    -    8
194 Temperature_Celsius     -O---K   119   107   000    -    28
196 Reallocated_Event_Count -O--CK   200   200   000    -    0
197 Current_Pending_Sector  -O--CK   200   200   000    -    0
198 Offline_Uncorrectable   ----CK   100   253   000    -    0
199 UDMA_CRC_Error_Count    -O--CK   200   200   000    -    0
200 Multi_Zone_Error_Rate   ---R--   100   253   000    -    0
                            ||||||_ K auto-keep
                            |||||__ C event count
                            ||||___ R error rate
                            |||____ S speed/performance
                            ||_____ O updated online
                            |______ P prefailure warning

General Purpose Log Directory Version 1
SMART           Log Directory Version 1 [multi-sector log support]
Address    Access  R/W   Size  Description
0x00       GPL,SL  R/O      1  Log Directory
0x01           SL  R/O      1  Summary SMART error log
0x02           SL  R/O      5  Comprehensive SMART error log
0x03       GPL     R/O      6  Ext. Comprehensive SMART error log
0x04       GPL,SL  R/O      8  Device Statistics log
0x06           SL  R/O      1  SMART self-test log
0x07       GPL     R/O      1  Extended self-test log
0x08       GPL     R/O      2  Power Conditions log
0x09           SL  R/W      1  Selective self-test log
0x0a       GPL     R/W      8  Device Statistics Notification
0x0c       GPL     R/O    901  Pending Defects log
0x0d       GPL,SL  R/O      8  LPS Mis-alignment log
0x10       GPL     R/O      1  NCQ Command Error log
0x11       GPL     R/O      1  SATA Phy Event Counters log
0x13       GPL     R/O      1  SATA NCQ Send and Receive log
0x24       GPL     R/O    192  Current Device Internal Status Data log
0x30       GPL,SL  R/O      9  IDENTIFY DEVICE data log
0x80-0x9f  GPL,SL  R/W     16  Host vendor specific log
0xa0-0xb6  GPL,SL  VS      16  Device vendor specific log
0xb7       GPL,SL  VS      39  Device vendor specific log
0xc0       GPL,SL  VS       1  Device vendor specific log
0xe0       GPL,SL  R/W      1  SCT Command/Status
0xe1       GPL,SL  R/W      1  SCT Data Transfer

SMART Extended Comprehensive Error Log Version: 1 (6 sectors)
Device Error Count: 4736 (device log contains only the most recent 24 errors)
        CR     = Command Register
        FEATR  = Features Register
        COUNT  = Count (was: Sector Count) Register
        LBA_48 = Upper bytes of LBA High/Mid/Low Registers ]  ATA-8
        LH     = LBA High (was: Cylinder High) Register    ]   LBA
        LM     = LBA Mid (was: Cylinder Low) Register      ] Register
        LL     = LBA Low (was: Sector Number) Register     ]
        DV     = Device (was: Device/Head) Register
        DC     = Device Control Register
        ER     = Error register
        ST     = Status register
Powered_Up_Time is measured from power on, and printed as
DDd+hh:mm:SS.sss where DD=days, hh=hours, mm=minutes,
SS=sec, and sss=millisec. It "wraps" after 49.710 days.

Error 4736 [7] occurred at disk power-on lifetime: 80 hours (3 days + 8 hours)
  When the command that caused the error occurred, the device was in an unknown state.

  After command completion occurred, registers were:
  ER -- ST COUNT  LBA_48  LH LM LL DV DC
  -- -- -- == -- == == == -- -- -- -- --
  04 -- 51 00 00 00 00 00 00 00 00 00 00  Error: ABRT

  Commands leading to the command that caused the error were:
  CR FEATR COUNT  LBA_48  LH LM LL DV DC  Powered_Up_Time  Command/Feature_Name
  -- == -- == -- == == == -- -- -- -- --  ---------------  --------------------

Error 4735 [6] occurred at disk power-on lifetime: 80 hours (3 days + 8 hours)
  When the command that caused the error occurred, the device was in an unknown state.

  After command completion occurred, registers were:
  ER -- ST COUNT  LBA_48  LH LM LL DV DC
  -- -- -- == -- == == == -- -- -- -- --
  04 -- 51 00 00 00 00 00 00 00 00 00 00  Error: ABRT

  Commands leading to the command that caused the error were:
  CR FEATR COUNT  LBA_48  LH LM LL DV DC  Powered_Up_Time  Command/Feature_Name
  -- == -- == -- == == == -- -- -- -- --  ---------------  --------------------

Error 4734 [5] occurred at disk power-on lifetime: 80 hours (3 days + 8 hours)
  When the command that caused the error occurred, the device was in an unknown state.

  After command completion occurred, registers were:
  ER -- ST COUNT  LBA_48  LH LM LL DV DC
  -- -- -- == -- == == == -- -- -- -- --
  04 -- 51 00 00 00 00 00 00 00 00 00 00  Error: ABRT

  Commands leading to the command that caused the error were:
  CR FEATR COUNT  LBA_48  LH LM LL DV DC  Powered_Up_Time  Command/Feature_Name
  -- == -- == -- == == == -- -- -- -- --  ---------------  --------------------

Error 4733 [4] occurred at disk power-on lifetime: 80 hours (3 days + 8 hours)
  When the command that caused the error occurred, the device was in an unknown state.

  After command completion occurred, registers were:
  ER -- ST COUNT  LBA_48  LH LM LL DV DC
  -- -- -- == -- == == == -- -- -- -- --
  04 -- 51 00 00 00 00 00 00 00 00 00 00  Error: ABRT

  Commands leading to the command that caused the error were:
  CR FEATR COUNT  LBA_48  LH LM LL DV DC  Powered_Up_Time  Command/Feature_Name
  -- == -- == -- == == == -- -- -- -- --  ---------------  --------------------

Error 4732 [3] occurred at disk power-on lifetime: 80 hours (3 days + 8 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER -- ST COUNT  LBA_48  LH LM LL DV DC
  -- -- -- == -- == == == -- -- -- -- --
  10 -- 41 00 40 00 00 0b 32 40 50 40 00  Error: IDNF at LBA = 0x0b324050 = 187842640

  Commands leading to the command that caused the error were:
  CR FEATR COUNT  LBA_48  LH LM LL DV DC  Powered_Up_Time  Command/Feature_Name
  -- == -- == -- == == == -- -- -- -- --  ---------------  --------------------
  61 00 40 00 a0 00 00 0b 32 40 50 40 00     01:37:01.386  WRITE FPDMA QUEUED
  61 00 40 00 98 00 00 0b 32 40 10 40 08     00:25:25.503  WRITE FPDMA QUEUED
  2f 00 00 00 01 00 00 00 00 00 10 00 08     00:25:25.503  READ LOG EXT
  61 00 40 00 40 00 00 0b 32 40 50 40 08     00:25:18.420  WRITE FPDMA QUEUED
  61 00 40 00 38 00 00 0b 32 40 10 40 08     00:25:18.420  WRITE FPDMA QUEUED

Error 4731 [2] occurred at disk power-on lifetime: 80 hours (3 days + 8 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER -- ST COUNT  LBA_48  LH LM LL DV DC
  -- -- -- == -- == == == -- -- -- -- --
  10 -- 41 00 40 00 00 0b 32 40 10 40 00  Error: IDNF at LBA = 0x0b324010 = 187842576

  Commands leading to the command that caused the error were:
  CR FEATR COUNT  LBA_48  LH LM LL DV DC  Powered_Up_Time  Command/Feature_Name
  -- == -- == -- == == == -- -- -- -- --  ---------------  --------------------
  61 00 40 00 38 00 00 0b 32 40 10 40 00     01:36:54.310  WRITE FPDMA QUEUED
  61 00 40 00 30 00 00 0b 32 3f 50 40 08     00:25:18.420  WRITE FPDMA QUEUED
  2f 00 00 00 01 00 00 00 00 00 10 00 08     00:25:18.420  READ LOG EXT
  61 00 40 00 d0 00 00 0b 32 40 10 40 08     00:25:11.337  WRITE FPDMA QUEUED
  61 00 40 00 c8 00 00 0b 32 3f 50 40 08     00:25:11.337  WRITE FPDMA QUEUED

Error 4730 [1] occurred at disk power-on lifetime: 80 hours (3 days + 8 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER -- ST COUNT  LBA_48  LH LM LL DV DC
  -- -- -- == -- == == == -- -- -- -- --
  10 -- 41 00 40 00 00 0b 32 3f 50 40 00  Error: IDNF at LBA = 0x0b323f50 = 187842384

  Commands leading to the command that caused the error were:
  CR FEATR COUNT  LBA_48  LH LM LL DV DC  Powered_Up_Time  Command/Feature_Name
  -- == -- == -- == == == -- -- -- -- --  ---------------  --------------------
  61 00 40 00 c8 00 00 0b 32 3f 50 40 00     01:36:47.233  WRITE FPDMA QUEUED
  61 00 40 00 c0 00 00 0b 32 3f d0 40 08     00:25:11.337  WRITE FPDMA QUEUED
  2f 00 00 00 01 00 00 00 00 00 10 00 08     00:25:11.337  READ LOG EXT
  61 00 40 00 58 00 00 0b 32 3f 50 40 08     00:25:04.253  WRITE FPDMA QUEUED
  61 00 40 00 50 00 00 0b 32 3f d0 40 08     00:25:04.253  WRITE FPDMA QUEUED

Error 4729 [0] occurred at disk power-on lifetime: 80 hours (3 days + 8 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER -- ST COUNT  LBA_48  LH LM LL DV DC
  -- -- -- == -- == == == -- -- -- -- --
  10 -- 41 00 40 00 00 0b 32 3f d0 40 00  Error: IDNF at LBA = 0x0b323fd0 = 187842512

  Commands leading to the command that caused the error were:
  CR FEATR COUNT  LBA_48  LH LM LL DV DC  Powered_Up_Time  Command/Feature_Name
  -- == -- == -- == == == -- -- -- -- --  ---------------  --------------------
  61 00 40 00 50 00 00 0b 32 3f d0 40 00     01:36:40.158  WRITE FPDMA QUEUED
  61 00 40 00 48 00 00 0b 32 3f 90 40 08     00:25:04.253  WRITE FPDMA QUEUED
  2f 00 00 00 01 00 00 00 00 00 10 00 08     00:25:04.253  READ LOG EXT
  61 00 40 00 d8 00 00 0b 32 3f d0 40 08     00:24:57.170  WRITE FPDMA QUEUED
  61 00 40 00 d0 00 00 0b 32 3f 90 40 08     00:24:57.170  WRITE FPDMA QUEUED

SMART Extended Self-test Log Version: 1 (1 sectors)
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Short offline       Completed without error       00%        79         -

SMART Selective self-test log data structure revision number 1
SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

SCT Status Version:                  3
SCT Version (vendor specific):       258 (0x0102)
SCT Support Level:                   1
Device State:                        Active (0)
Current Temperature:                    28 Celsius
Power Cycle Min/Max Temperature:     27/28 Celsius
Lifetime    Min/Max Temperature:     22/40 Celsius
Under/Over Temperature Limit Count:   0/0
Vendor specific:
01 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00

SCT Temperature History Version:     2
Temperature Sampling Period:         1 minute
Temperature Logging Interval:        1 minute
Min/Max recommended Temperature:      0/60 Celsius
Min/Max Temperature Limit:           -41/85 Celsius
Temperature History Size (Index):    478 (93)

Index    Estimated Time   Temperature Celsius
  94    2019-02-03 22:10    38  *******************
...    ..( 34 skipped).    ..  *******************
129    2019-02-03 22:45    38  *******************
130    2019-02-03 22:46     ?  -
131    2019-02-03 22:47    38  *******************
132    2019-02-03 22:48     ?  -
133    2019-02-03 22:49    38  *******************
...    ..( 25 skipped).    ..  *******************
159    2019-02-03 23:15    38  *******************
160    2019-02-03 23:16    39  ********************
...    ..( 47 skipped).    ..  ********************
208    2019-02-04 00:04    39  ********************
209    2019-02-04 00:05     ?  -
210    2019-02-04 00:06    22  ***
211    2019-02-04 00:07     ?  -
212    2019-02-04 00:08    25  ******
213    2019-02-04 00:09    25  ******
214    2019-02-04 00:10    25  ******
215    2019-02-04 00:11    26  *******
216    2019-02-04 00:12    27  ********
217    2019-02-04 00:13    27  ********
218    2019-02-04 00:14    28  *********
219    2019-02-04 00:15     ?  -
220    2019-02-04 00:16    29  **********
221    2019-02-04 00:17     ?  -
222    2019-02-04 00:18    29  **********
223    2019-02-04 00:19    29  **********
224    2019-02-04 00:20    29  **********
225    2019-02-04 00:21    30  ***********
226    2019-02-04 00:22     ?  -
227    2019-02-04 00:23    30  ***********
228    2019-02-04 00:24     ?  -
229    2019-02-04 00:25    30  ***********
230    2019-02-04 00:26     ?  -
231    2019-02-04 00:27    30  ***********
...    ..(  3 skipped).    ..  ***********
235    2019-02-04 00:31    30  ***********
236    2019-02-04 00:32    31  ************
237    2019-02-04 00:33    31  ************
238    2019-02-04 00:34    31  ************
239    2019-02-04 00:35    32  *************
...    ..(  2 skipped).    ..  *************
242    2019-02-04 00:38    32  *************
243    2019-02-04 00:39    33  **************
...    ..(  3 skipped).    ..  **************
247    2019-02-04 00:43    33  **************
248    2019-02-04 00:44    34  ***************
...    ..(  4 skipped).    ..  ***************
253    2019-02-04 00:49    34  ***************
254    2019-02-04 00:50    35  ****************
...    ..(  5 skipped).    ..  ****************
260    2019-02-04 00:56    35  ****************
261    2019-02-04 00:57    36  *****************
...    ..( 12 skipped).    ..  *****************
274    2019-02-04 01:10    36  *****************
275    2019-02-04 01:11    37  ******************
...    ..(  3 skipped).    ..  ******************
279    2019-02-04 01:15    37  ******************
280    2019-02-04 01:16     ?  -
281    2019-02-04 01:17    24  *****
282    2019-02-04 01:18     ?  -
283    2019-02-04 01:19    25  ******
284    2019-02-04 01:20    25  ******
285    2019-02-04 01:21    25  ******
286    2019-02-04 01:22    26  *******
287    2019-02-04 01:23    27  ********
288    2019-02-04 01:24    27  ********
289    2019-02-04 01:25     ?  -
290    2019-02-04 01:26    30  ***********
...    ..(  3 skipped).    ..  ***********
294    2019-02-04 01:30    30  ***********
295    2019-02-04 01:31    31  ************
296    2019-02-04 01:32     ?  -
297    2019-02-04 01:33    32  *************
...    ..(  4 skipped).    ..  *************
302    2019-02-04 01:38    32  *************
303    2019-02-04 01:39    33  **************
304    2019-02-04 01:40    33  **************
305    2019-02-04 01:41    33  **************
306    2019-02-04 01:42    34  ***************
...    ..(  2 skipped).    ..  ***************
309    2019-02-04 01:45    34  ***************
310    2019-02-04 01:46     ?  -
311    2019-02-04 01:47    35  ****************
312    2019-02-04 01:48    35  ****************
313    2019-02-04 01:49    35  ****************
314    2019-02-04 01:50     ?  -
315    2019-02-04 01:51    36  *****************
...    ..(  4 skipped).    ..  *****************
320    2019-02-04 01:56    36  *****************
321    2019-02-04 01:57     ?  -
322    2019-02-04 01:58    37  ******************
...    ..( 10 skipped).    ..  ******************
333    2019-02-04 02:09    37  ******************
334    2019-02-04 02:10    38  *******************
...    ..( 10 skipped).    ..  *******************
345    2019-02-04 02:21    38  *******************
346    2019-02-04 02:22    39  ********************
...    ..( 11 skipped).    ..  ********************
358    2019-02-04 02:34    39  ********************
359    2019-02-04 02:35     ?  -
360    2019-02-04 02:36    31  ************
361    2019-02-04 02:37    31  ************
362    2019-02-04 02:38    31  ************
363    2019-02-04 02:39    30  ***********
...    ..( 17 skipped).    ..  ***********
381    2019-02-04 02:57    30  ***********
382    2019-02-04 02:58    29  **********
...    ..( 17 skipped).    ..  **********
400    2019-02-04 03:16    29  **********
401    2019-02-04 03:17    28  *********
...    ..( 13 skipped).    ..  *********
415    2019-02-04 03:31    28  *********
416    2019-02-04 03:32    27  ********
...    ..( 13 skipped).    ..  ********
430    2019-02-04 03:46    27  ********
431    2019-02-04 03:47    28  *********
...    ..(  3 skipped).    ..  *********
435    2019-02-04 03:51    28  *********
436    2019-02-04 03:52     ?  -
437    2019-02-04 03:53    28  *********
...    ..( 94 skipped).    ..  *********
  54    2019-02-04 05:28    28  *********
  55    2019-02-04 05:29     ?  -
  56    2019-02-04 05:30    27  ********
...    ..( 20 skipped).    ..  ********
  77    2019-02-04 05:51    27  ********
  78    2019-02-04 05:52    28  *********
...    ..( 14 skipped).    ..  *********
  93    2019-02-04 06:07    28  *********

SCT Error Recovery Control:
           Read:     70 (7.0 seconds)
          Write:     70 (7.0 seconds)

Device Statistics (GP Log 0x04)
Page  Offset Size        Value Flags Description
0x01  =====  =               =  ===  == General Statistics (rev 1) ==
0x01  0x008  4              43  -D-  Lifetime Power-On Resets
0x01  0x010  4              81  -D-  Power-on Hours
0x01  0x018  6        88467119  -D-  Logical Sectors Written
0x01  0x020  6          983745  -D-  Number of Write Commands
0x01  0x028  6        26850755  -D-  Logical Sectors Read
0x01  0x030  6          170152  -D-  Number of Read Commands
0x01  0x038  6       291600000  -D-  Date and Time TimeStamp
0x01  0x048  2               0  ND-  Workload Utilization
0x03  =====  =               =  ===  == Rotating Media Statistics (rev 1) ==
0x03  0x008  4              81  -D-  Spindle Motor Power-on Hours
0x03  0x010  4              81  -D-  Head Flying Hours
0x03  0x018  4              43  -D-  Head Load Events
0x03  0x020  4               0  -D-  Number of Reallocated Logical Sectors
0x03  0x028  4               0  -D-  Read Recovery Attempts
0x03  0x030  4               0  -D-  Number of Mechanical Start Failures
0x03  0x038  4               0  -D-  Number of Realloc. Candidate Logical Sectors
0x03  0x040  4              34  -D-  Number of High Priority Unload Events
0x04  =====  =               =  ===  == General Errors Statistics (rev 1) ==
0x04  0x008  4               0  -D-  Number of Reported Uncorrectable Errors
0x04  0x010  4             632  -D-  Resets Between Cmd Acceptance and Completion
0x05  =====  =               =  ===  == Temperature Statistics (rev 1) ==
0x05  0x008  1              28  -D-  Current Temperature
0x05  0x010  1              37  -D-  Average Short Term Temperature
0x05  0x018  1               -  -D-  Average Long Term Temperature
0x05  0x020  1              41  -D-  Highest Temperature
0x05  0x028  1              25  -D-  Lowest Temperature
0x05  0x030  1              40  -D-  Highest Average Short Term Temperature
0x05  0x038  1              37  -D-  Lowest Average Short Term Temperature
0x05  0x040  1               -  -D-  Highest Average Long Term Temperature
0x05  0x048  1               -  -D-  Lowest Average Long Term Temperature
0x05  0x050  4               0  -D-  Time in Over-Temperature
0x05  0x058  1              60  -D-  Specified Maximum Operating Temperature
0x05  0x060  4               0  -D-  Time in Under-Temperature
0x05  0x068  1               0  -D-  Specified Minimum Operating Temperature
0x06  =====  =               =  ===  == Transport Statistics (rev 1) ==
0x06  0x008  4             798  -D-  Number of Hardware Resets
0x06  0x010  4              96  -D-  Number of ASR Events
0x06  0x018  4               0  -D-  Number of Interface CRC Errors
                                |||_ C monitored condition met
                                ||__ D supports DSN
                                |___ N normalized value

Pending Defects log (GP Log 0x0c) supported [please try: '-l defects']

SATA Phy Event Counters (GP Log 0x11)
ID      Size     Value  Description
0x0001  2            0  Command failed due to ICRC error
0x0002  2            0  R_ERR response for data FIS
0x0003  2            0  R_ERR response for device-to-host data FIS
0x0004  2            0  R_ERR response for host-to-device data FIS
0x0005  2            0  R_ERR response for non-data FIS
0x0006  2            0  R_ERR response for device-to-host non-data FIS
0x0007  2            0  R_ERR response for host-to-device non-data FIS
0x0008  2            0  Device-to-host non-data FIS retries
0x0009  2            1  Transition from drive PhyRdy to drive PhyNRdy
0x000a  2            4  Device-to-host register FISes sent due to a COMRESET
0x000b  2            0  CRC errors within host-to-device FIS
0x000d  2            0  Non-CRC errors within host-to-device FIS
0x000f  2            0  R_ERR response for host-to-device data FIS, CRC
0x0012  2            0  R_ERR response for host-to-device non-data FIS, CRC
0x8000  4            0  Vendor specific


I`m not a spec. but looks like this problem is something with this type of HDD:

WD NAS RED PRO - 2TB - 7200rpm
Device Model: WDC WD2002FFSX-68PF8N0
Firmware Version: 81.00A81

Last edited:

raito88

Dabbler
Joined
Jan 28, 2019
Messages
17

raito88

Dabbler
Joined
Jan 28, 2019
Messages
17
looks like i found my problem with this Errors!

I read some old posts.. and saw a similar problem .. after upgrade to Version 11.x guy have problems with Disks ...
so i now reinstall Freenas to Version 10 (Corral) - and NO ERROR !!! Buckups runing perfect.

So this type HDD have a some issue with Freenas versinos V11.x
WD NAS RED PRO - 2TB - 7200rpm
Device Model: WDC WD2002FFSX-68PF8N0
Firmware Version: 81.00A81


IQless

Contributor
Joined
Feb 13, 2017
Messages
142
ALL Disks is brand new
Never assume that just because the drives are new, that they can't be faulty.
This is why you should run a propper burnin process for new hardware. It is much better to find out that you received a broken disk and RMA it right away, than wait for it to crash and burn when it is in a vdev that now might die :S

Top
