SOLVED Pool Locked / Pool state is UNKNOWN after power failure

sleeper52

Explorer
Joined
Nov 12, 2018
Messages
91
Currently using 11.2-U5. I am having issues with one of my pools named "Volume2". There was a power failure and the system had shut down inadvertently.

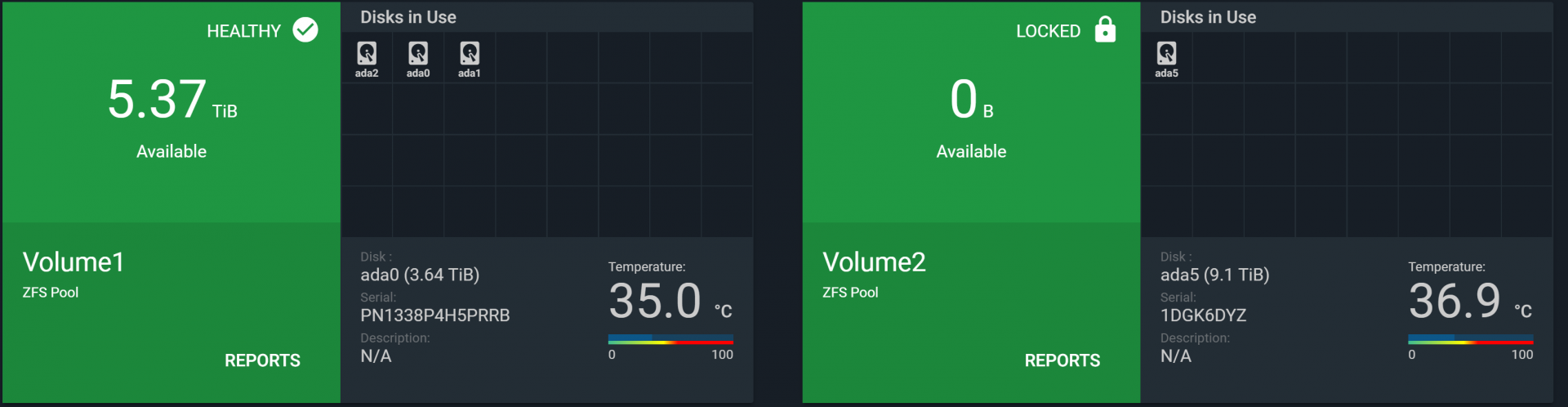

Upon restart, the first pool (Volume1) works fine but only one disk on the on the second pool (Volume2) is detecting on the Dashboard which is ada5.

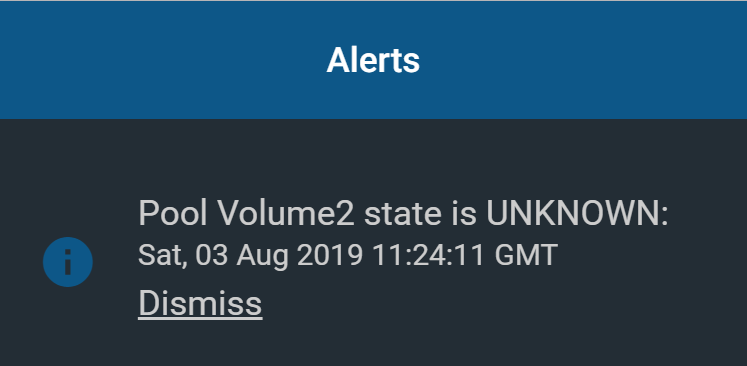

I am getting this alert:

Code:
New alerts:
* Pool Volume2 state is UNAVAIL: One or more devices are faulted in response to IO failures.
* New feature flags are available for volume Volume2. Refer to the "Upgrading a ZFS Pool" subsection in the User Guide "Installing and Upgrading" chapter and "Upgrading" section for more instructions.

Current alerts:
* Pool Volume2 state is UNAVAIL: One or more devices are faulted in response to IO failures.
* New feature flags are available for volume Volume2. Refer to the "Upgrading a ZFS Pool" subsection in the User Guide "Installing and Upgrading" chapter and "Upgrading" section for more instructions.

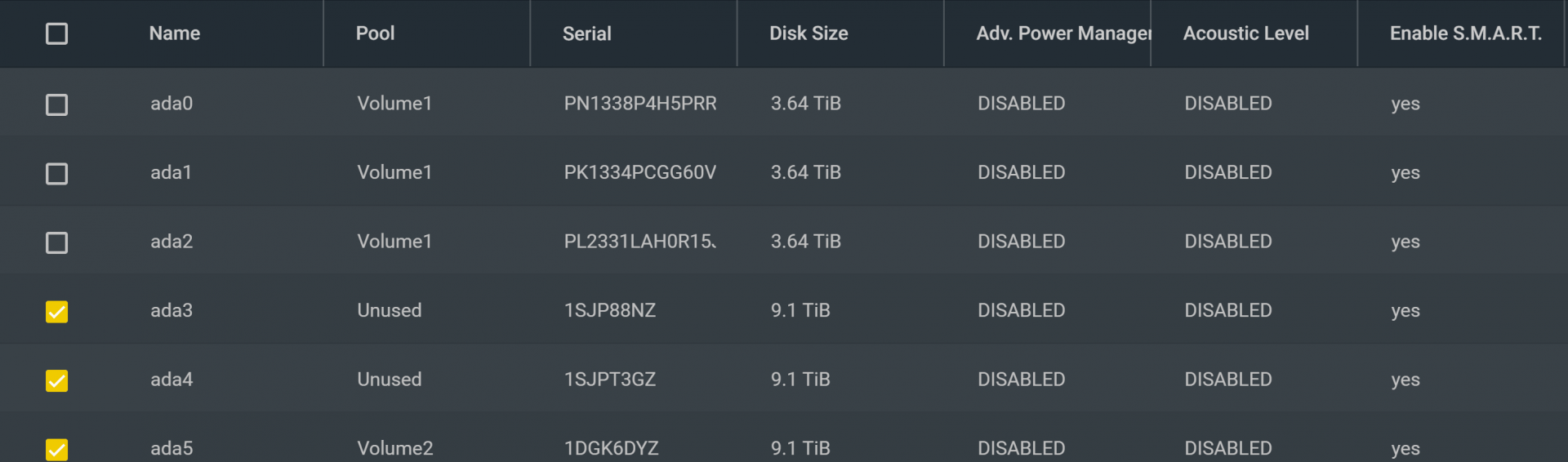

On Storage>Disks, the 2 disks (ada3 and ada4) are present but for some reason are unused and not integrating with Volume2:


I tried to import the disks back in Storage>Pools>Add but I am unable to go past the Import to Pool section as it is empty.

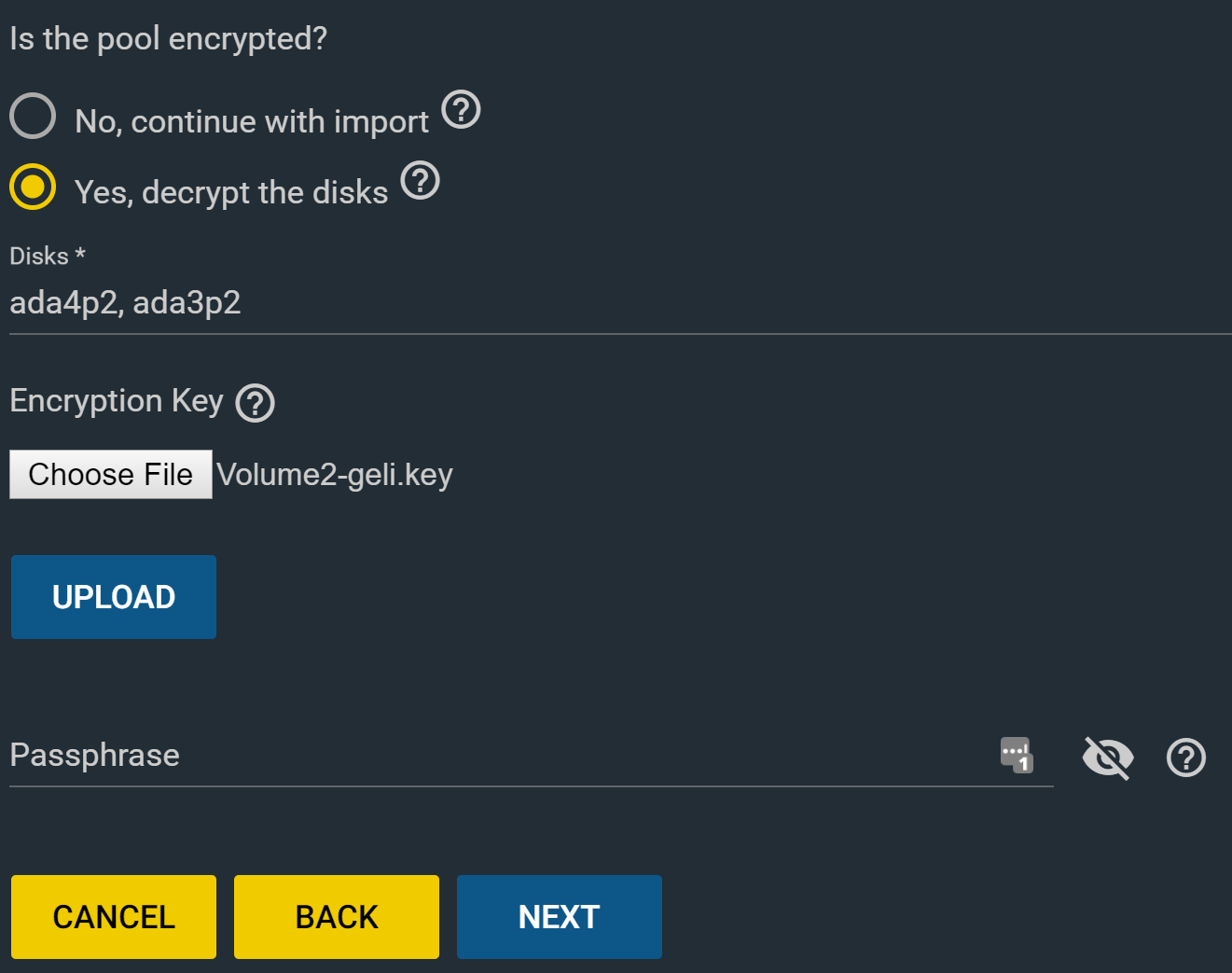

I go Import an Existing Pool>Yes, decrypt the disks, select the disks (ada3p2, ada4p2), uploaded the GELI key

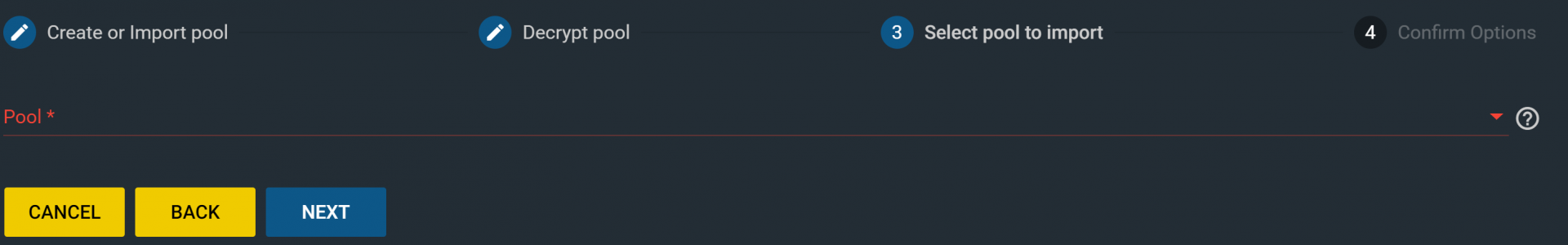

I reach the section on "Select pool to import" but the import drop down is empty and it wont let me proceed if I leave it empty.


I ran the following commands on shell and I am unsure on how to proceed:
Code:
root@Nasgul:~ # zpool status -v
  pool: Volume1
state: ONLINE
  scan: scrub repaired 0 in 0 days 02:15:19 with 0 errors on Mon Jul 15 06:15:20 2019
config:

        NAME                                                STATE     READ WRITE CKSUM
        Volume1                                             ONLINE       0     0     0
          raidz1-0                                          ONLINE       0     0     0
            gptid/1d6a658e-90ba-11e8-b39e-0cc47a6be4ee.eli  ONLINE       0     0     0
            gptid/1ea96684-90ba-11e8-b39e-0cc47a6be4ee.eli  ONLINE       0     0     0
            gptid/1f58fd9d-90ba-11e8-b39e-0cc47a6be4ee.eli  ONLINE       0     0     0

errors: No known data errors

  pool: freenas-boot
state: ONLINE
  scan: scrub repaired 0 in 0 days 00:13:39 with 0 errors on Fri Aug  2 03:58:39 2019
config:

        NAME        STATE     READ WRITE CKSUM
        freenas-boot  ONLINE       0     0     0
          mirror-0  ONLINE       0     0     0
            da0p2   ONLINE       0     0     0
            da1p2   ONLINE       0     0     0

errors: No known data errors
root@Nasgul:~ # zpool status -x
all pools are healthy
root@Nasgul:~ # zpool import
   pool: Volume2
     id: 4441097426616661069
  state: ONLINE
action: The pool can be imported using its name or numeric identifier.
config:

        Volume2                                             ONLINE
          raidz1-0                                          ONLINE
            gptid/d18af88a-f45d-11e8-b14f-0cc47a6be4ee.eli  ONLINE
            gptid/d21ff951-f45d-11e8-b14f-0cc47a6be4ee.eli  ONLINE
            gptid/d2b4a71a-f45d-11e8-b14f-0cc47a6be4ee.eli  ONLINE
root@Nasgul:~ # diskinfo -v ada3
ada3
        4096            # sectorsize
        10000831348736  # mediasize in bytes (9.1T)
        2441609216      # mediasize in sectors
        0               # stripesize
        0               # stripeoffset
        2422231         # Cylinders according to firmware.
        16              # Heads according to firmware.
        63              # Sectors according to firmware.
        HGST HUH721010ALN604    # Disk descr.
        1SJP88NZ        # Disk ident.
        No              # TRIM/UNMAP support
        7200            # Rotation rate in RPM
        Not_Zoned       # Zone Mode
root@Nasgul:~ # diskinfo -v ada4
ada4
        4096            # sectorsize
        10000831348736  # mediasize in bytes (9.1T)
        2441609216      # mediasize in sectors
        0               # stripesize
        0               # stripeoffset
        2422231         # Cylinders according to firmware.
        16              # Heads according to firmware.
        63              # Sectors according to firmware.
        HGST HUH721010ALN604    # Disk descr.
        1SJPT3GZ        # Disk ident.
        No              # TRIM/UNMAP support
        7200            # Rotation rate in RPM
        Not_Zoned       # Zone Mode
root@Nasgul:~ # gpart show ada3
=>         6  2441609205  ada3  GPT  (9.1T)
           6         122        - free -  (488K)
         128     4194304     1  freebsd-swap  (16G)
     4194432  2437414779     2  freebsd-zfs  (9.1T)
root@Nasgul:~ # gpart show ada4
=>         6  2441609205  ada4  GPT  (9.1T)
           6         122        - free -  (488K)
         128     4194304     1  freebsd-swap  (16G)
     4194432  2437414779     2  freebsd-zfs  (9.1T)
root@Nasgul:~ # gpart show ada5
=>         6  2441609205  ada5  GPT  (9.1T)
           6         122        - free -  (488K)
         128     4194304     1  freebsd-swap  (16G)
     4194432  2437414779     2  freebsd-zfs  (9.1T)



Here are the results for the smartctl -a /dev/adaX:
Code:
root@Nasgul:~ # smartctl -a /dev/ada3
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.2-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     HGST Ultrastar He10
Device Model:     HGST HUH721010ALN604
Serial Number:    1SJP88NZ
LU WWN Device Id: 5 000cca 26be5d9e1
Firmware Version: LHFBW2J0
User Capacity:    10,000,831,348,736 bytes [10.0 TB]
Sector Size:      4096 bytes logical/physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-2, ATA8-ACS T13/1699-D revision 4
SATA Version is:  SATA 3.2, 6.0 Gb/s (current: 3.0 Gb/s)
Local Time is:    Mon Aug  5 11:02:39 2019 AWST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x80) Offline data collection activity
                                        was never started.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (   93) seconds.
Offline data collection
capabilities:                    (0x5b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        No Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   2) minutes.
Extended self-test routine
recommended polling time:        (1127) minutes.
SCT capabilities:              (0x003d) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000b   100   100   016    Pre-fail  Always       -       0
  2 Throughput_Performance  0x0005   134   134   054    Pre-fail  Offline      -       96
  3 Spin_Up_Time            0x0007   187   187   024    Pre-fail  Always       -       422 (Average 280)
  4 Start_Stop_Count        0x0012   100   100   000    Old_age   Always       -       117
  5 Reallocated_Sector_Ct   0x0033   100   100   005    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x000b   100   100   067    Pre-fail  Always       -       0
  8 Seek_Time_Performance   0x0005   128   128   020    Pre-fail  Offline      -       18
  9 Power_On_Hours          0x0012   100   100   000    Old_age   Always       -       5215
10 Spin_Retry_Count        0x0013   100   100   060    Pre-fail  Always       -       0
12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       117
22 Helium_Level            0x0023   100   100   025    Pre-fail  Always       -       100
192 Power-Off_Retract_Count 0x0032   100   100   000    Old_age   Always       -       536
193 Load_Cycle_Count        0x0012   100   100   000    Old_age   Always       -       536
194 Temperature_Celsius     0x0002   166   166   000    Old_age   Always       -       36 (Min/Max 25/48)
196 Reallocated_Event_Count 0x0032   100   100   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0022   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0008   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x000a   200   200   000    Old_age   Always       -       0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Short offline       Completed without error       00%      5078         -
# 2  Short offline       Completed without error       00%      4915         -
# 3  Extended offline    Aborted by host               40%      4858         -
# 4  Short offline       Completed without error       00%      4780         -
# 5  Short offline       Completed without error       00%      4593         -
# 6  Extended offline    Aborted by host               40%      4525         -
# 7  Short offline       Completed without error       00%      4462         -
# 8  Short offline       Completed without error       00%      4379         -
# 9  Extended offline    Interrupted (host reset)      50%      4310         -
#10  Short offline       Completed without error       00%      4245         -
#11  Short offline       Completed without error       00%      4083         -
#12  Extended offline    Completed without error       00%      4006         -
#13  Short offline       Completed without error       00%      3924         -
#14  Short offline       Completed without error       00%      3806         -
#15  Extended offline    Interrupted (host reset)      50%      3740         -
#16  Short offline       Completed without error       00%      3671         -
#17  Short offline       Completed without error       00%      3499         -
#18  Extended offline    Completed without error       00%      3433         -
#19  Short offline       Completed without error       00%      3352         -
#20  Short offline       Completed without error       00%      3195         -
#21  Extended offline    Completed without error       00%      3117         -

SMART Selective self-test log data structure revision number 1
SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.

root@Nasgul:~ # smartctl -a /dev/ada4
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.2-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     HGST Ultrastar He10
Device Model:     HGST HUH721010ALN604
Serial Number:    1SJPT3GZ
LU WWN Device Id: 5 000cca 26be61550
Firmware Version: LHFBW2J0
User Capacity:    10,000,831,348,736 bytes [10.0 TB]
Sector Size:      4096 bytes logical/physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-2, ATA8-ACS T13/1699-D revision 4
SATA Version is:  SATA 3.2, 6.0 Gb/s (current: 3.0 Gb/s)
Local Time is:    Mon Aug  5 11:05:32 2019 AWST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x80) Offline data collection activity
                                        was never started.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (   93) seconds.
Offline data collection
capabilities:                    (0x5b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        No Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   2) minutes.
Extended self-test routine
recommended polling time:        (1161) minutes.
SCT capabilities:              (0x003d) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000b   100   100   016    Pre-fail  Always       -       0
  2 Throughput_Performance  0x0005   133   133   054    Pre-fail  Offline      -       100
  3 Spin_Up_Time            0x0007   192   192   024    Pre-fail  Always       -       267 (Average 417)
  4 Start_Stop_Count        0x0012   100   100   000    Old_age   Always       -       108
  5 Reallocated_Sector_Ct   0x0033   100   100   005    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x000b   100   100   067    Pre-fail  Always       -       0
  8 Seek_Time_Performance   0x0005   128   128   020    Pre-fail  Offline      -       18
  9 Power_On_Hours          0x0012   100   100   000    Old_age   Always       -       5158
10 Spin_Retry_Count        0x0013   100   100   060    Pre-fail  Always       -       0
12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       108
22 Helium_Level            0x0023   100   100   025    Pre-fail  Always       -       100
192 Power-Off_Retract_Count 0x0032   100   100   000    Old_age   Always       -       419
193 Load_Cycle_Count        0x0012   100   100   000    Old_age   Always       -       419
194 Temperature_Celsius     0x0002   166   166   000    Old_age   Always       -       36 (Min/Max 25/45)
196 Reallocated_Event_Count 0x0032   100   100   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0022   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0008   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x000a   200   200   000    Old_age   Always       -       0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Short offline       Completed without error       00%      5021         -
# 2  Short offline       Completed without error       00%      4858         -
# 3  Extended offline    Aborted by host               40%      4802         -
# 4  Short offline       Completed without error       00%      4723         -
# 5  Short offline       Completed without error       00%      4536         -
# 6  Extended offline    Aborted by host               40%      4469         -
# 7  Short offline       Completed without error       00%      4406         -
# 8  Short offline       Completed without error       00%      4323         -
# 9  Extended offline    Interrupted (host reset)      50%      4254         -
#10  Short offline       Completed without error       00%      4189         -
#11  Short offline       Completed without error       00%      4027         -
#12  Extended offline    Completed without error       00%      3950         -
#13  Short offline       Completed without error       00%      3867         -
#14  Short offline       Completed without error       00%      3749         -
#15  Extended offline    Interrupted (host reset)      50%      3684         -
#16  Short offline       Completed without error       00%      3615         -
#17  Short offline       Completed without error       00%      3443         -
#18  Extended offline    Completed without error       00%      3376         -
#19  Short offline       Completed without error       00%      3296         -
#20  Short offline       Completed without error       00%      3138         -
#21  Extended offline    Completed without error       00%      3062         -

SMART Selective self-test log data structure revision number 1
SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.


root@Nasgul:~ # smartctl -a /dev/ada5
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.2-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     HGST Ultrastar He10
Device Model:     HGST HUH721010ALN604
Serial Number:    1DGK6DYZ
LU WWN Device Id: 5 000cca 26cc7d266
Firmware Version: LHFBW2J0
User Capacity:    10,000,831,348,736 bytes [10.0 TB]
Sector Size:      4096 bytes logical/physical
Rotation Rate:    7200 rpm
Form Factor:      3.5 inches
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ACS-2, ATA8-ACS T13/1699-D revision 4
SATA Version is:  SATA 3.2, 6.0 Gb/s (current: 3.0 Gb/s)
Local Time is:    Mon Aug  5 10:43:11 2019 AWST
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x80) Offline data collection activity
                                        was never started.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (   93) seconds.
Offline data collection
capabilities:                    (0x5b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        No Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   2) minutes.
Extended self-test routine
recommended polling time:        (1181) minutes.
SCT capabilities:              (0x003d) SCT Status supported.
                                        SCT Error Recovery Control supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x000b   100   100   016    Pre-fail  Always       -       0
  2 Throughput_Performance  0x0005   133   133   054    Pre-fail  Offline      -       100
  3 Spin_Up_Time            0x0007   147   147   024    Pre-fail  Always       -       447 (Average 446)
  4 Start_Stop_Count        0x0012   100   100   000    Old_age   Always       -       103
  5 Reallocated_Sector_Ct   0x0033   100   100   005    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x000b   100   100   067    Pre-fail  Always       -       0
  8 Seek_Time_Performance   0x0005   128   128   020    Pre-fail  Offline      -       18
  9 Power_On_Hours          0x0012   100   100   000    Old_age   Always       -       5159
10 Spin_Retry_Count        0x0013   100   100   060    Pre-fail  Always       -       0
12 Power_Cycle_Count       0x0032   100   100   000    Old_age   Always       -       103
22 Helium_Level            0x0023   100   100   025    Pre-fail  Always       -       100
192 Power-Off_Retract_Count 0x0032   100   100   000    Old_age   Always       -       408
193 Load_Cycle_Count        0x0012   100   100   000    Old_age   Always       -       408
194 Temperature_Celsius     0x0002   157   157   000    Old_age   Always       -       38 (Min/Max 25/46)
196 Reallocated_Event_Count 0x0032   100   100   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0022   100   100   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0008   100   100   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x000a   200   200   000    Old_age   Always       -       0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Short offline       Completed without error       00%      5022         -
# 2  Short offline       Completed without error       00%      4859         -
# 3  Extended offline    Aborted by host               40%      4802         -
# 4  Short offline       Completed without error       00%      4724         -
# 5  Short offline       Completed without error       00%      4537         -
# 6  Extended offline    Aborted by host               40%      4469         -
# 7  Short offline       Completed without error       00%      4406         -
# 8  Short offline       Completed without error       00%      4323         -
# 9  Extended offline    Interrupted (host reset)      50%      4254         -
#10  Short offline       Completed without error       00%      4189         -
#11  Short offline       Completed without error       00%      4027         -
#12  Extended offline    Completed without error       00%      3951         -
#13  Short offline       Completed without error       00%      3868         -
#14  Short offline       Completed without error       00%      3750         -
#15  Extended offline    Interrupted (host reset)      50%      3684         -
#16  Short offline       Completed without error       00%      3615         -
#17  Short offline       Completed without error       00%      3443         -
#18  Extended offline    Completed without error       00%      3377         -
#19  Short offline       Completed without error       00%      3296         -
#20  Short offline       Completed without error       00%      3139         -
#21  Extended offline    Completed without error       00%      3062         -

SMART Selective self-test log data structure revision number 1
SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.


I will truly be grateful if someone can help.

Last edited:

sleeper52

Explorer
Joined
Nov 12, 2018
Messages
91
Update.

Instead of using the GUI to import an existing Pool for Volume2, I used the CLI (zpool import Volume2).
It is now detecting all the drives on Volume2

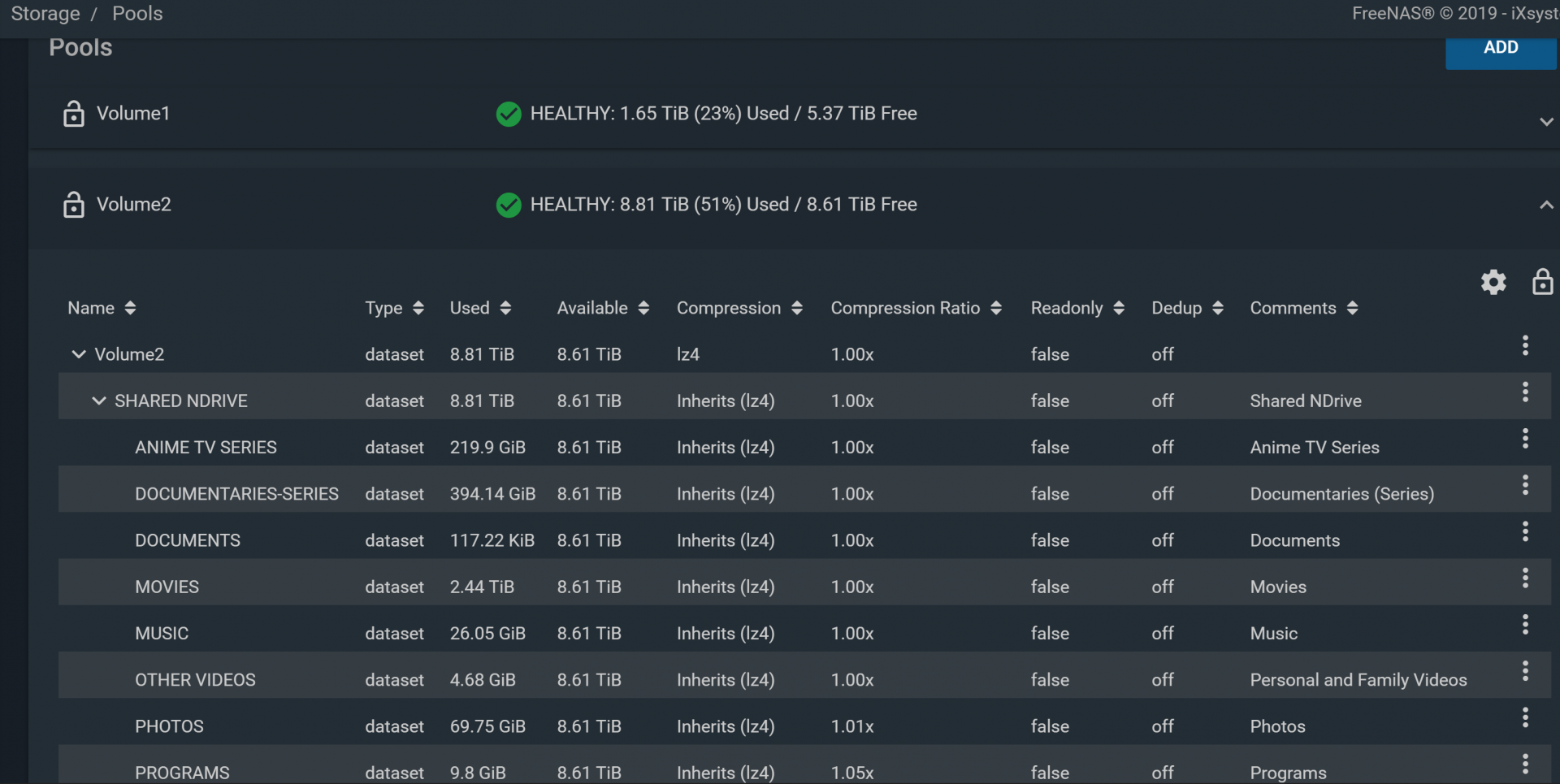

It is also now detecting on the Storage>Pool section


Here is the result of a zpool status:
Code:
root@Nasgul:~ # zpool status
  pool: Volume1
state: ONLINE
  scan: scrub repaired 0 in 0 days 02:15:19 with 0 errors on Mon Jul 15 06:15:20 2019
config:

        NAME                                                STATE     READ WRITE CKSUM
        Volume1                                             ONLINE       0     0     0
          raidz1-0                                          ONLINE       0     0     0
            gptid/1d6a658e-90ba-11e8-b39e-0cc47a6be4ee.eli  ONLINE       0     0     0
            gptid/1ea96684-90ba-11e8-b39e-0cc47a6be4ee.eli  ONLINE       0     0     0
            gptid/1f58fd9d-90ba-11e8-b39e-0cc47a6be4ee.eli  ONLINE       0     0     0

errors: No known data errors

  pool: Volume2
state: ONLINE
  scan: scrub repaired 0 in 0 days 07:44:57 with 0 errors on Mon Jul 15 11:44:57 2019
config:

        NAME                                                STATE     READ WRITE CKSUM
        Volume2                                             ONLINE       0     0     0
          raidz1-0                                          ONLINE       0     0     0
            gptid/d18af88a-f45d-11e8-b14f-0cc47a6be4ee.eli  ONLINE       0     0     0
            gptid/d21ff951-f45d-11e8-b14f-0cc47a6be4ee.eli  ONLINE       0     0     0
            gptid/d2b4a71a-f45d-11e8-b14f-0cc47a6be4ee.eli  ONLINE       0     0     0

errors: No known data errors

  pool: freenas-boot
state: ONLINE
  scan: scrub repaired 0 in 0 days 00:13:39 with 0 errors on Fri Aug  2 03:58:39 2019
config:

        NAME        STATE     READ WRITE CKSUM
        freenas-boot  ONLINE       0     0     0
          mirror-0  ONLINE       0     0     0
            da0p2   ONLINE       0     0     0
            da1p2   ONLINE       0     0     0

errors: No known data errors


For some reason however, I still cannot access the drives.


On CLI, I cannot find Volume2 on /mnt
Code:
root@Nasgul:~ # cd /mnt/
md_size  Volume1/
root@Nasgul:~ # cd /mnt/


Anyone have any advice? Could this have to do with encryption and if so would I need to somehow upload the GELI key? Or am I missing a certain step?

Last edited:

sleeper52

Explorer
Joined
Nov 12, 2018
Messages
91
Update.

I checked Storage>Pools>Edit Permissions

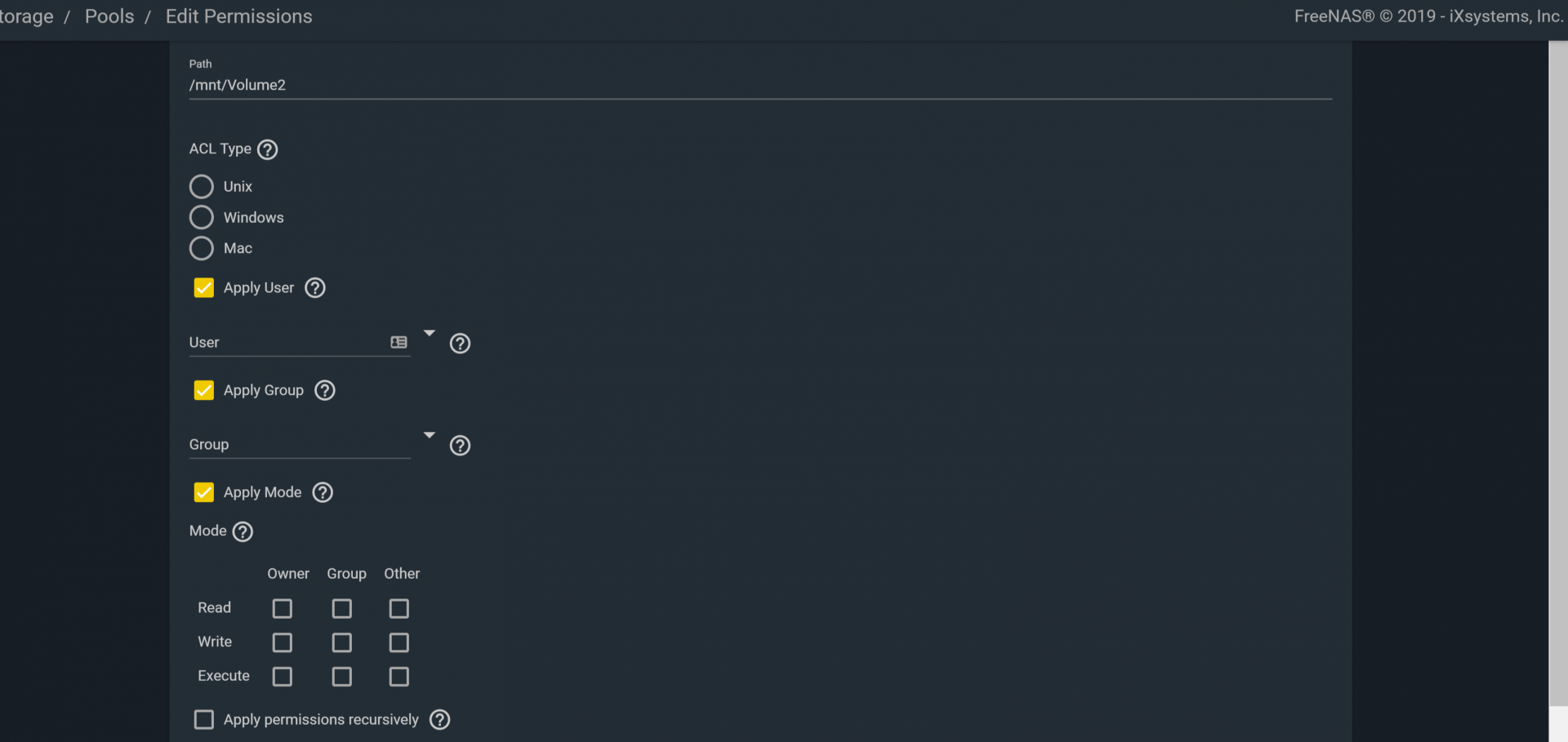

I'm finding that Volume2 does not have the permissions set:

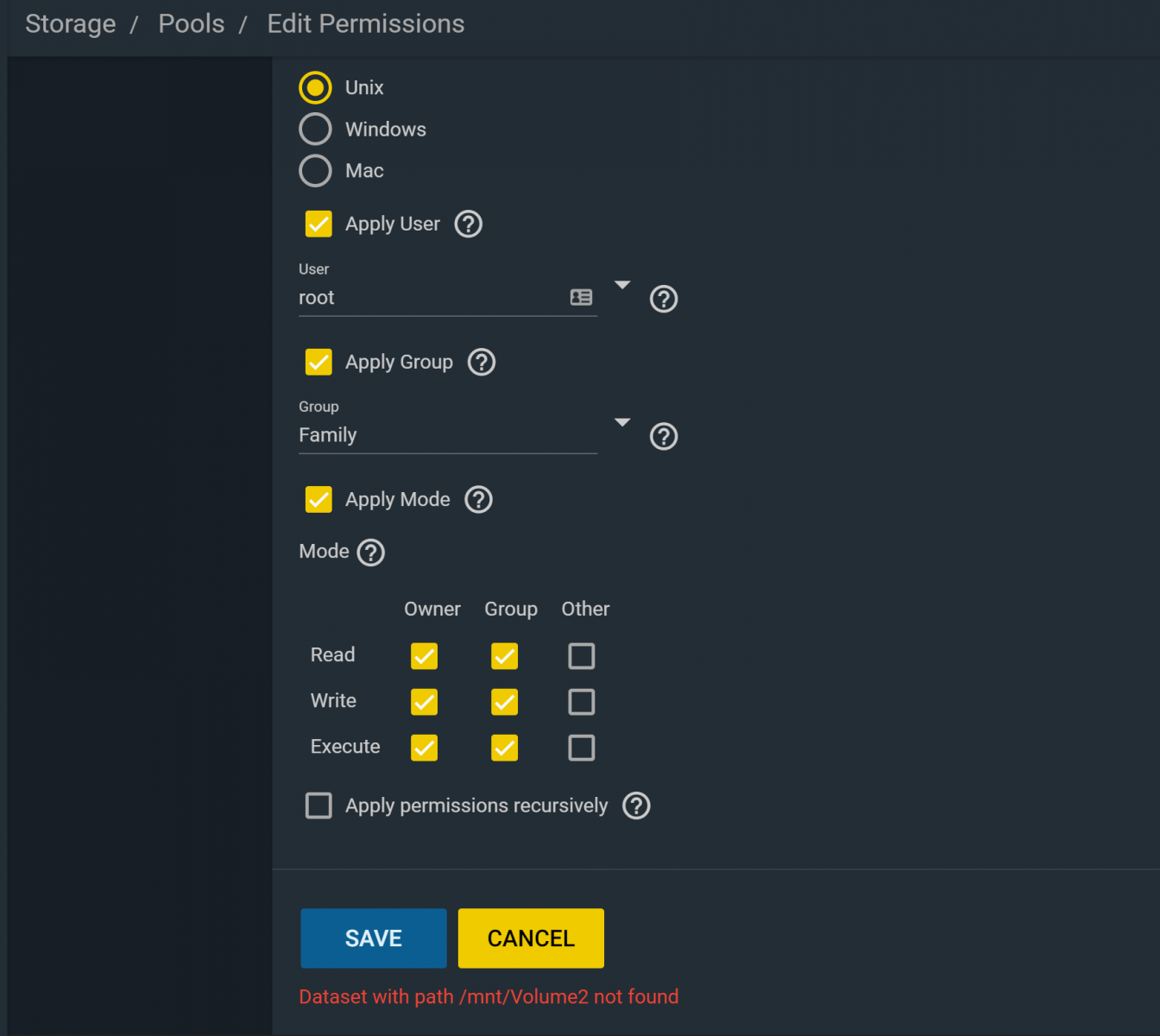

I tried to set the permissions but I get an error "Dataset with path /mnt/Volume2 not found"


sleeper52

Explorer
Joined
Nov 12, 2018
Messages
91
Update.

After being frustrated I decided to turn off the system. Upon my next power up, the second pool (Volume2) is now accessible and working 100% fine.
It turns out the import worked and the damn thing just need to be restarted a couple of times.

I'm wondering if there is a way for me to just remove the encryption for all my pools? I checked the manual and if I'm reading this correctly I just go to Storage>Pool>Select the pool and the lock icon>Delete Recovery Key? Is this correct?

Last edited:

tyszek

Cadet
Joined
Apr 2, 2020
Messages
1
Hello
I am just after 3 installations of freenas.
Every installation is the same problem; /
After the server restart, the settings disappear.
Pools are visible but with unknow status.
Did you solve this problem?

Thanks in advance :)
Regards

Top
