Plugin Fails (Nextcloud) - 12.0-U6 - Acquiring DHCP address: FAILED

jross9121

Cadet
Joined
Oct 18, 2021
Messages
2
Hi all,

Trying to perform a very basic install of the NextCloud plugin using DHCP or even Static IP.

DHCP Error: nextcloud_jail had a failure Exception: RuntimeError Message: + Acquiring DHCP address: FAILED, address received: ERROR, check jail logs Stopped nextcloud_jail due to DHCP failure Partial plugin destroyed

Static IP: No error displayed. The IP pings for 10 seconds or so then the plugin is destroyed and I have to log back in to truenas. The plugin is there for the 10 seconds then disappears.

I have a brand new setup with a few old parts lying around. I am new to TrueNAS and trying to set up a basic sandbox NAS.

I installed a fresh copy of TrueNAS-12.0-U6 using DHCP. Upon logging in, I added the second SSD 710 to the boot pool. Other than that I have not made any changes to the default software configuration.

I have seen a few posts about this error and in every case, people call out that there is a problem with the network. I just don't see how this would be the case for my setup. I am utilizing a Cisco SG300 with a single connection to truenas on an access port and my standard VLAN. There is no port security or other settings applied nor any ARP inspection as it also is a pretty basic setup. DHCP is delivered by my default route which is a PFSENSE firewall. I have an ESXi host on my network as well that has guest VMs that have no issue DHCPing on my network. Almost all of my other devices DHCP no issue. The TrueNAS itself is also DHCPing on my network on this port.

My understanding is that the plugin installation will create a Bridge0 and VNET0 to take care of the switching for VMs and Plugins, but can't seem to figure out why this is not working. I feel like there is an advanced setting or some pre-networking I should do on the TrueNAS

Any help would be appreciated.



MotherboardS1200BTS mATX Server Motherboard LGA 1155 (E3-1200 series processors or Gen 3 i3) - 32GB RAM MAX
CPUIntel Xeon E3-1240 v2 3.4GHz quad core cpu
RAM16GB (4x4GB) KVR16E11S8 DDR3-1600 ECC RAM
NAS POOL4 x 2TB WD2003FYYS
BOOT POOL2 x Intel SSD 710 100GB
NICOnboard NIC


Error: nextcloud_jail had a failure Exception: RuntimeError Message: + Acquiring DHCP address: FAILED, address received: ERROR, check jail logs Stopped nextcloud_jail due to DHCP failure Partial plugin destroyed

DHCP Logs
Oct 18 14:59:50 truenas kernel: bridge0: Ethernet address: 02:47:62:0b:ca:00
Oct 18 14:59:50 truenas kernel: em1: link state changed to DOWN
Oct 18 14:59:50 truenas kernel: bridge0: link state changed to UP
Oct 18 14:59:50 truenas kernel: em1: promiscuous mode enabled
Oct 18 14:59:50 truenas kernel: epair0a: Ethernet address: 02:91:38:b0:f3:0a
Oct 18 14:59:50 truenas kernel: epair0b: Ethernet address: 02:91:38:b0:f3:0b
Oct 18 14:59:50 truenas kernel: epair0a: link state changed to UP
Oct 18 14:59:50 truenas kernel: epair0b: link state changed to UP
Oct 18 14:59:50 truenas kernel: epair0a: changing name to 'vnet0.1'
Oct 18 14:59:50 truenas kernel: vnet0.1: promiscuous mode enabled
Oct 18 14:59:51 truenas kernel: lo0: link state changed to UP
Oct 18 14:59:53 truenas kernel: vnet0.1: link state changed to DOWN
Oct 18 14:59:53 truenas kernel: epair0b: link state changed to DOWN
Oct 18 14:59:53 truenas kernel: em1: link state changed to UP
Oct 18 14:59:54 truenas kernel: em1: link state changed to DOWN
Oct 18 14:59:54 truenas kernel: in6_purgeaddr: err=65, destination address delete failed
Oct 18 14:59:57 truenas kernel: em1: link state changed to UP
Oct 18 15:00:02 truenas 1 2021-10-18T15:00:02.172345-07:00 truenas.rossnet.local dhclient 2376 - - New IP Address (em1): 192.168.0.20
Oct 18 15:00:02 truenas 1 2021-10-18T15:00:02.173020-07:00 truenas.rossnet.local dhclient 2377 - - New Subnet Mask (em1): 255.255.255.0
Oct 18 15:00:02 truenas 1 2021-10-18T15:00:02.173712-07:00 truenas.rossnet.local dhclient 2378 - - New Broadcast Address (em1): 192.168.0.255
Oct 18 15:00:02 truenas 1 2021-10-18T15:00:02.174336-07:00 truenas.rossnet.local dhclient 2379 - - New Routers (em1): 192.168.0.1

Static IP logs

Oct 19 07:03:58 truenas kernel: epair0a: Ethernet address: 02:02:f4:98:ea:0a
Oct 19 07:03:58 truenas kernel: epair0b: Ethernet address: 02:02:f4:98:ea:0b
Oct 19 07:03:58 truenas kernel: epair0a: link state changed to UP
Oct 19 07:03:58 truenas kernel: epair0b: link state changed to UP
Oct 19 07:03:58 truenas kernel: epair0a: changing name to 'vnet0.10'
Oct 19 07:03:58 truenas kernel: em1: link state changed to DOWN
Oct 19 07:03:58 truenas kernel: vnet0.10: promiscuous mode enabled
Oct 19 07:03:58 truenas kernel: lo0: link state changed to UP
Oct 19 07:04:01 truenas kernel: vnet0.10: link state changed to DOWN
Oct 19 07:04:01 truenas kernel: epair0b: link state changed to DOWN
Oct 19 07:04:01 truenas kernel: in6_purgeaddr: err=65, destination address delete failed
Oct 19 07:04:02 truenas kernel: epair0a: Ethernet address: 02:b5:f1:70:75:0a
Oct 19 07:04:02 truenas kernel: epair0b: Ethernet address: 02:b5:f1:70:75:0b
Oct 19 07:04:02 truenas kernel: epair0a: link state changed to UP
Oct 19 07:04:02 truenas kernel: epair0b: link state changed to UP
Oct 19 07:04:02 truenas kernel: epair0a: changing name to 'vnet0.11'
Oct 19 07:04:03 truenas kernel: vnet0.11: promiscuous mode enabled
Oct 19 07:04:03 truenas kernel: lo0: link state changed to UP
Oct 19 07:04:06 truenas kernel: em1: link state changed to UP
Oct 19 07:04:12 truenas 1 2021-10-19T07:04:12.103571-07:00 truenas.rossnet.local dhclient 22791 - - New IP Address (em1): 192.168.0.20
Oct 19 07:04:12 truenas 1 2021-10-19T07:04:12.104269-07:00 truenas.rossnet.local dhclient 22792 - - New Subnet Mask (em1): 255.255.255.0
Oct 19 07:04:12 truenas 1 2021-10-19T07:04:12.104913-07:00 truenas.rossnet.local dhclient 22793 - - New Broadcast Address (em1): 192.168.0.255
Oct 19 07:04:12 truenas 1 2021-10-19T07:04:12.105514-07:00 truenas.rossnet.local dhclient 22794 - - New Routers (em1): 192.168.0.1
Oct 19 07:04:25 truenas kernel: vnet0.11: link state changed to DOWN
Oct 19 07:04:25 truenas kernel: epair0b: link state changed to DOWN
Oct 19 07:04:25 truenas kernel: em1: link state changed to DOWN
Oct 19 07:04:28 truenas kernel: em1: link state changed to UP
Oct 19 07:04:45 truenas 1 2021-10-19T07:04:45.257712-07:00 truenas.rossnet.local dhclient 23030 - - New IP Address (em1): 192.168.0.20
Oct 19 07:04:45 truenas 1 2021-10-19T07:04:45.258421-07:00 truenas.rossnet.local dhclient 23031 - - New Subnet Mask (em1): 255.255.255.0
Oct 19 07:04:45 truenas 1 2021-10-19T07:04:45.259108-07:00 truenas.rossnet.local dhclient 23032 - - New Broadcast Address (em1): 192.168.0.255
Oct 19 07:04:45 truenas 1 2021-10-19T07:04:45.259826-07:00 truenas.rossnet.local dhclient 23033 - - New Routers (em1): 192.168.0.1
Oct 19 07:05:13 truenas kernel: in6_purgeaddr: err=65, destination address delete failed


jross9121

Cadet
Joined
Oct 18, 2021
Messages
2

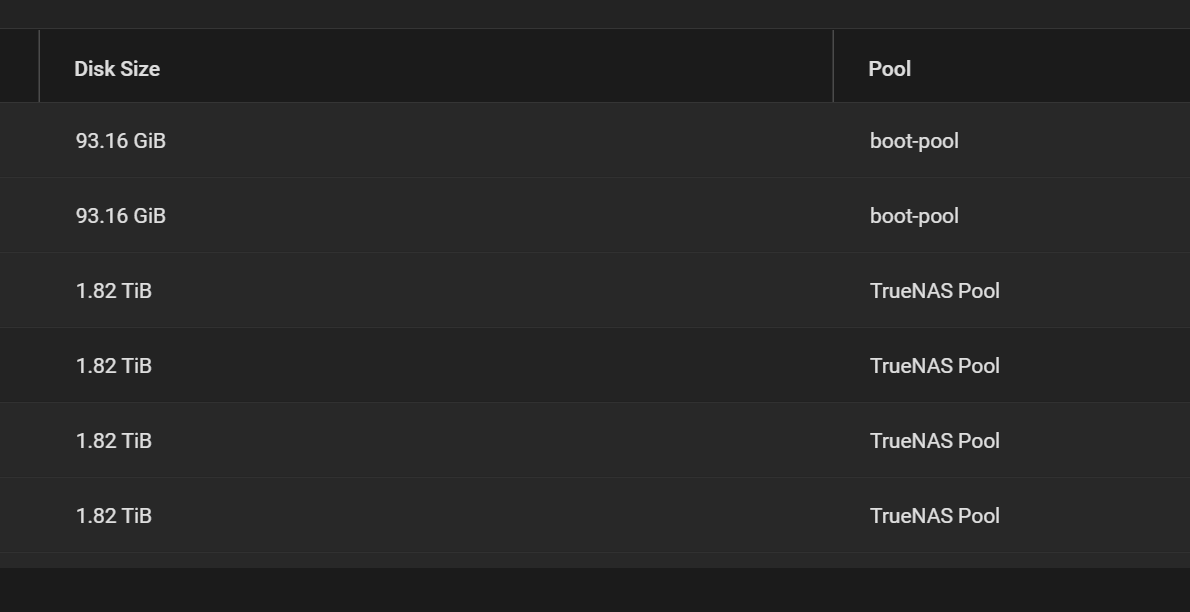

I forgot to mention that I also DID create a storage pool using all 4 disks. I also assigned the jail storage to that same single pool. Again very basic.
