Grafana-influx plugin/ TrueNas 12

[Jayrel]

I've been looking for some type of documentation on internal setup of the Grafana/Influxdb in order to access the influxdb config file. Inside the config file I can enable the graphite plugin to have TrueNas reporting feed stats to influx. Does anyone know the command line inside the plugin shell to access the config?



[sretalla]

The conf for grafana and influx are in /usr/local/etc

You can use ee to edit them, so ee /usr/local/etc/influxd.conf or ee /usr/local/etc/grafana.conf



[Jayrel]

The conf for grafana and influx are in /usr/local/etc

You can use ee to edit them, so ee /usr/local/etc/influxd.conf or ee /usr/local/etc/grafana.conf

Thank you very much!



[Lightningblade]

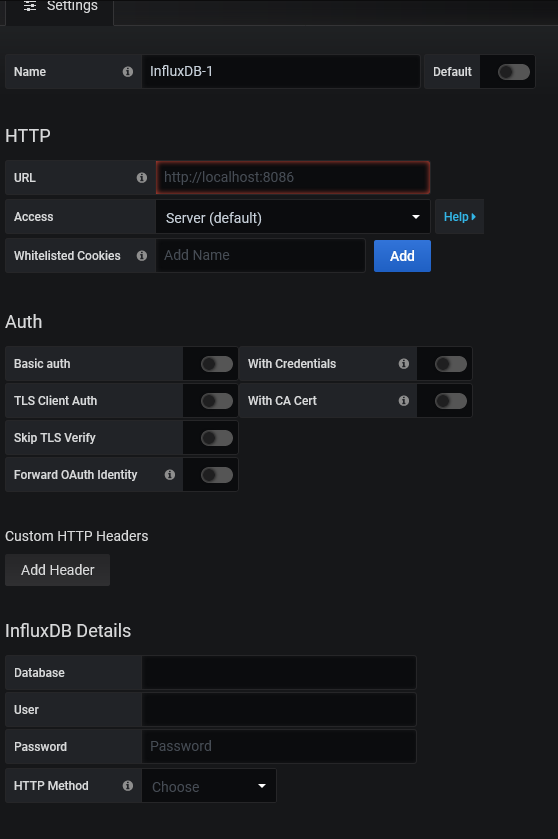

Thanks, but what to change there? How do I add InfluxDB as a data source or what do I need to setup before the plugin truly works? I tried localhost:8088 with the user/pass in the "post install notes" but it wont connect "Network Error: Bad Gateway(502)"



[sretalla]

ocalhost:8088

Where did you try that from? usually I would expect you to do that from a web browser, so not on in the plugin jail, which would mean that localhost isn't the right address.



[Lightningblade]

Yes in the Grafana web UI. The TrueNAS plugin comes with both Grafana and InfluxDB, but they are not connected by default. (There are no datasets set in Grafana). I assumed since InfluxDB and Grafana were on the same iocage (plugin), localhost would be the right choice



[sretalla]

OK, now I'm with you.

Have a look here:

SAML POST Binding in progress...

A few steps above the screenshots, it refers to creating a database... you must do that or you can't connect.



[Lightningblade]

Thank you but I hoped for a more plug and play / one click installation from this plugin.

But I guess there is no way around manually setting it up. But Thank you anyway



[Jayrel]

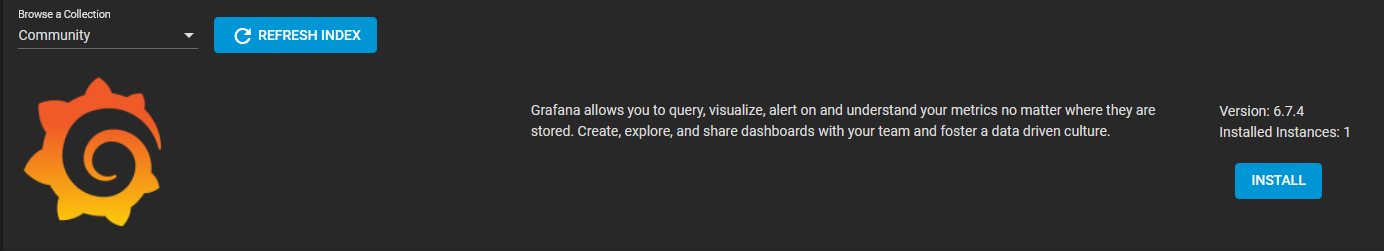

Thank you but I hoped for a more plug and play / one click installation from this plugin. View attachment 42503
But I guess there is no way around manually setting it up. But Thank you anyway

Yes Lightningblade it was a bit of a setup. Just looking for them to update the Grafana Version or how to update to Grafana 7 within the plugin.



[sretalla]

Just looking for them to update the Grafana Version or how to update to Grafana 7 within the plugin

iocage console grafana
pkg upgrade
pkg install grafana7 (need to say yes a few times, you should see it will replace v6 with v7 and will re-use the same grafana user)
exit
iocage restart grafana



[Jayrel]

iocage console grafana
pkg upgrade
pkg install grafana7 (need to say yes a few times, you should see it will replace v6 with v7 and will re-use the same grafana user)
exit
iocage restart grafana

Thank you so very much.
