freenas Monitor stuck at "boot" but boots anyway

luler

Cadet
Joined
Jun 4, 2015
Messages
7

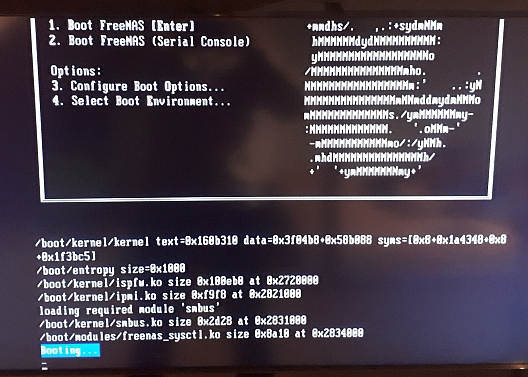

Hello, my freenas- install stops the output to the Monitor with the "booting"-text on the blue background (see attached image). Firt I thought the system hangs, but Freenasloads an works like a charm! It ist really only the monitor-output that hangs. The system is:
OS Version:
FreeNAS-11.2-U2
(Build Date: Feb 14, 2019 20:8)

Processor:
Intel(R) Celeron(R) CPU J1900 @ 1.99GHz (4 cores)

Memory:
8 GiB

HostName:
Backup.xxxxxx

Uptime:
1:49PM up 7 days, 18:44, 0 users

this behavior is since the Upgrade to Freenas 11.2.

My goal ist to see all output to the Monitor, like normal.

Thanks for your help!


Attachments

  • fnb.jpg
    170.2 KB · Views: 778

Chris Moore

Hall of Famer
Joined
May 2, 2015
Messages
10,080

luler

Cadet
Joined
Jun 4, 2015
Messages
7
Hello, the board has DVI and VGA output. The Monitor is connected to the VGA-Output. On the DVI-Port, the problams are the same, after the "boot"-text the screens doesn´t show any more output.

The Board has the following specs:

  • Prozessor
    1. Built in with an Intel® Celeron® Quad-Core J1900 SoC (2.0 GHz)
      * Do not disassemble the onboard SoC and the heatsink by yourself to avoid damage to these components.
    2. 2 MB Cache
  • Arbeitsspeicher
    1. 2 x DDR3/-L SO-DIMM sockets supporting up to 8 GB of system memory
      * If only one DDR3/-L memory module is to be installed, be sure to install it in the SODIMM_1 socket.
    2. Dual channel memory architecture
    3. Support for DDR3/-L 1333 MHz memory modules
    4. Support for non-ECC memory modules
  • Onboard Grafik
    Integrated in the SoC:
    1. 1 x D-Sub port, supporting a maximum resolution of 2560x1600
    2. 1 x DVI-D port, supporting a maximum resolution of 1920x1080
      * The DVI-D port does not support D-Sub connection by adapter.
  • Audio
    1. Realtek® ALC887 codec
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    4. Support for S/PDIF Out
  • LAN
    1. 2 x Realtek® GbE LAN chips (10/100/1000 Mbit)
  • Erweiterungssteckplätze
    1. 1 x PCI slot
    2. 1 x Mini PCI Express x1 slot
      (The Mini PCI Express slot conforms to PCI Express 2.0 standard.)
      (For Mini-PCIE card/no mSATA card)
  • Storage Interface
    Integrated in the SoC:
    1. 2 x SATA 3Gb/s connectors
  • USB
    Integrated in the SoC:
    1. 2 x USB 2.0/1.1 ports (available through the internal USB header)
    SoC + Renesas® uPD720210 USB 3.0 Hub:
    1. 4 x USB 3.0/2.0 ports on the back panel
  • Interne I/O Anschlüsse
    1. 1 x 24-pin ATX main power connector
    2. 1 x 4-pin ATX 12V power connector
    3. 2 x SATA 3Gb/s connectors
    4. 1 x CPU fan header
    5. 1 x system fan header
    6. 1 x front panel header
    7. 1 x front panel audio header
    8. 1 x S/PDIF Out header
    9. 1 x USB 2.0/1.1 header
    10. 1 x parallel port header
    11. 1 x Clear CMOS jumper
    12. 1 x chassis intrusion header
    13. 1 x debug card header
  • Rückseite I/O Panel
    1. 1 x PS/2 keyboard port
    2. 1 x PS/2 mouse port
    3. 1 x D-Sub port
    4. 1 x DVI-D port
    5. 2 x serial ports
    6. 4 x USB 3.0/2.0 ports
    7. 2 x RJ-45 ports
    8. 3 x audio jacks (Line In, Line Out, Mic In)
  • I/O
    1. iTE® I/O Controller Chip
  • H/W Überwachung
    1. System voltage detection
    2. CPU/System temperature detection
    3. CPU/System fan speed detection
    4. CPU/System fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 2 x 64 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. Support for DualBIOS™
    4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Einzigartige Funktionen
    1. Support for @Bios
    2. Support for Xpress Install
    3. Support for APP Center
      * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
    4. Support for ON/OFF Charge


jgreco

Resident Grinch
Joined
May 29, 2011
Messages
18,681
Really sounds like some sort of vt() problem with the new virtual terminal driver. This isn't that shocking as there are tons of exceptions and special cases needed to make some of the newer stuff work correctly. :-/


Chris Moore

Hall of Famer
Joined
May 2, 2015
Messages
10,080
Hello, the board has DVI and VGA output. The Monitor is connected to the VGA-Output. On the DVI-Port, the problams are the same, after the "boot"-text the screens doesn´t show any more output.

The Board has the following specs:
Thanks for the long list there, but the brand of board and model number would have been enough and I could look the rest up instead of you needing to type all that out.
I agree with @jgreco and think this might need a bug report so the development team can have a shot at making an adjustment to the software.

Are you familiar with the process of creating a bug report?


Chris Moore

Hall of Famer
Joined
May 2, 2015
Messages
10,080
2 x Realtek® GbE LAN chips (10/100/1000 Mbit)
Not related to the video situation, but this is a poor NIC for use with FreeNAS.
When you are ready to replace this, you should look at the hardware recommendations here:

Hardware Recommendations Guide Rev. 1e) 2017-05-06
https://forums.freenas.org/index.php?resources/hardware-recommendations-guide.12/

Hardware Recommendations by @cyberjock - from 26 Aug 2014 - and still valid
https://forums.freenas.org/threads/hardware-recommendations-read-this-first.23069/


luler

Cadet
Joined
Jun 4, 2015
Messages
7
Thank you, chris Moore. I didn´t type that out, only copied it from the brands Homepage. This is a vey old board and this server is a ZFS-replication target and additional samba4 DC. It will be replaced soon...


Chris Moore

Hall of Famer
Joined
May 2, 2015
Messages
10,080
Thank you, chris Moore. I didn´t type that out, only copied it from the brands Homepage. This is a vey old board and this server is a ZFS-replication target and additional samba4 DC. It will be replaced soon...
No need to go with latest generation gear, but I would suggest a server board just for the advantage of remote management with IPMI.


jgreco

Resident Grinch
Joined
May 29, 2011
Messages
18,681
No need to go with latest generation gear, but I would suggest a server board just for the advantage of remote management with IPMI.

And server boards typically do VGA, and server VGA is a non-problematic sort of thing.


pfonseca

Dabbler
Joined
Jul 27, 2012
Messages
33
Hi,

I've the same issue that becomes from the upgrade to 11.2 and now at 11.3. What is strange is that the installation from the iso file works ok without any issue. I think that this can be solved by a parameter on grub file. What para meter is my doubt...

Regards,
