SOLVED CIFS share Shadow Copies, no snapshot option

Status
Not open for further replies.

PhilZJ81

Explorer
Joined
Mar 29, 2016
Messages
94
I'm trying to setup Shadow Copies for my CIFS share.

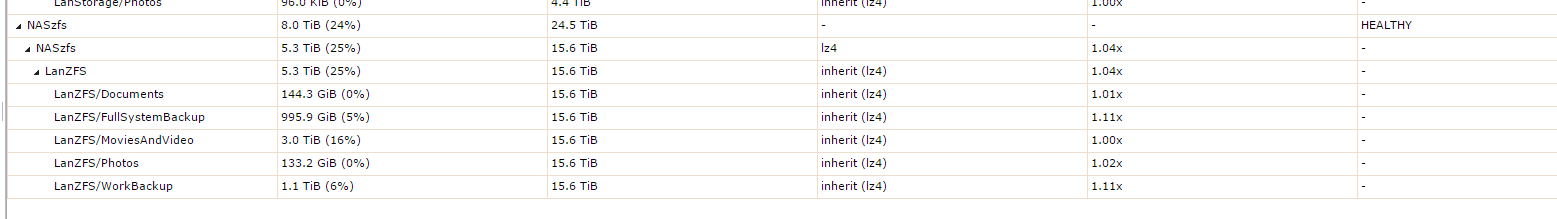

Below is the dataset I've setup the snapshots for.


My snapshot task is for path: NASzfs/LanZFS, with the recursive check box enabled. I honestly would prefer only doing snapshots on my LanZFS/Documents dataset, but my CIFS share is at the LanZFS level, and my understanding was that CIFS and snapshots need to match.

The tutorial in the documentation chapter 10.4.3 then states to go to "Sharing ‣ Windows (CIFS) Shares. Highlight a share and click its “Edit” button then its “Advanced Mode” button. Click the “Periodic Snapshot Task” drop-down menu and select the periodic snapshot task to use for that share". The problem is that I see no such dropdown.

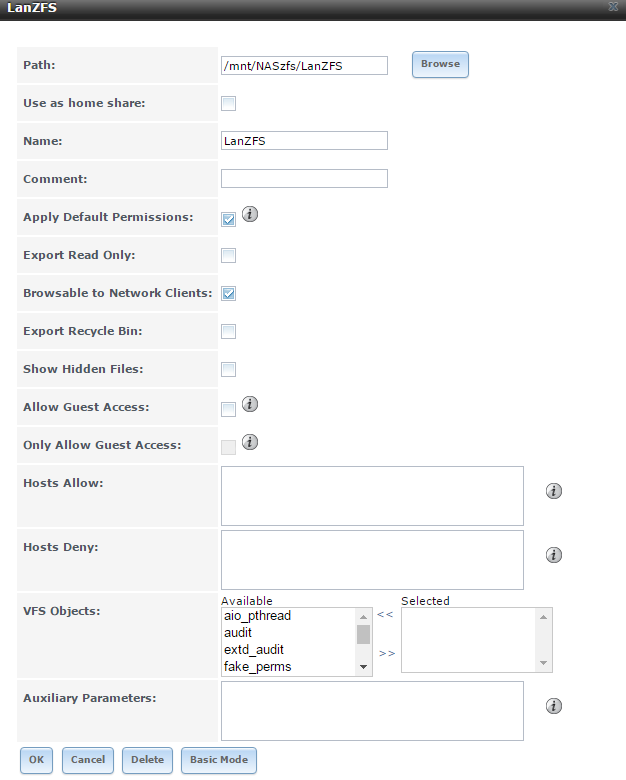

This is all I see in CIFS for that share after clicking the advanced:


Can someone guide me a little please.

thanks in advance


EDIT: updated to state that the version of 9.3 i have is too old for this feature.

Last edited:

cyberjock

Inactive Account
Joined
Mar 25, 2012
Messages
19,526
The dropdown is only available on recent versions of FreeNAS. What version are you using?


PhilZJ81

Explorer
Joined
Mar 29, 2016
Messages
94
The dropdown is only available on recent versions of FreeNAS. What version are you using?

I knew I forgot to say something important... he he he.

I'm running FreeNAS-9.3-STABLE-201412090314


cyberjock

Inactive Account
Joined
Mar 25, 2012
Messages
19,526
Yeah.. upgrade is necessary if you want the dropdown. ;)

That version is crazy old and I'd have upgraded loooong ago. ;)


PhilZJ81

Explorer
Joined
Mar 29, 2016
Messages
94
Yeah.. upgrade is necessary if you want the dropdown. ;)

That version is crazy old and I'd have upgraded loooong ago. ;)

I downloaded the latest ISO from the site about a month ago for 9.3 ( I wasn't brave enough for 9.10). :(

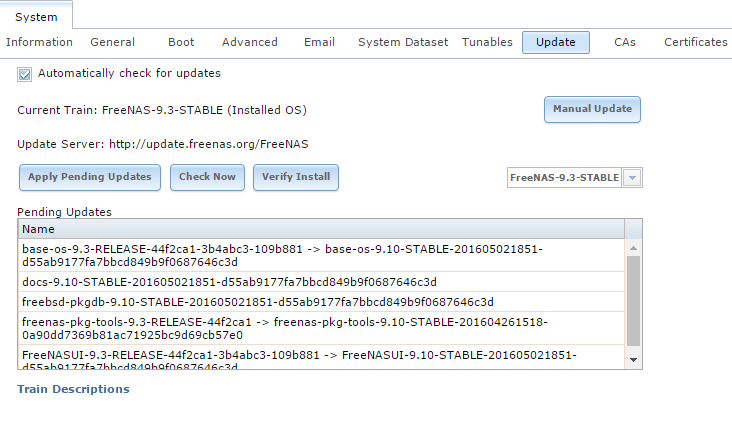

Can you help me out with the update please. Here is what my update screen looks like. It seems to me like all the options there are pushing me towards 9.10, which I tried once and failed.


cyberjock

Inactive Account
Joined
Mar 25, 2012
Messages
19,526
That is trying to update you to 9.10. Click the "Check now" and see if it's trying to update you to 9.3.1. Short of that, just grab the update files from download.freenas.org and do a "manual upgrade" per the manual.


PhilZJ81

Explorer
Joined
Mar 29, 2016
Messages
94
That is trying to update you to 9.10. Click the "Check now" and see if it's trying to update you to 9.3.1. Short of that, just grab the update files from download.freenas.org and do a "manual upgrade" per the manual.

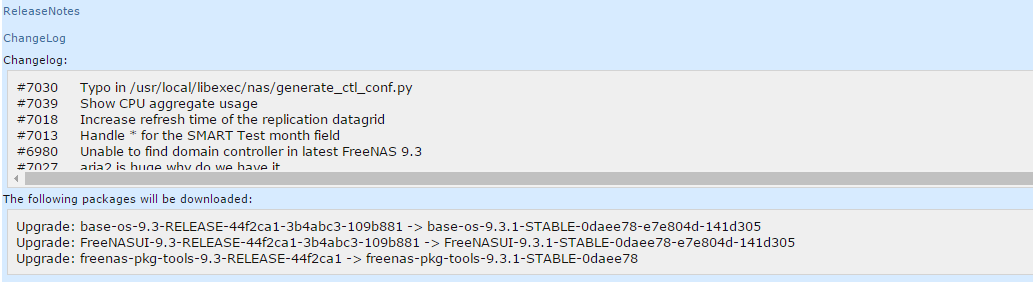

I got a bit more luck with the the files, this it what it's displaying now after doing the 'check now'


I clicked update and as my luck goes it failed. I didn't have much time to look into it. Partially because my day was very busy with a million things and also because I'm very unfamiliar with this environment and the smallest task (such as finding where the log file is located, how to read it... the smallest thing basically) requires some googling.
From what I remember the post screen was saying something about a column didn't exist.

I reverted back to my default boot, so my freeNAS box is working fine at the moment. Is there a way to retrieve the uprade.failed file from the boot that failed without having to actually boot from it?

I'm really grateful for all the help so far. I'd really like to get this shadow copy thing going and after that I think I'll be exactly where I want my NAS to be. I currently have plex going, I've created backups from all the computers on it, so I'm nearly there.


PhilZJ81

Explorer
Joined
Mar 29, 2016
Messages
94
I'm updating this thread to 'solved'. Thanks to Cyberjock's reply, turns out my FreeNAS version is too old.

On the other hand if someone could help me out with updating the version to 9.3.1 and trouble shooting the errors I'm getting, I'd really appreciate it.


cyberjock

Inactive Account
Joined
Mar 25, 2012
Messages
19,526
Well, you have two options to get the update.failed file.

1. Bootup the old boot environment and get the file from there.
2. Mount the old boot environment from the CLI (this is non trivial if you aren't experienced with this kind of thing on ZFS).

I'd do #1 considering your circumstances.
