Boot console is displayed only on a half of screen ( TrueNAS-12.0-U5.1 version )

Joined
Sep 25, 2021
Messages
2
Hello,

I have a problem with a view of true NAS boot console, it somehow displayed only a half of screen.

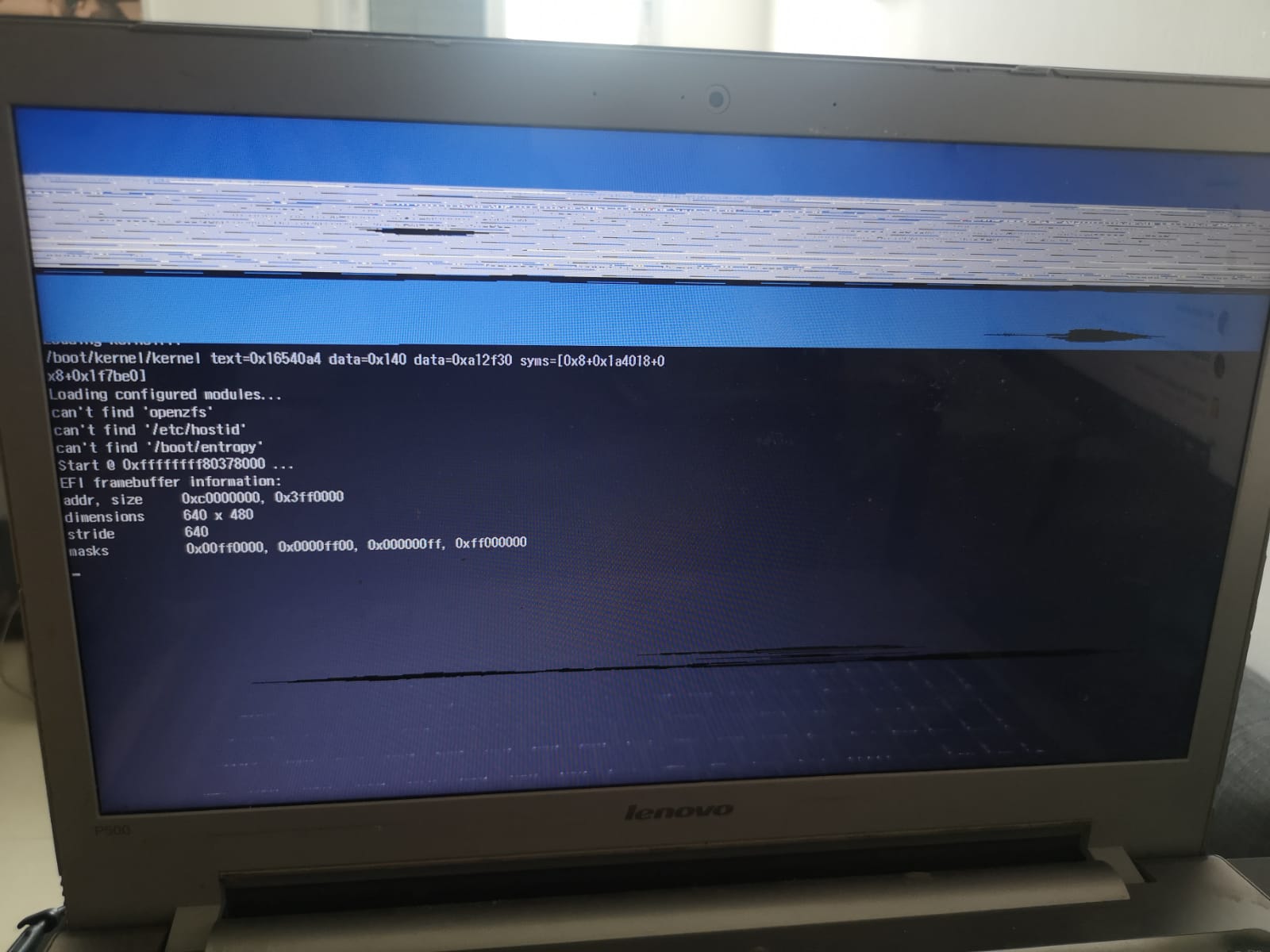

The screen shot is attached.

Please advice how to solve it ?

Regards,
Philip.


Attachments

  • WhatsApp Image 2021-09-26 at 15.33.33.jpeg
    WhatsApp Image 2021-09-26 at 15.33.33.jpeg
    130.5 KB · Views: 176

nascolony

Cadet
Joined
Oct 15, 2021
Messages
1
I ran into the exact same issue with Philip, can anyone please take a look and help, thanks!



Regards,
Omar

Joined
Sep 25, 2021
Messages
2
Hi Omar,

I succeeded to solve the problem.

You have to change default TrueNas screen resolution which is suitable for your screen.
First of all try to go to command line before first installation, you can do it by pressing any button once first screen is loaded, then you will get command line option ( like OK.. )
If I'm not mistaken you need to press "?", then you will get many command options. You need to use"gop or pob" or"cop" do not remember exactly what the name.

Try to read command description.

You will get 5 possible screen resolutions.
Try all of them. One of them have to solve the problem/ My problem solved by option - 3.

Type command "gop or pob" or"cop" "set" [number of you choose].

For example:

1. pob set 3 ( then press enter )
2. boot ( press enter )

After that type "boot" and press enter. Installation will be rebooted and you have to see screen in correct resolution.

If you have any issue, take a picture of you screen and let me know.

Regards,
Philip.
