уменьшился размер диска

Fyodor

Explorer
Joined
Feb 14, 2017
Messages
59
Добрый день,

На BackupArray стоят 4 х 3 ТБ WD Greens. Покупал их уже не новыми, и у меня они еще 2,5 года отвертелись. В общем, ID 9 Power On Hours у всех под 50 тысяч часов. Работали ОК, потом сбой какой-то, может после обновления или после отключения питания, уже не помню, система не грузится и выдает ошибку вот такую:


Сервер для бэкапа, оригиналы на другой машине, так что решил просто переустановить систему на флешку и пересобрать пул. Флешку переписал с 11.2-U7, грузится ОК. Однако, при выборе дисков в Pool/Add три распознаются как 2.73 TiB, а один как 1.87 TiB... Wipe не помогает. Выполняется, но размер не меняется. Смотрел Акронисом, инсталятором Win 10, програмой GParted, - везде все диски выглядят как неразмеченные с теми же объемами. Таблицу разделов удалить нельзя так как ее нет. Диски уже выходят из строя, везде pending сектора есть, менять конечно надо, но как диск мог "ужаться" до 2 ТБ?? И как его вернуть к изначальному размеру? Писал в американский форум, там настоятельно предположили проблему с самим диском и направили к базовому траблшутингу. Но интересно понять что именно случилось то?


mav@

iXsystems
iXsystems
Joined
Sep 29, 2011
Messages
1,428
Когда-то на заре SSD у меня был экземпляр, который я запилил до того, что он похудел на несколько мегабайт, видать исчерпал резерв запасных секторов. Не знаю применимо ли это к HDD, но я уже несколько раз в последнее время слышал он производителей винчестеров, что выход из строя части головок не должен значить выход из строя всего диска -- при частичном отказе должен уменьшаться объем. Но это звучало больше как перспектива, а не дела минувших дней. А что говорит `camcontrol identify adaX`? Может винту с чего-то приснилась активация Host Protected Area или что-то вроде?


Fyodor

Explorer
Joined
Feb 14, 2017
Messages
59
Вот что говорит:
root@BackupArray[~]# camcontrol identify ada1
pass1: <WDC WD30EZRX-00MMMB0 80.00A80> ATA8-ACS SATA 3.x device
pass1: 300.000MB/s transfers (SATA 2.x, UDMA5, PIO 8192bytes)

protocol ATA/ATAPI-8 SATA 3.x
device model WDC WD30EZRX-00MMMB0
firmware revision 80.00A80
serial number WD-WCAWZ0719246
WWN 50014ee2b096f6f7
cylinders 16383
heads 16
sectors/track 63
sector size logical 512, physical 4096, offset 0
LBA supported 268435455 sectors
LBA48 supported 3907073134 sectors
PIO supported PIO4
DMA supported WDMA2 UDMA6
Zoned-Device Commands no

Feature Support Enabled Value Vendor
read ahead yes yes
write cache yes yes
flush cache yes yes
overlap no
Tagged Command Queuing (TCQ) no no
Native Command Queuing (NCQ) yes 32 tags
NCQ Queue Management no
NCQ Streaming no
Receive & Send FPDMA Queued no
SMART yes yes
microcode download yes yes
security yes no
power management yes yes
advanced power management no no
automatic acoustic management yes no 254/0xFE 128/0x80
media status notification no no
power-up in Standby yes no
write-read-verify no no
unload no no
general purpose logging yes yes
free-fall no no
Data Set Management (DSM/TRIM) no
Host Protected Area (HPA) yes yes 3907073134/5860533168
HPA - Security no


mav@

iXsystems
iXsystems
Joined
Sep 29, 2011
Messages
1,428
Ну собственно я похоже угадал: "Host Protected Area (HPA) yes yes 3907073134/5860533168".
Попробуй `camcontrol hpa -qPy -s 5860533168 ada1`.


Fyodor

Explorer
Joined
Feb 14, 2017
Messages
59
camcontrol: subcommand "hpa" requires a valid device identifier


Fyodor

Explorer
Joined
Feb 14, 2017
Messages
59
айдентифайер хочет. Вот все диски:

Code:
root@BackupArray[~]# camcontrol devlist
<WDC WD30EZRX-00MMMB0 80.00A80>    at scbus2 target 0 lun 0 (pass0,ada0)
<WDC WD30EZRX-00MMMB0 80.00A80>    at scbus3 target 0 lun 0 (pass1,ada1)
<WDC WD30EZRX-00MMMB0 80.00A80>    at scbus4 target 0 lun 0 (pass2,ada2)
<WDC WD30EZRX-00MMMB0 80.00A80>    at scbus5 target 0 lun 0 (pass3,ada3)
<Generic Flash Disk 8.07>          at scbus7 target 0 lun 0 (pass4,da0)


Fyodor

Explorer
Joined
Feb 14, 2017
Messages
59
вот вроде сделал:

Code:
root@BackupArray[~]# camcontrol hpa ada1 -qPy -s 5860533168

Feature                      Support  Enabled   Value
Host Protected Area (HPA)      yes      no      5860533168/5860533168
HPA - Security                 no


Fyodor

Explorer
Joined
Feb 14, 2017
Messages
59
и вот теперь:

Code:
root@BackupArray[~]# smartctl -a /dev/ada1
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.2-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Western Digital Green
Device Model:     WDC WD30EZRX-00MMMB0
Serial Number:    WD-WCAWZ0719246
LU WWN Device Id: 5 0014ee 2b096f6f7
Firmware Version: 80.00A80
User Capacity:    3,000,592,982,016 bytes [3.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ATA8-ACS (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 3.0 Gb/s)
Local Time is:    Wed Dec 18 00:18:22 2019 MSK
SMART support is: Available - device has SMART capability.
SMART support is: Enabled


а почему такое произошло??


mav@

iXsystems
iXsystems
Joined
Sep 29, 2011
Messages
1,428
Не знаю. Само не должно. Если только у тебя не какой-то хитрый BIOS/RAID, делающий странное.


Fyodor

Explorer
Joined
Feb 14, 2017
Messages
59

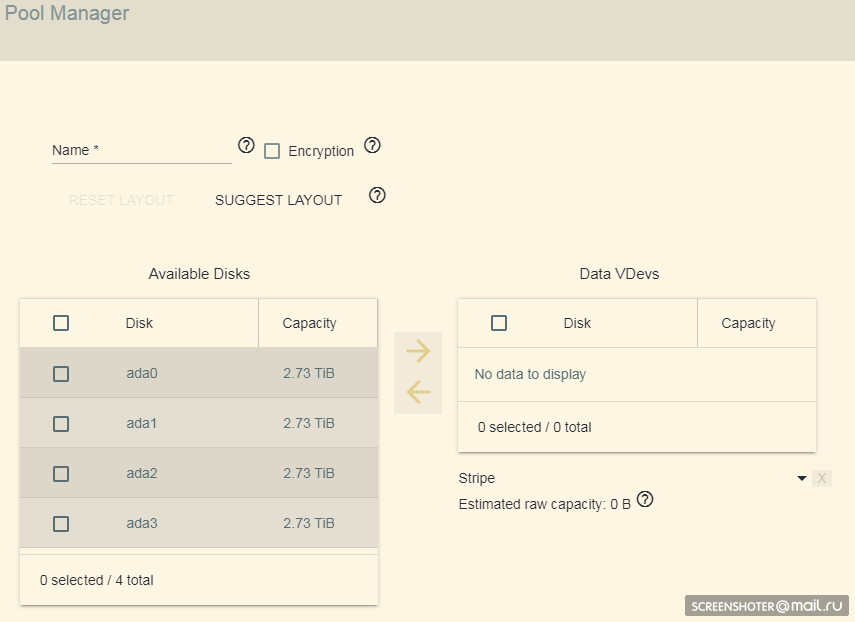

Перезагрузился, можно теперь pool собирать:

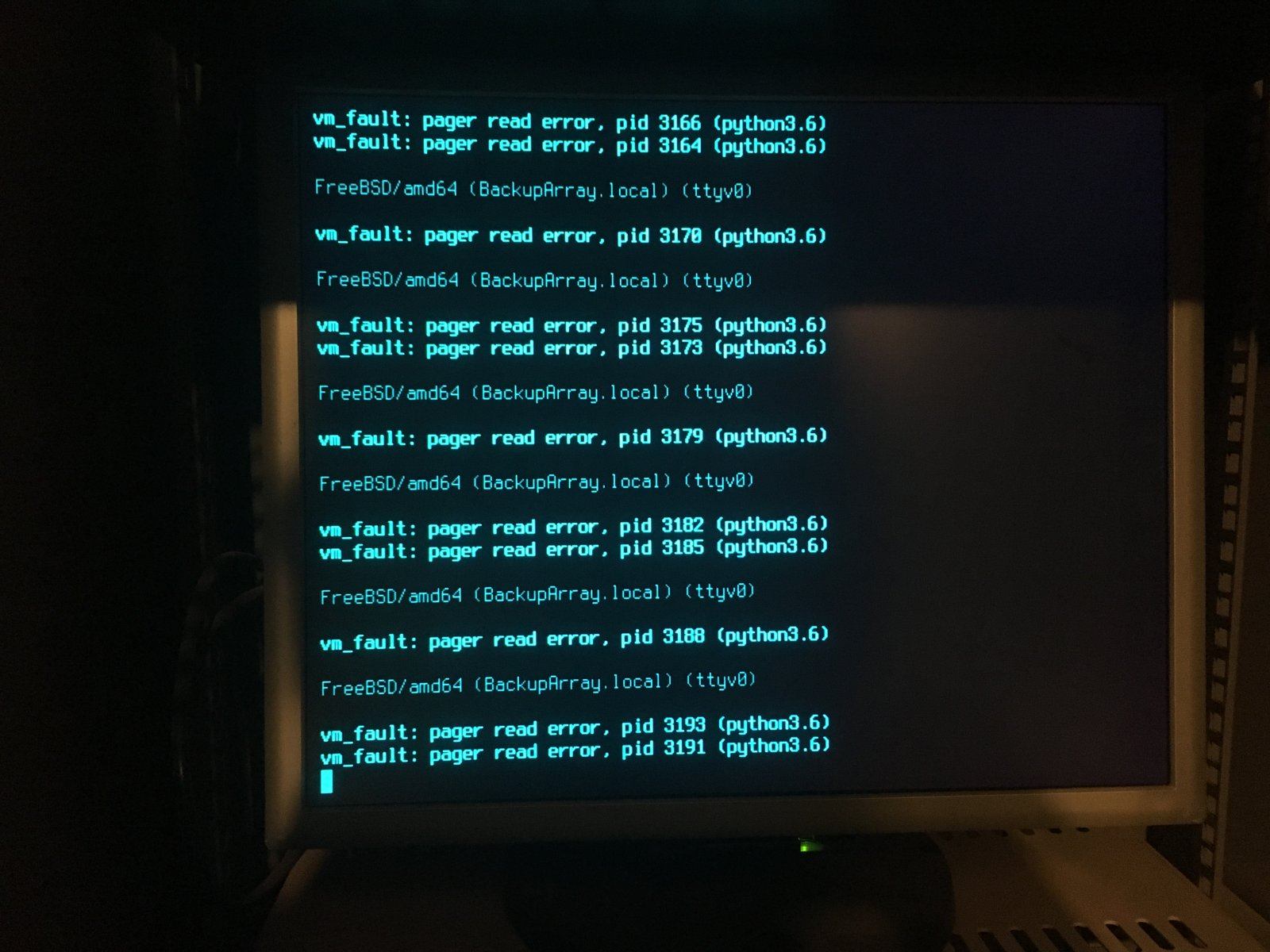

При возникновении сбоев я поменял не только системную флешку, но и материнскую плату (и старая и новая Gigabyte). В новой была батарейка севшая вноль. Может быть это вызвало какие-то проблемы с биосом и плата решила выделить область для его сохранения. Хотя 1 террабайт наверное многовато для такой задачи :) Тогда остается вариант что диск просто сыпется и ОС изолировала эти области...


Fyodor

Explorer
Joined
Feb 14, 2017
Messages
59
теперь на ada0 ругается:
Code:
root@BackupArray[~]# camcontrol hpa ada0 -qPy -s 5860533168
camcontrol: ATA SET_MAX_ADDRESS48 failed: 0

Pool не собирается так как у ada0 размеры Value/Vendor - 5860531055/5860533168, а у всех остальных 5860533168/5860533168


mav@

iXsystems
iXsystems
Joined
Sep 29, 2011
Messages
1,428
`camcontrol hpa` может не работать более одного раза за включение питания. Попробуй выключить/включить. Но это не объясняет что вообще там происходит.


Fyodor

Explorer
Joined
Feb 14, 2017
Messages
59
Да, перегрузился со сбросом питания, и пул собрался ОК. Спасибо за помощь! Так же прогнал лонг тест на всех 4 дисках. Вот вывод smartctl -a
Code:
root@BackupArray[~]# smartctl -a /dev/ada0
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.2-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Western Digital Green
Device Model:     WDC WD30EZRX-00MMMB0
Serial Number:    WD-WCAWZ1452699
LU WWN Device Id: 5 0014ee 25ba5a37f
Firmware Version: 80.00A80
User Capacity:    3,000,591,900,160 bytes [3.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ATA8-ACS (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 3.0 Gb/s)
Local Time is:    Wed Dec 18 21:56:41 2019 MSK
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x85) Offline data collection activity
                                        was aborted by an interrupting command from host.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (52080) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   2) minutes.
Extended self-test routine
recommended polling time:        ( 500) minutes.
Conveyance self-test routine
recommended polling time:        (   5) minutes.
SCT capabilities:              (0x3035) SCT Status supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       0
  3 Spin_Up_Time            0x0027   160   141   021    Pre-fail  Always       -       8991
  4 Start_Stop_Count        0x0032   091   091   000    Old_age   Always       -       9327
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   200   200   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   034   034   000    Old_age   Always       -       48212
 10 Spin_Retry_Count        0x0032   100   100   000    Old_age   Always       -       0
 11 Calibration_Retry_Count 0x0032   100   100   000    Old_age   Always       -       0
 12 Power_Cycle_Count       0x0032   098   098   000    Old_age   Always       -       2006
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       136
193 Load_Cycle_Count        0x0032   185   185   000    Old_age   Always       -       47864
194 Temperature_Celsius     0x0022   123   101   000    Old_age   Always       -       29
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   200   200   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   200   185   000    Old_age   Offline      -       0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline    Completed without error       00%     48210         -
# 2  Extended offline    Completed without error       00%     48154         -
# 3  Short offline       Completed without error       00%     48139         -
# 4  Extended offline    Completed without error       00%     47894         -
# 5  Short offline       Completed without error       00%     47812         -
# 6  Short offline       Completed without error       00%     46734         -
# 7  Short offline       Completed without error       00%     41066         -
# 8  Short offline       Completed without error       00%     40921         -
# 9  Extended offline    Completed without error       00%     40834         -
#10  Short offline       Completed without error       00%     40753         -
#11  Short offline       Completed without error       00%     40514         -
#12  Extended offline    Completed without error       00%     40427         -
#13  Short offline       Completed without error       00%     40346         -
#14  Short offline       Completed without error       00%     40178         -
#15  Extended offline    Completed without error       00%     40045         -
#16  Short offline       Completed without error       00%     39964         -
#17  Short offline       Completed without error       00%     39796         -
#18  Extended offline    Completed without error       00%     39710         -
#19  Short offline       Completed without error       00%     39629         -
#20  Short offline       Completed without error       00%     39389         -
#21  Extended offline    Completed without error       00%     39302         -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.


Code:
root@BackupArray[~]# smartctl -a /dev/ada1
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.2-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Western Digital Green
Device Model:     WDC WD30EZRX-00MMMB0
Serial Number:    WD-WCAWZ0719246
LU WWN Device Id: 5 0014ee 2b096f6f7
Firmware Version: 80.00A80
User Capacity:    3,000,592,982,016 bytes [3.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ATA8-ACS (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 3.0 Gb/s)
Local Time is:    Wed Dec 18 21:57:28 2019 MSK
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x85) Offline data collection activity
                                        was aborted by an interrupting command from host.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      (   0) The previous self-test routine completed
                                        without error or no self-test has ever
                                        been run.
Total time to complete Offline
data collection:                (49200) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   2) minutes.
Extended self-test routine
recommended polling time:        ( 473) minutes.
Conveyance self-test routine
recommended polling time:        (   5) minutes.
SCT capabilities:              (0x3035) SCT Status supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       0
  3 Spin_Up_Time            0x0027   156   142   021    Pre-fail  Always       -       9166
  4 Start_Stop_Count        0x0032   091   091   000    Old_age   Always       -       9692
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   200   200   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   033   033   000    Old_age   Always       -       49476
 10 Spin_Retry_Count        0x0032   100   100   000    Old_age   Always       -       0
 11 Calibration_Retry_Count 0x0032   100   100   000    Old_age   Always       -       0
 12 Power_Cycle_Count       0x0032   098   098   000    Old_age   Always       -       2074
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       151
193 Load_Cycle_Count        0x0032   153   153   000    Old_age   Always       -       142102
194 Temperature_Celsius     0x0022   122   104   000    Old_age   Always       -       30
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       0
198 Offline_Uncorrectable   0x0030   200   200   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   200   200   000    Old_age   Offline      -       0

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline    Completed without error       00%     49473         -
# 2  Extended offline    Completed without error       00%     49418         -
# 3  Extended offline    Completed without error       00%     49156         -
# 4  Short offline       Completed without error       00%     49075         -
# 5  Short offline       Completed without error       00%     47996         -
# 6  Short offline       Completed without error       00%     42329         -
# 7  Short offline       Completed without error       00%     42184         -
# 8  Extended offline    Completed without error       00%     42096         -
# 9  Short offline       Completed without error       00%     42016         -
#10  Short offline       Completed without error       00%     41776         -
#11  Extended offline    Completed without error       00%     41689         -
#12  Short offline       Completed without error       00%     41609         -
#13  Short offline       Completed without error       00%     41441         -
#14  Extended offline    Completed without error       00%     41307         -
#15  Short offline       Completed without error       00%     41226         -
#16  Short offline       Completed without error       00%     41059         -
#17  Extended offline    Completed without error       00%     40972         -
#18  Short offline       Completed without error       00%     40891         -
#19  Short offline       Completed without error       00%     40651         -
#20  Extended offline    Completed without error       00%     40564         -
#21  Short offline       Completed without error       00%     40484         -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.


Fyodor

Explorer
Joined
Feb 14, 2017
Messages
59
Code:
root@BackupArray[~]# smartctl -a /dev/ada2
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.2-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Western Digital Green
Device Model:     WDC WD30EZRX-00MMMB0
Serial Number:    WD-WCAWZ1452902
LU WWN Device Id: 5 0014ee 25ba5a411
Firmware Version: 80.00A80
User Capacity:    3,000,592,982,016 bytes [3.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ATA8-ACS (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 3.0 Gb/s)
Local Time is:    Wed Dec 18 21:58:37 2019 MSK
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x82) Offline data collection activity
                                        was completed without error.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      ( 121) The previous self-test completed having
                                        the read element of the test failed.
Total time to complete Offline
data collection:                (52800) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   2) minutes.
Extended self-test routine
recommended polling time:        ( 507) minutes.
Conveyance self-test routine
recommended polling time:        (   5) minutes.
SCT capabilities:              (0x3035) SCT Status supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       0
  3 Spin_Up_Time            0x0027   159   144   021    Pre-fail  Always       -       9016
  4 Start_Stop_Count        0x0032   091   091   000    Old_age   Always       -       9468
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   200   200   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   035   035   000    Old_age   Always       -       48049
 10 Spin_Retry_Count        0x0032   100   100   000    Old_age   Always       -       0
 11 Calibration_Retry_Count 0x0032   100   100   000    Old_age   Always       -       0
 12 Power_Cycle_Count       0x0032   098   098   000    Old_age   Always       -       2029
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       152
193 Load_Cycle_Count        0x0032   179   179   000    Old_age   Always       -       64931
194 Temperature_Celsius     0x0022   123   100   000    Old_age   Always       -       29
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       1
198 Offline_Uncorrectable   0x0030   200   200   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   200   200   000    Old_age   Offline      -       0

SMART Error Log Version: 1
ATA Error Count: 1140 (device log contains only the most recent five errors)
        CR = Command Register [HEX]
        FR = Features Register [HEX]
        SC = Sector Count Register [HEX]
        SN = Sector Number Register [HEX]
        CL = Cylinder Low Register [HEX]
        CH = Cylinder High Register [HEX]
        DH = Device/Head Register [HEX]
        DC = Device Command Register [HEX]
        ER = Error register [HEX]
        ST = Status register [HEX]
Powered_Up_Time is measured from power on, and printed as
DDd+hh:mm:SS.sss where DD=days, hh=hours, mm=minutes,
SS=sec, and sss=millisec. It "wraps" after 49.710 days.

Error 1140 occurred at disk power-on lifetime: 47961 hours (1998 days + 9 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  40 51 e0 b8 02 40 e0  Error: UNC 224 sectors at LBA = 0x004002b8 = 4195000

  Commands leading to the command that caused the error were:
  CR FR SC SN CL CH DH DC   Powered_Up_Time  Command/Feature_Name
  -- -- -- -- -- -- -- --  ----------------  --------------------
  c8 00 e0 a0 02 40 e0 02      00:04:58.951  READ DMA
  c8 00 e0 a0 02 40 e0 02      00:04:56.431  READ DMA
  c8 00 e0 a0 02 40 e0 02      00:04:53.911  READ DMA
  c8 00 e0 a0 02 40 e0 02      00:04:51.392  READ DMA
  c8 00 e0 a0 02 40 e0 02      00:04:48.870  READ DMA

Error 1139 occurred at disk power-on lifetime: 47961 hours (1998 days + 9 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  40 51 e0 b8 02 40 e0  Error: UNC 224 sectors at LBA = 0x004002b8 = 4195000

  Commands leading to the command that caused the error were:
  CR FR SC SN CL CH DH DC   Powered_Up_Time  Command/Feature_Name
  -- -- -- -- -- -- -- --  ----------------  --------------------
  c8 00 e0 a0 02 40 e0 02      00:04:56.431  READ DMA
  c8 00 e0 a0 02 40 e0 02      00:04:53.911  READ DMA
  c8 00 e0 a0 02 40 e0 02      00:04:51.392  READ DMA
  c8 00 e0 a0 02 40 e0 02      00:04:48.870  READ DMA
  c8 00 e0 a0 00 40 e0 02      00:04:46.350  READ DMA

Error 1138 occurred at disk power-on lifetime: 47961 hours (1998 days + 9 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  40 51 e0 b8 02 40 e0  Error: UNC 224 sectors at LBA = 0x004002b8 = 4195000

  Commands leading to the command that caused the error were:
  CR FR SC SN CL CH DH DC   Powered_Up_Time  Command/Feature_Name
  -- -- -- -- -- -- -- --  ----------------  --------------------
  c8 00 e0 a0 02 40 e0 02      00:04:53.911  READ DMA
  c8 00 e0 a0 02 40 e0 02      00:04:51.392  READ DMA
  c8 00 e0 a0 02 40 e0 02      00:04:48.870  READ DMA
  c8 00 e0 a0 00 40 e0 02      00:04:46.350  READ DMA
  c8 00 e0 a0 00 40 e0 02      00:04:43.831  READ DMA

Error 1137 occurred at disk power-on lifetime: 47961 hours (1998 days + 9 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  40 51 e0 b8 02 40 e0  Error: UNC 224 sectors at LBA = 0x004002b8 = 4195000

  Commands leading to the command that caused the error were:
  CR FR SC SN CL CH DH DC   Powered_Up_Time  Command/Feature_Name
  -- -- -- -- -- -- -- --  ----------------  --------------------
  c8 00 e0 a0 02 40 e0 02      00:04:51.392  READ DMA
  c8 00 e0 a0 02 40 e0 02      00:04:48.870  READ DMA
  c8 00 e0 a0 00 40 e0 02      00:04:46.350  READ DMA
  c8 00 e0 a0 00 40 e0 02      00:04:43.831  READ DMA
  c8 00 e0 a0 00 40 e0 02      00:04:41.311  READ DMA

Error 1136 occurred at disk power-on lifetime: 47961 hours (1998 days + 9 hours)
  When the command that caused the error occurred, the device was active or idle.

  After command completion occurred, registers were:
  ER ST SC SN CL CH DH
  -- -- -- -- -- -- --
  40 51 e0 b8 02 40 e0  Error: UNC 224 sectors at LBA = 0x004002b8 = 4195000

  Commands leading to the command that caused the error were:
  CR FR SC SN CL CH DH DC   Powered_Up_Time  Command/Feature_Name
  -- -- -- -- -- -- -- --  ----------------  --------------------
  c8 00 e0 a0 02 40 e0 02      00:04:48.870  READ DMA
  c8 00 e0 a0 00 40 e0 02      00:04:46.350  READ DMA
  c8 00 e0 a0 00 40 e0 02      00:04:43.831  READ DMA
  c8 00 e0 a0 00 40 e0 02      00:04:41.311  READ DMA
  c8 00 e0 a0 00 40 e0 02      00:04:38.791  READ DMA

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline    Completed: read failure       90%     48038         2319459928
# 2  Extended offline    Completed: read failure       90%     47983         2319459928
# 3  Short offline       Completed: read failure       90%     47960         4194472
# 4  Extended offline    Completed without error       00%     47882         -
# 5  Short offline       Completed without error       00%     47800         -
# 6  Short offline       Completed without error       00%     46721         -
# 7  Short offline       Completed without error       00%     41054         -
# 8  Short offline       Completed without error       00%     40908         -
# 9  Extended offline    Completed without error       00%     40822         -
#10  Short offline       Completed without error       00%     40741         -
#11  Short offline       Completed without error       00%     40501         -
#12  Extended offline    Completed without error       00%     40415         -
#13  Short offline       Completed without error       00%     40333         -
#14  Short offline       Completed without error       00%     40166         -
#15  Extended offline    Completed without error       00%     40032         -
#16  Short offline       Completed without error       00%     39951         -
#17  Short offline       Completed without error       00%     39784         -
#18  Extended offline    Completed without error       00%     39697         -
#19  Short offline       Completed without error       00%     39616         -
#20  Short offline       Completed without error       00%     39376         -
#21  Extended offline    Completed without error       00%     39290         -

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.


Fyodor

Explorer
Joined
Feb 14, 2017
Messages
59
Code:
root@BackupArray[~]# smartctl -a /dev/ada3
smartctl 6.6 2017-11-05 r4594 [FreeBSD 11.2-STABLE amd64] (local build)
Copyright (C) 2002-17, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Model Family:     Western Digital Green
Device Model:     WDC WD30EZRX-00MMMB0
Serial Number:    WD-WCAWZ0764777
LU WWN Device Id: 5 0014ee 205ec2969
Firmware Version: 80.00A80
User Capacity:    3,000,592,982,016 bytes [3.00 TB]
Sector Sizes:     512 bytes logical, 4096 bytes physical
Device is:        In smartctl database [for details use: -P show]
ATA Version is:   ATA8-ACS (minor revision not indicated)
SATA Version is:  SATA 3.0, 6.0 Gb/s (current: 3.0 Gb/s)
Local Time is:    Wed Dec 18 22:01:06 2019 MSK
SMART support is: Available - device has SMART capability.
SMART support is: Enabled

=== START OF READ SMART DATA SECTION ===
SMART overall-health self-assessment test result: PASSED

General SMART Values:
Offline data collection status:  (0x85) Offline data collection activity
                                        was aborted by an interrupting command from host.
                                        Auto Offline Data Collection: Enabled.
Self-test execution status:      ( 121) The previous self-test completed having
                                        the read element of the test failed.
Total time to complete Offline
data collection:                (50160) seconds.
Offline data collection
capabilities:                    (0x7b) SMART execute Offline immediate.
                                        Auto Offline data collection on/off support.
                                        Suspend Offline collection upon new
                                        command.
                                        Offline surface scan supported.
                                        Self-test supported.
                                        Conveyance Self-test supported.
                                        Selective Self-test supported.
SMART capabilities:            (0x0003) Saves SMART data before entering
                                        power-saving mode.
                                        Supports SMART auto save timer.
Error logging capability:        (0x01) Error logging supported.
                                        General Purpose Logging supported.
Short self-test routine
recommended polling time:        (   2) minutes.
Extended self-test routine
recommended polling time:        ( 482) minutes.
Conveyance self-test routine
recommended polling time:        (   5) minutes.
SCT capabilities:              (0x3035) SCT Status supported.
                                        SCT Feature Control supported.
                                        SCT Data Table supported.

SMART Attributes Data Structure revision number: 16
Vendor Specific SMART Attributes with Thresholds:
ID# ATTRIBUTE_NAME          FLAG     VALUE WORST THRESH TYPE      UPDATED  WHEN_FAILED RAW_VALUE
  1 Raw_Read_Error_Rate     0x002f   200   200   051    Pre-fail  Always       -       0
  3 Spin_Up_Time            0x0027   158   143   021    Pre-fail  Always       -       9058
  4 Start_Stop_Count        0x0032   091   091   000    Old_age   Always       -       9738
  5 Reallocated_Sector_Ct   0x0033   200   200   140    Pre-fail  Always       -       0
  7 Seek_Error_Rate         0x002e   200   200   000    Old_age   Always       -       0
  9 Power_On_Hours          0x0032   032   032   000    Old_age   Always       -       49787
 10 Spin_Retry_Count        0x0032   100   100   000    Old_age   Always       -       0
 11 Calibration_Retry_Count 0x0032   100   100   000    Old_age   Always       -       0
 12 Power_Cycle_Count       0x0032   098   098   000    Old_age   Always       -       2078
192 Power-Off_Retract_Count 0x0032   200   200   000    Old_age   Always       -       129
193 Load_Cycle_Count        0x0032   144   144   000    Old_age   Always       -       169999
194 Temperature_Celsius     0x0022   122   099   000    Old_age   Always       -       30
196 Reallocated_Event_Count 0x0032   200   200   000    Old_age   Always       -       0
197 Current_Pending_Sector  0x0032   200   200   000    Old_age   Always       -       1
198 Offline_Uncorrectable   0x0030   200   200   000    Old_age   Offline      -       0
199 UDMA_CRC_Error_Count    0x0032   200   200   000    Old_age   Always       -       0
200 Multi_Zone_Error_Rate   0x0008   200   200   000    Old_age   Offline      -       1

SMART Error Log Version: 1
No Errors Logged

SMART Self-test log structure revision number 1
Num  Test_Description    Status                  Remaining  LifeTime(hours)  LBA_of_first_error
# 1  Extended offline    Completed: read failure       90%     49776         1458989584
# 2  Extended offline    Completed without error       00%     49729         -
# 3  Extended offline    Completed: read failure       90%     49459         1458989588
# 4  Short offline       Completed without error       00%     49387         -
# 5  Short offline       Completed: read failure       90%     48308         1458989584
# 6  Short offline       Completed without error       00%     42641         -
# 7  Short offline       Completed without error       00%     42496         -
# 8  Extended offline    Completed without error       00%     42409         -
# 9  Short offline       Completed without error       00%     42328         -
#10  Short offline       Completed without error       00%     42088         -
#11  Extended offline    Completed without error       00%     42001         -
#12  Short offline       Completed without error       00%     41921         -
#13  Short offline       Completed without error       00%     41753         -
#14  Extended offline    Completed without error       00%     41619         -
#15  Short offline       Completed without error       00%     41538         -
#16  Short offline       Completed without error       00%     41371         -
#17  Extended offline    Completed without error       00%     41284         -
#18  Short offline       Completed without error       00%     41203         -
#19  Short offline       Completed without error       00%     40964         -
#20  Extended offline    Completed without error       00%     40876         -
#21  Short offline       Completed without error       00%     40796         -
2 of 3 failed self-tests are outdated by newer successful extended offline self-test # 2

SMART Selective self-test log data structure revision number 1
 SPAN  MIN_LBA  MAX_LBA  CURRENT_TEST_STATUS
    1        0        0  Not_testing
    2        0        0  Not_testing
    3        0        0  Not_testing
    4        0        0  Not_testing
    5        0        0  Not_testing
Selective self-test flags (0x0):
  After scanning selected spans, do NOT read-scan remainder of disk.
If Selective self-test is pending on power-up, resume after 0 minute delay.


Fyodor

Explorer
Joined
Feb 14, 2017
Messages
59
Что порекомендуете с ними делать? Выкинуть сразу, или поработают еще?


CrashX

Explorer
Joined
Apr 16, 2013
Messages
63
Load_Cycle_Count
парковка частая у них,в остальном диски как диски 50к часов это не предел, у меня есть и поболее
парковки убивают бошки

в остальном диски в порядке, НО если есть время прогнать Victoria под DOS было б не лишним
и отключить паркуовку каждые 15-30 сек или выставить "правильный" таймер, но лучше отключить и передать это ОС
утилита под DOS wdidle3

у меня вот герой есть, сервера его уже не берут, там GSensor сработал, а тут ничего работает
Model: MM1000EBKAF; Capacity: 1953525168 LBAs; SN: 9XG021SC; FW: HPG0
7 Seek error rate 71 60 30 34465498393 •••

вот еще
под видеонаблюдение стоял около 7 лет, теперь у меня в домашнем компе доживает )
Model: ST32000542AS; Capacity: 3907029168 LBAs; SN: 9XW09JZE; FW: CC35
9 Power-on time 43 43 0 50630 ••
240 Head flying hours 100 253 0 52231097342559 •••••


Fyodor

Explorer
Joined
Feb 14, 2017
Messages
59
Спасибо за советы, CrashX. Я запускал утилиту wdidle3 когда устанавливал диски впервые чтобы отключить парковку. Сейчас на двух дисках
Load_Cycle_Count под 150 000, в то время как на двух других около 50 000. Надо повторить и проверить. Сейчас прогоняю badblocks в 3 прохода чтобы встряхнуть диски. Потом посмотрю smartctl output. Сделаю снова wdidle3. Ну и тогда надо решать, менять их или оставить пока. Если менять, то минимум на 6-ки, если брать 3 шт б/у, а лучше 4 шт чтобы RaidZ2 сделать, то это 20-25 тыс руб затрат.


CrashX

Explorer
Joined
Apr 16, 2013
Messages
63
Load_Cycle_Count примерно должен быть равен количеству запусков PowerOn +/- 10%

если возможно поставить больше дисков то лучше
6x4Tb чем 4x6Tb


Fyodor

Explorer
Joined
Feb 14, 2017
Messages
59
если возможно поставить больше дисков то лучше
6x4Tb чем 4x6Tb
почему?? Больше дисков - больше вероятности отказа

Top
